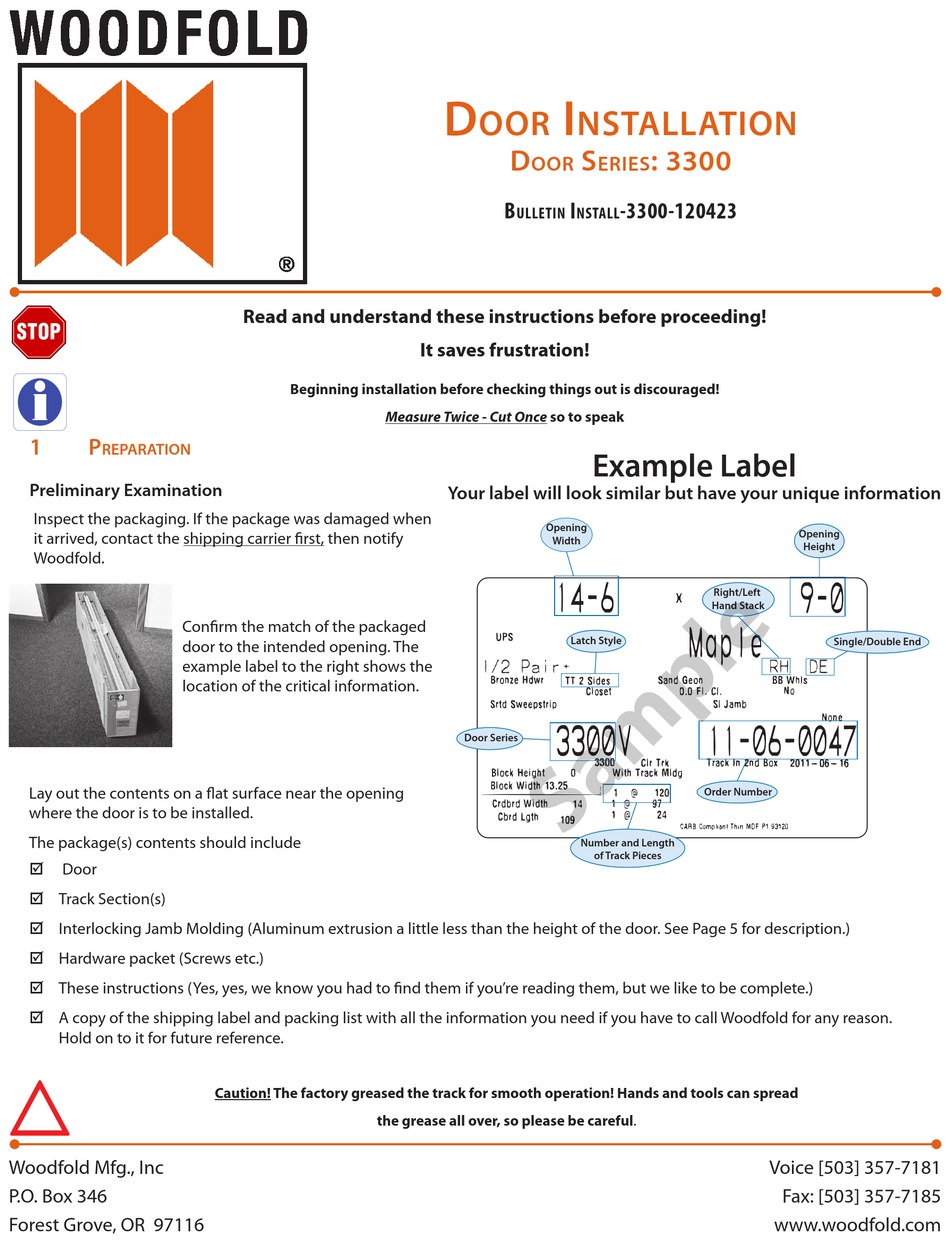

1
P
reParatIon
Preliminary Examination
Inspect the packaging. If the package was damaged when
it arrived, contact the shipping carrier first, then notify
Woodfold.
Confirm the match of the packaged
door to the intended opening. The
example label to the right shows the
location of the critical information.
Lay out the contents on a flat surface near the opening
where the door is to be installed.
The package(s) contents should include
Door
;
; Track Section(s)
; Interlocking Jamb Molding (Aluminum extrusion a little less than the height of the door. See Page 5 for description.)
; Hardware packet (Screws etc.)
; These instructions (Yes, yes, we know you had to find them if you're reading them, but we like to be complete.)
; A copy of the shipping label and packing list with all the information you need if you have to call Woodfold for any reason.
Hold on to it for future reference.
Woodfold Mfg., Inc
P.O. Box 346
Forest Grove, OR 97116
Read and understand these instructions before proceeding!
Beginning installation before checking things out is discouraged!
Measure Twice - Cut Once so to speak
Caution! The factory greased the track for smooth operation! Hands and tools can spread
the grease all over, so please be careful.
D
I
oor
nstallatIon
D
s
oor
erIes
B
i
ulletin
nstall
It saves frustration!
Example Label
Your label will look similar but have your unique information
Opening
Width
Latch Style
Door Series
Number and Length
of Track Pieces
: 3300
-3300-120423
Opening
Right/Left
Hand Stack
Order Number
Voice [503] 357-7181
Fax: [503] 357-7185
www.woodfold.com
Height
Single/Double End
Advertisement
Table of Contents
Related Manuals for Woodfold 3300 Series
Summary of Contents for Woodfold 3300 Series
- Page 1 ; These instructions (Yes, yes, we know you had to find them if you’re reading them, but we like to be complete.) ; A copy of the shipping label and packing list with all the information you need if you have to call Woodfold for any reason.
- Page 2 If the track is too short by more than ½”, contact your dealer or Woodfold. Need for alignment pins depends on the number of track sections. Short tracks with a single section will not have align- ment pins.
- Page 3 Important: Power Screw Drivers: Check the length of your #2 Phillips Bit. It needs to extend at least 1¼” past the chuck. Any shorter and the chuck may tear up the track or the screw won’t seat. It falls into the frustrating category when you have to order a new track.
- Page 4 This next section is most critical. Improperly installing the wall/jamb Mount results in the majority of trouble calls to Woodfold. Repeat after me: I will read this section. I will read this section. Post Mount all or ountIng ystems If your door is single ended (SE) or a pair (see the top of Page 2) you need to read this Section.
- Page 5 OK! Here comes the critical step. You just marked the wall at the top and bottom of the mounting panel edge with the door stacked. Now, extend the door to have access to the Mounting Panel. Hold the Mounting Panel edge at the pencil marks at both top and bottom! Caution! Take care when attaching the Mounting Panel to the wall.
- Page 6 The hinge system may be stiff initially and will gradually ease after a period of time with regular use • During normal use of your Woodfold door watch for instances of binding during movement. If there is binding, inspect the •...
