AssetScan ASB01 Instructions

Hardware Setup Instructions
Bearing Fault Transmitter - Model ASB01
IMPORTANT: The ATEK Customer Care Team (CCT) is ready to
assist with any setup help necessary to fully utilize the AssetScan
Transmitter. Site and contact information is needed before data is
properly managed by the ATEK Intelligence Platform (AIP).
CCT Technical Support: 877-847-7226 or email CCT@assetscan.com

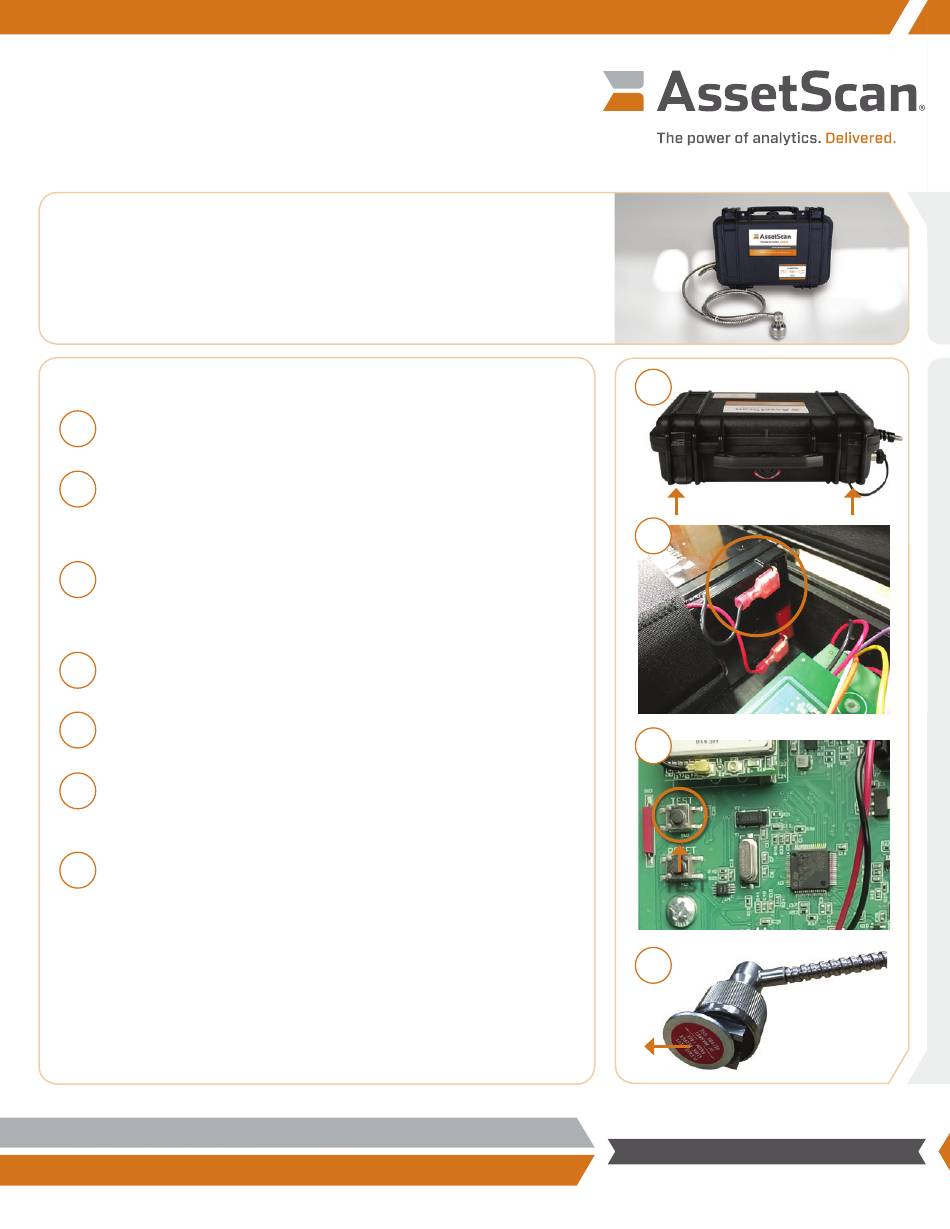

Setting up the Transmitter

Open transmitter case by pulling up on two latches on front of case.
1
Connect black wire to negative (top) battery terminal as shown. Ensure
2
red wire is seated on positive terminal.
Green LEDs on board will begin to light up.
Wait 2 minutes after plugging in battery then press TEST button on board.
3
Transmitter will go through a data collection cycle that will last for 10
minutes before reverting to normal operation.
Call ATEK Technical Support at 877-847-7226 to ensure transmitter has
4
communicated with AIP or login if access is already available.
Shut and latch lid.
5
Connect accelerometer to ASB01 case by aligning cable connector with
6
case connector. Tighten collar until snug.
Slide washer off end of accelerometer located on end of armored cable.
7
1
2
3
TEST
7
www.assetscan.com
