studiobricks One Assembling Manual

Hide thumbs Also See for One:
Table of Contents

Advertisement

Quick Links

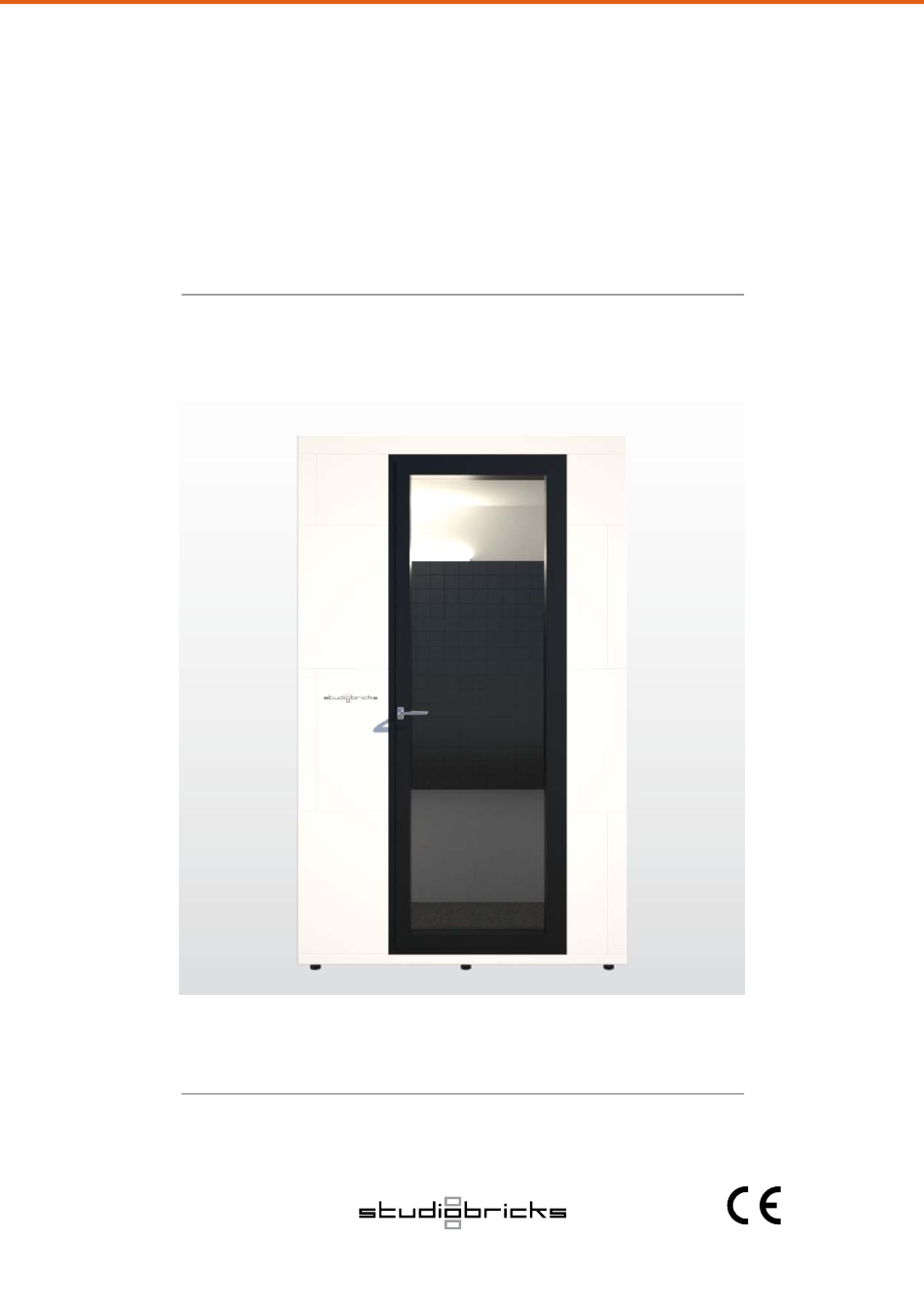

One, One Plus
One, One Plus
& One Plus XXL
& One Plus XXL
Assembling guide
Last update | May 2020
The Booth

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the One and is the answer not in the manual?

Questions and answers

Related Manuals for studiobricks One

Summary of Contents for studiobricks One

  • Page 1 One, One Plus One, One Plus & One Plus XXL & One Plus XXL Assembling guide Last update | May 2020 The Booth...

  • Page 2: Table Of Contents

    INDEX 1. INTRODUCTION ........................3 2. WARNINGS ..........................4 3. BEFORE ASSEMBLY ....................... 6 3.1. Correct delivery ....................6 3.2. Correct unpacking ..................6 3.3. Material ......................7 3.4. Tools you need ....................9 4. ORGANIZATION OF ASSEMBLY ..................10 5.
  • Page 3 You will probably need about two to three hours for the assembly. The warranty for the STUDIOBRICKS cabins is two years, from delivery date. Accessories like ventilator, LED light or triple socket have a warranty of one year, except in case of vandalism.

  • Page 4: Warnings

    2. WARNINGS The frame and the floor come together, make sure to separate them before you start assembling. Floor and ceiling Frame and floor packed together ready to start the inside the box assembling...
  • Page 5 2. WARNINGS Your Studiobricks booth will Caution, if you open the box from arrive in a box. the incorrect side parts may fall out. NOTE! If you detect any damages Please remove the staples from on the box during delivery please...

  • Page 6: Before Assembly

    3. BEFORE THE ASSEMBLY 3.1. Correct delivery Your Studiobricks booth will arrive in a box. If you detect any damages on the box during delivery please record these damages on the shipping documents. If you don´t report this on the shipping documents upon delivery, the insurance company will not refund damages.

  • Page 7: Material

    • Door • Bricks • Roof Elements • Floor elements • Roof absorbers • Additional wall absorbers • Ventilator • Cable Port • LED light • LED light cable • Door handle • Silent Blocks 7 (ONE) 7 (ONE Plus) 9 (ONE Plus XXL) • Vent panel • Wooden plates 5 (ONE) 7 (ONE Plus) 9 (ONE Plus XXL) • Triple socket • Rubber pads...
  • Page 8 3. BEFORE THE ASSEMBLY Bricks Floor Roof Roof LED light Floor Door Rubber pads Silent Blocks Wood Plates Ventilator Triple socket Vent panel Cable port LED light cable White lacquer...

  • Page 9: Tools You Need

    3. BEFORE THE ASSEMBLY Absorbers Battens 3.4. Tools you need To build the Studiobricks ONE you will need the following tools: a rubber mallet, a cut- ter, a screwdriver, a spirit level and a step- ladder.

  • Page 10: Organization Of Assembly

    Do everything calmly. Be careful with your fingers. The Studiobricks pieces do not cut but they are heavy. While slotting the pieces be careful. The door is the heaviest part. Know that absolutely no part of the cabin...
  • Page 11 4. ORGANIZATION OF ASSEMBLY The cabin is built of small panels which are slopped together. The panels are built of special sound isolation materials. Every panel is labelled with a position number. You will find the number on top of each panel.

  • Page 12: Assembly Of The Structure Of Your Cabin

    First, put in the silent blocks into the holes underneath the floor level. Then you need to level the floor panel by adjusting the feet. Put one of the provided wood plate underneath each silent block to pre- vent them form staining the floor over the years.

  • Page 13: Level A & B

    5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN 5.2. Level A & B You can now start building the walls. Start with panel number A1. “A” stands for the level. “1” indicates the panel number. Panel A1 is located left to where the door will be.
  • Page 14 5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN Once you´ve completed level A except for panels A4 and A5, you put in the floor panel with the carpet on it. Like the wall panels the floor panel is made of sound isolating materials to prevent sound from escaping downwards.
  • Page 15 5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN There are 3 types of corner batten. The longest corner batten goes to the left of where the door will be. The second longest goes to the right of the door. The shorter ones go to the back of the booth.
  • Page 16 5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN You can now add the A4, B1, B2 and B3 panels. As for the A level, insert the vertical bat- tens and the battens on the B level.

  • Page 17: Door Installation

    5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN 5.3. Door installation You are now ready to put the door in position. The door is the heaviest part of the room. Try to get an extra pair of hands to help you.
  • Page 18 5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN Once you´ve put the door in place you can insert panel number A5 and the corner batten. Next insert panels B4 and B5.

  • Page 19: Level C & D

    5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN 5.4. Level C & D You can now go on and complete levels C and D. D is the top level. It´s easiest if you do level C in an anti-clockwise direction.
  • Page 20 5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN Then do level D in a clockwise direction. You might need a small step-ladder for this.

  • Page 21: Roof

    5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN 5.5. Roof Put the ceiling in position. The ceiling is in two parts. First place the larger panel so that it engages with the horizontal battens and that they slot in, then slot the smaller inner panel into the cutaway frame cre- ated by the larger panel.
  • Page 22 5. ASSEMBLY OF THE STRUCTURE OF YOUR CABIN Make sure that the ventilation grille is on the left side entering the cabin. If not, you will have to turn this piece in case you add an additional basstrap. The structure of your Studiobricks ONE cabin is now complete.

  • Page 23: Installation Of Accessories

    6. INSTALLATION OF ACESSORIES 6.1. Doorhandle The doorhandle comes in a package. It has two parts: the base and a removable lid that you must remove for the installation. In order to move it easily pull it up with your fingernails. First, turn the lid to 90°as shown in the picture.
  • Page 24 6. INSTALLATION OF ACESSORIES Then, insert the metal bar into the door hole in the correct position, as shown in the picture (seen from the inside). Fix the base of the doorhandle to the little metal bar on the door. Then, x it with the provided screws. Fi- nally, turn the lid back to its initial position.

  • Page 25: Cable Ports

    6. INSTALLATION OF ACESSORIES 6.2. Cableport The cable port sits on the outer side of panel A2. Here´s how to fit the cable port. First put in the white ring into the hole. You might need the rubber hammer to get it fully into the hole.
  • Page 26 6. INSTALLATION OF ACESSORIES Before inserting the tunnel plate, cover the conduct with the piece of foam, as shown in the pictures. You can now insert the tunnel plate. Next screw the tunnel plate on the cabin with the hole to the upper side like this. There are pilot holes to show you where to put the screws provided.
  • Page 27 6. INSTALLATION OF ACESSORIES Close the hole from the inside with the little wall plate. Lastly, insert the the hole ring and the cable pass on the exterior of the cabin.

  • Page 28: Ventilation Installation

    6. INSTALLATION OF ACESSORIES 6.3. Ventilator installation The ventilator sits inside the booth. To install it put the two provided screws into the pilot holes and tighten them leav- ing half a centimetre stand out like this. Fix the ventilator to the wall. The two small white air vents sit on the top and bottom of the cabin.

  • Page 29: Absorbers

    6. INSTALLATION OF ACESSORIES 6.4. Absorbers You can now start to put the absorbers up on the wall on the inside of the room. The absorbers come with an adhesive re- verse side. Simply peel the wrapper off the back. Lastly, insert the the hole ring and the cable pass on the exterior of the cabin.

  • Page 30: Led Light

    6. INSTALLATION OF ACESSORIES 6.5. LED light Finally, you carefully take the LED light out of its packaging, take off the paper of the adhesive film and fix the light inside the cabin right above the door or whereev- er you want to have it. The two small white air vents sit on the top and bottom of the cabin.
  • Page 31 6. INSTALLATION OF ACESSORIES You hide the cable of the lamp between the absorber like this.

  • Page 32: Lacquer

    6. INSTALLATION OF ACESSORIES 6.6. Lacquer We provide you with a little bottle of lacquer in case you need to fix some small scratches which can occur during assem- bling.
  • Page 33 Now you are ready to start using your Studiobricks ONE.
  • Page 34 Last update | May 2020 The Booth...

This manual is also suitable for:

One plusOne plus xxl
