ASSEMBLY INSTRUCTIONS

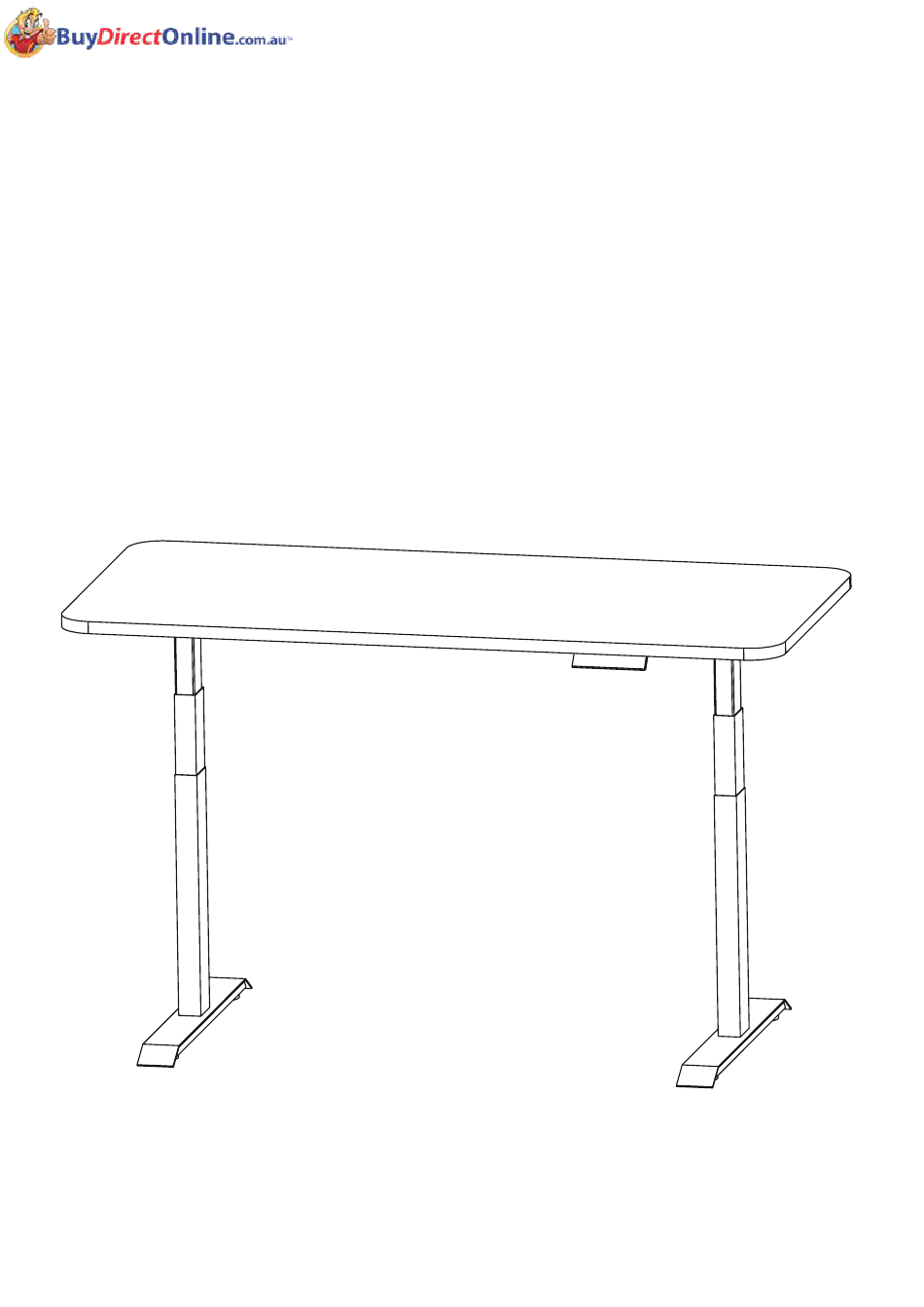

ELECTRIC HEIGHT ADJUSTABLE DESK

Advertisement

loading
Need help?

Need help?

Do you have a question about the ELECTRIC HEIGHT ADJUSTABLE DESK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SHW ELECTRIC HEIGHT ADJUSTABLE DESK

  • Page 1 Phone: 1300 313 495 ASSEMBLY INSTRUCTIONS ELECTRIC HEIGHT ADJUSTABLE DESK...
  • Page 2 Need Two Or More People To Complete Assemble Item On a Clean Flat Surface - Please check you have all hardware before assembling. - Please ensure you have the name of the item and hardware part required and quantity. - Please contact us by mail, if you have any questions, and we will reply you ASAP. - Enjoy your new purchase!
  • Page 3 No. Product Name QTY Left Base Left Leg Right Base Right Leg Cable tray Foot Beam Bracket Display Desktop Controller M6x15 M8x40 M4x10 M5x20 M4x15 Pre-Assembled Segments Maximum Maximum Adjustable Duty Foot Horizontal Speed Load rate power Height Cycle Specification 2 Minutes On, 1100-1700mm 18 Minutes...
  • Page 4 Both Legs assembling,fix the base and leg with M6 screws(Pre-assembled).
  • Page 5 1. Loose screw 2. Adjust to the appropriate width 3. Tighten the screws (recommended 15cm from the side of the desktop)
  • Page 6 M8x40 Let two legs stand in right place, then fix the abeam on legs with M8 screws. Fix the brackets with M8 screws...
  • Page 7: Desktop Installation

    M5x20 DX12 Desktop Installation Controller Box Installation...
  • Page 8 M1 M2 Put the control box in the cable tray. -insert the motor plug in M1 M2 -insert the control panel plug in HS -insert the poweer plug in AC...
  • Page 9 M4x10 Install four wire slot boards Optional assemble ways: sharp screws in any position you like Fix the control panel under the tablee. You may also install it on other position with self-tapping screws.
  • Page 10 Function Button operation instruction In the condition of “E10, E20 and E60” or basic position mode, long press 3 seconds, loosen it until it shows “rES”, Reset the desk runs to the bottom and rebounds to certain height, reset finishes and shows lowest position height. Manu-up Press and display real height...
  • Page 11 Protection mode (auto- lock screen mode) Instruction Function Hot: it alarms when continuous working 2 minutes; clear automatically after resting 18 minutes. Over-heating protection E1: It alarms when motor hall value cannot be inspected; clear it after press reset or re-power on. Sensorless alarm E2: overload alarm when running up, clear automatically after 3 seconds;...
