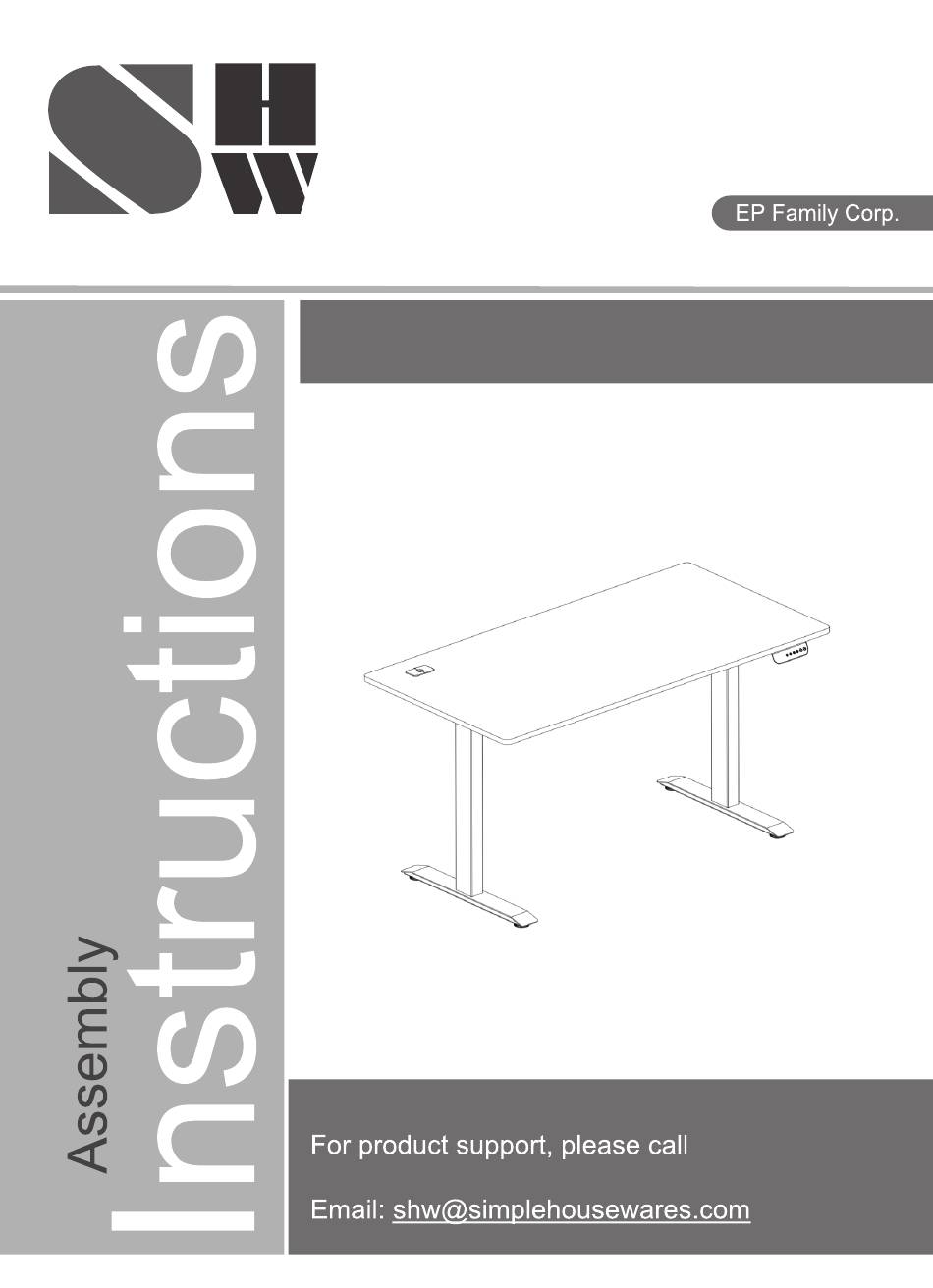

- Page 1 SHW 55-Inch Electric Height Adjustable Desk Model : OD-09A#ZR03 Toll Free: +1-800-349-0716...
- Page 2 Do not climb, sit or stand on this piece of fumiture - 1 -...
- Page 3 - 2 -...
-
Page 4: Hardware Identification
Identify all the components Right Leg Without Left Leg With Base (x2) Side Connector (x2) Side Supporting Motor (x1) Motor (x1) Bracket (x2) Power Supply Motor Desk Top Front (x1) Motor Rod (x1) Holder (x1) Connector (x1) Desk Top Rear (x1) Controller (x1) Cable (x1) Power Supply (x1) - Page 5 Step 1 M6x16 Screws (x8) 4mm Allen Wrench (x1) Step 2 M6x16 Screws (x8) 4mm Allen Wrench (x1) - 4 -...
- Page 6 Step 3 M6x16 Screws (x4) 4mm Allen Wrench (x1) Step 4 Insert “Part F” Motor Connector all the way inside. - 5 -...
- Page 7 Step 5 1) Insert “Part G” to “Part F” and push it into the inside spring. 2) Twist the motor rod with force to fit the other side connector, then release it to connect. Step 6 "Position of the Wire basket can be adjusted to the right, middle, or left for your convenience."...
- Page 8 Step 7 Connect Cable To The Power Supply Step 8 Dowel (x8) - 7 -...
- Page 9 Step 9 M6x16 Screws (x8) 4mm Allen Wrench (x1) Step10 ST4x16 Screws (x2 ） - 8 -...
- Page 10 Step 11 Connect Motor Cable To The Power Supply Connect Controller Cable To The Power Supply Initialization / Reset Instructions: 1. Plug the power cable into an “electrical” outlet. 2. Press and hold the down key until the display shows “Rst”. 3.
- Page 11 ● LED Display: Press any key once to wake up the LED display. ● Up Key Press and hold the UP key to raise the desk . ● Down Key : Press and hold the DOWN key to lower the desk. ●...
- Page 12 Motor Overheat 1. Press any key to restart the function. 2. If the above step fails, please contact Customer Service at shw@simplehousewares.com for further assistance. Initialization Process Desk in the process of resetting. Press and hold the DOWN key for the desk to slowly lower until it reaches its lowest setting.
