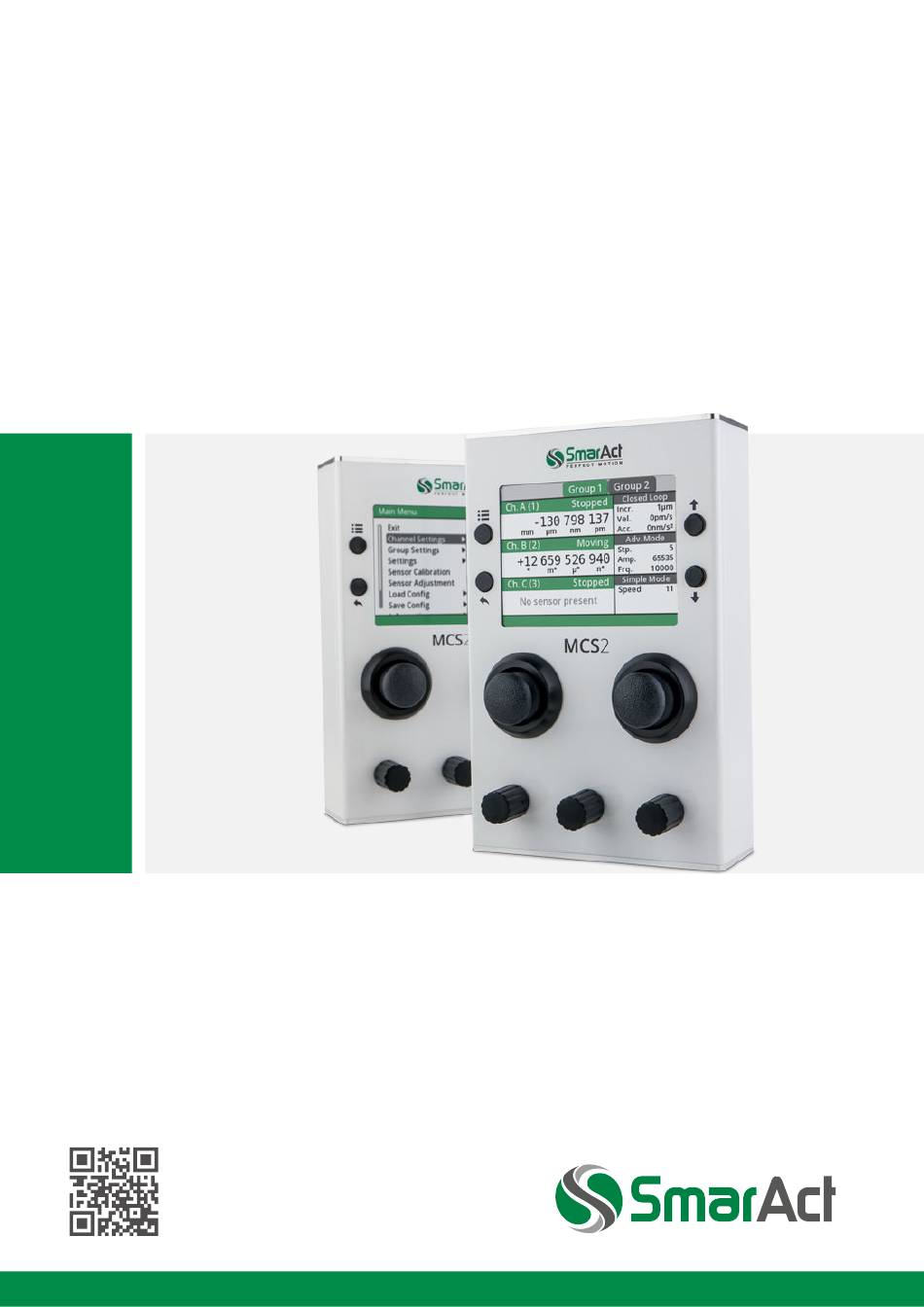

  • Page 1 MCS2 ANUAL www.smaract.com...
  • Page 2 Nevertheless, it is not possible to fully exclude the presence of errors. In order to always get the latest information, please contact our technical sales team. SmarAct GmbH, Schuette-Lanz-Strasse 9, D-26135 Oldenburg Phone: +49 (0) 441 - 800879-0, Telefax: +49 (0) 441 - 800879-21 Internet: www.smaract.com, E-Mail: info@smaract.com...

  • Page 3: Table Of Contents

    3.3 Finding An Unknown IP Address..................... 20 4 Technical Data ..........................22 4.1 Status LED..........................22 4.2 MCS2 Main Controller Connectors ..................22 4.2.1 Power Supply Connectors ................... 22 4.2.2 D-SUB-15 Connector for Sensor Module..............24 4.2.3 D-SUB-15-HD Connector for External Hand Control Module ......... 24 4.2.4 USB Connector......................
  • Page 4 TABLE OF CONTENTS 4.4.2 Auxiliary Fast Digital Input/Outputs ................29 4.4.3 Auxiliary GP Digital Inputs/Outputs ................30 4.4.4 Auxiliary GP Analog Outputs ..................31 4.4.5 Auxiliary Fast Analog Inputs ..................32 4.4.6 Abbreviations ........................ 34 MCS2 User Manual...

  • Page 5: Manufacturer Declarations

    MCS2 Model Numbers: MCS2-C-xxxx, MCS2-S-xxxx, MCS2-H-xxxx, MCS2-R19-xxxx, MCS2-MOD-xxxx Product Options: complies – if installed in a compatible chassis from SmarAct and connected to a power supply provided by SmarAct – with the following European directives: 2014/35/EC Low Voltage Directive 2014/30/EC...

  • Page 6: Information, Warnings And Safety Instructions

    Please use the provided power supply only. This is required to meet all design specifications. 1.2.2 Danger – Hazardous Voltage The MCS2 controller described in this manual is capable of generating high output currents at high voltages. They may cause serious or even lethal injury if used improperly. Therefore, the equip- ment should only be operated by personnel that is adequately trained and educated to prevent any improper use.

  • Page 7: Caution - Unpacking

    Insufficient air flow can cause overheating, which can result in a limited functionality of the con- troller. If you are using an OEM version of an MCS2 controller, the controller board must be installed in such a way, that free air convection can be achieved. Insufficient ventilation will cause overheating and premature failure.

  • Page 8: Caution - Connecting Instructions

    Please touch the OEM boards on their edges only during handling and installation. Discharge any static charge on your body by touching a grounded object prior to the handling of the MCS2 controller board. If not installed, place the MCS2 controller boards only on conductive surfaces, such as ESD- safe transport containers (envelopes or foam).

  • Page 9: Warranty And Liability

    1.2.8 Life Support Policy SmarAct GmbH does not authorize or warrant any of its products for use in life support systems, without the specific written consent of SmarAct GmbH. Life support systems are equipment intended to support or sustain life, and whose failure to per- form, when properly used in accordance with instructions provided, can be reasonably expected to result in personal injury or death.

  • Page 10: Product Overview

    This document is a user manual for the SmarAct Modular Control System 2 (MCS2) which is de- signed to drive piezo based SmarAct stepping actuators. For the general concepts of controlling the MCS2 by software as well as for a description of the application programming interface (API) please refer to the MCS2 Programmers Guide.

  • Page 11: Mcs2 Main Controller

    As there is a wide range of applications, many different combinations of MCS2 main controllers and sensor modules are configurable to meet the individual needs of our customers. Sections 2.1 and 2.2 give an overview on current models.
  • Page 12 Type 1/3, Ethernet interface (Sensor Module), 7x BNC (6 out, 1 in) MCS2-C-0016 3 channel Controller, I/O Module RJ-45 Ethernet, D-SUB-15 female Type 3, Ethernet interface (Sensor Module), 4x BNC (3 out, 1 in) Continued on next page MCS2 User Manual...
  • Page 13 3 channel Controller, I/O Module USB type B, D-SUB-15 female (Sensor Type 6, USB interface Module), D-SUB-37 female (IO), USB type B (HSDR) The connectors of the most common MCS2 controllers are shown in the following figures. Sensor Module Connector Power (D-SUB-15)

  • Page 14: I/O Modules

    2 PRODUCT OVERVIEW 2.1.1 I/O Modules Depending on a specific product code the MCS2 may be equipped with one or more I/O modules. The following tables list the currently available I/O module types and their features: I/O Module Type 1 Table 2.2 –...
  • Page 15 Reached, Actively Moving GP-DIN-n 4 Digital Inputs D-SUB37 General Purpose Digital Input GP-DOUT-n 4 Digital Outputs D-SUB37 General Purpose Digital Output, Open- Collector AOUT-n 2 Analog Outputs D-SUB37 General Purpose +/-10V Analog Voltage Output Continued on next page MCS2 User Manual...

  • Page 16: Mcs2 Sensor Module

    In addition to the modules above, some optional accessories may be required for specific config- urations. In table 2.8 you will find a list of available accessories. Table 2.8 – Product Codes Product Code Description Connectors MCS2-A-PS-CABLE-1.5M-1.5M Adapter cable for MCS2 and PicoScale 3x D-SUB-15 female MCS2 User Manual...

  • Page 17: Installation And Operation

    3 INSTALLATION AND OPERATION 3.1 Setting up the Device Before initial operation be sure to read the safety notes in chapter 1. To set up your MCS2 device please follow the instructions below: 1. Make sure that the power switch of your MCS2 controller is in the off position (0) or that the MCS2 control module is not supplied with power, respectively.

  • Page 18: Ethernet Interface Configuration

    For getting started the MCS2 Demo GUI delivered with each MCS2 device may be used. The MCS2 Service Tool allows to easily configure and setup the MCS2 controller. For detailed information on these programs please refer to the specific manuals.

  • Page 19: Integrated Web Server

    IP address of the controller must be known to be able to connect to the web server. Fur- thermore, the MCS2 and the PC need to be on the same network to enable the browser to load the configuration web page.

  • Page 20: Hand Control Module

    3.2.2 Hand Control Module The Hand Control Module of the MCS2 may be used to configure the network interface settings. Enter the ‘Main Menu‘ -> ‘Settings‘ -> ‘Network Config.‘ menu and modify the parameters as de- sired.
  • Page 21 IP settings after the configured DHCP timeout has expired. After that the device can be found again by the discovering. For the second method the MCS2 device has a push button on the front panel which may be used to reset the interface configuration to the static default configuration temporarily. The button is located behind a small hole below the ethernet connector on the front panel.

  • Page 22: Technical Data

    4.2 MCS2 Main Controller Connectors 4.2.1 Power Supply Connectors The MCS2 controller is supplied by a 12 V power supply. Please use the power supply that has been shipped with the MCS2 controller and make sure it matches the current and power rating, which is specified on the label of the controller (on the bottom or back side of the housing).
  • Page 23 Pin 3 Pin 1 Figure 4.3: Female Mini Fit Jr. connector for power supply Table 4.4 – Mini Fit Jr. Pin Assignment Signal Function 1, 2, 3 +12V DC Controller Power Supply 4, 5, 6 Power Supply Return MCS2 User Manual...

  • Page 24: D-Sub-15 Connector For Sensor Module

    4 TECHNICAL DATA 4.2.2 D-SUB-15 Connector for Sensor Module The MCS2 controller provides one or more female D-SUB-15 connectors to stick-slip positioners via an MCS2 Sensor Module. The pin layout is described below. D-SUB-15 connector to Sensor Module Table 4.5 – DSUB15 Pin Assignment...

  • Page 25: Usb Connector

    Ground 4.2.4 USB Connector The USB Type B connector offers direct connectivity e.g. to a PC for software control of the MCS2. The USB interface is galvanically isolated to the internal ground of the controller. 4.2.5 RJ-45 Connector for Ethernet Communication The RJ-45 connector at the MCS2 main controller provides a standard 10BaseT / 100BaseTX ether- net interface for software control of the MCS2.

  • Page 26: Bnc Connectors For Fast Digital Input/Outputs

    General Purpose Digital Output 1, Open Collector GP-DOUT-2 General Purpose Digital Output 2, Open Collector GP-DOUT-3 General Purpose Digital Output 3, Open Collector GP-DOUT-4 General Purpose Digital Output 4, Open Collector GNDiso Corresponding GNDiso for GP-DOUT-1/-2/-3/-4 Continued on next page MCS2 User Manual...
  • Page 27 GNDiso Corresponding GNDiso for AIN-1 AOUT-2 General Purpose Analog Output 2 GNDiso Corresponding GNDiso for AOUT-2 AOUT-1 General Purpose Analog Output 1 GNDiso Corresponding GNDiso for AOUT-1 d.n.c DO NOT CONNECT, Internally Used Not Connected Shielding Ground MCS2 User Manual...

  • Page 28: Mcs2 Sensor Module Connectors

    4 TECHNICAL DATA 4.3 MCS2 Sensor Module Connectors 4.3.1 D-SUB-15 Positioner Connectors Sensor Module D-SUB-15 connectors Table 4.8 – Pin Assignment Signal Function HV-OUT-x Positioner driving signal, channel x d.n.c. DO NOT CONNECT d.n.c. DO NOT CONNECT S-GND Ground for sensor...

  • Page 29: Mcs2 Electrical Specifications

    4 TECHNICAL DATA *The HV-OUT-x signals are identical to the HV-OUT-x signals from the MCS2 controller. 4.4 MCS2 Electrical Specifications 4.4.1 Positioner Driver Output Table 4.9 – Driver Output Specification Parameter Value Unit Driving Signal (HV-OUT-x) Signalform sawtooth (step mode)

  • Page 30: Auxiliary Gp Digital Inputs/Outputs

    Writing a one to an output switches the output transistor on which leads to a low signal level at the output pin. Table 4.11 – General Purpose Digital Inputs/Outputs Specification Parameter Condition Unit Common MΩ General Purpose Digital Inputs Continued on next page MCS2 User Manual...

  • Page 31: Auxiliary Gp Analog Outputs

    / power-down. Table 4.12 – General Purpose Analog Outputs Specification Parameter Condition Unit Common MΩ General Purpose Analog Outputs Ω Using line passing through codes 512 and 65024 ± ± Continued on next page MCS2 User Manual...

  • Page 32: Auxiliary Fast Analog Inputs

    Condition Unit Common MΩ Fast Analog Inputs kΩ -3dB per channel sample ± ± SINAD 91.5 % FSR gain ± offset input range=5.12V 5.12 input range=10.24V 10.24 input range= 2.56V -2.56 2.56 ± Continued on next page MCS2 User Manual...
  • Page 33 4 TECHNICAL DATA Table 4.13 – Continued from previous page Parameter Condition Unit input range= 5.12V -5.12 5.12 ± input range= 10.24V -10.24 10.24 ± MCS2 User Manual...

  • Page 34: Abbreviations

    • V : offset error offset • V : DAC output noise noise • t : output voltage settling time (transition time between 1/4 scale and 3/4 scale, includ- settling ing settling to 0.024 % within FSR) ± MCS2 User Manual...
  • Page 35 United States of America 272-0023 Chiba Korea Japan T/F: +81 47 – 370 86 00 T: +82 2 868 – 10 02 T: +1 415 – 766 9006 Email: info-jp@smaract.com Email: info-kr@smaract.com Email: info-us@smaract.com www.physix-tech.com www.seumtronics.com www.smaract.com MCS2 User Manual...
