  • Page 1 M u c h m o r e t h a n j u s t a H i - F i r a c k .
  • Page 2 Table of contents Overview 317 – Klangmöbel – and Klangbasen Standard and optional equipment KLANGMÖBEL GENIUM LINE and PURE LINE Genium Line Pure Line Basic models with prices Genium Line Pure Line Standard equipment Technology Equipment Sound-core and Functional-body Cladding Accessories Optional equipment Equipment...

  • Page 3: Table Of Contents

    Shelves Cladding Dimensions Genium Line Pure Line KLANGBASEN BASE LINE Base Line Basic models with prices Base Line Standard equipment Technology Equipment Sound-Core and Stability-Core Cladding Accessories Optional equipment Cladding Packaging Surface finishing Shelves Cladding Dimensions Base Line Warranty Explanations...

  • Page 4: Shelves

    Overview 317 Standard and Extras DESIGN Crystal ○ ○ ○ Classic ● ● ● WIDTH Single width ○ ○ ○ Double width ○ ○ Triple width ○ ○ DESIGN HEIGHT 166 mm ○ 650 mm ○ ○ 775 mm ○ ○...

  • Page 5: Genium Line

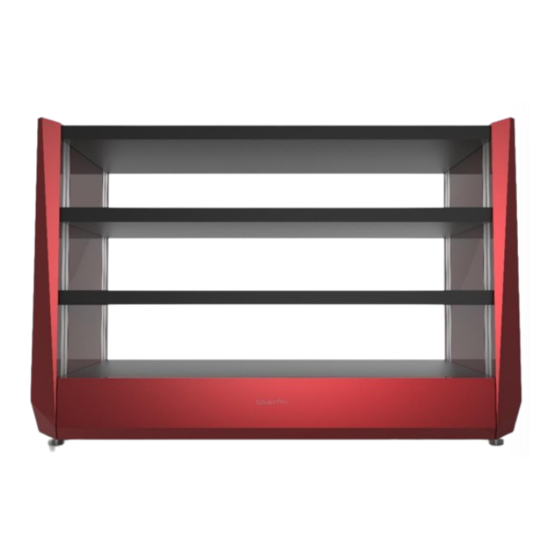

    Genium Line Designed for consummate listening enjoyment in a residential setting. The Genium Line has it all, high-quality sound, a sophisticated design – and features never before seen in audio furniture. The world of FalkenOhr for true audiophiles.
  • Page 6 1 ○ Shelf 2 ○ Stands incl. spikes and spike shoes 3 ○ Cladding 4 ○ Drawer 5 ○ Installation area 6 ○ Top side cable inlet with cover and brushes 7 ○ Pluggable rear panel 8 ● Pendulum flaps 9 ●...

  • Page 7: Pure Line

    Pure Line Made for purists. The focus is on sound and design. Reduced to their essence. Purism for high demands.
  • Page 8 1 ○ Shelf in compound design 2 ○ Stands incl. spikes and spike shoes 3 ○ Claddings 4 ○ Drawer with TIP-on Pure Line Equipped with drawer and cladding. ● = available as optional equipment ○ = standard equipment - = not available Explanations of the footnotes –...
  • Page 9 Basic models 317 Genium Line and Pure Line Height Design-width Width Shelf-width Shelves Weight List price in mm in mm in mm in pcs in kg Euro excl. VAT 317 Genium Line 9.460,00 € single width 104,5 9.890,00 € single width 114,0 10.300,00 €...

  • Page 10: Standard Equipment

    The new, innovative connections of the FalkenOhr shelves to the stands are either damping or conductive. This enables the micro-vibrations generated by the audio devices in one shelf to be dissipated without disturbing the other levels.
  • Page 11 Genium Line and Pure Line ○ ○ Clear structure FalkenOhr sound furniture has a clear structural separation into three main structural components. These are independently mounted and decoupled from each other. SOUND CORE The heart of your sound furniture. Designed for an extremely clear, powerful, and spatial sound image.
  • Page 12 Standard equipment 317 Genium Line and Pure Line ○ ○ Shelves Composite shelves with innovative integrated connection 3 pcs. technology. A shelf is conductively connected to exactly one stand and insulated with the other 3 stands, thereby vibrations from one shelf cannot influence any other shelves.
  • Page 13 Standard equipment 317 Genium Line and Pure Line ○ Cable-Installation-Area Separate, easily accessible room for your cable installation. Designed for orderly arrangement and mounting of the signal and electrical cables. Suitable for cable diameters up to 20 mm and plug diameters up to 42 mm. Completely decoupled from the sound core.

  • Page 14: Cladding

    Genium Line and Pure Line ○ Rear Panel The back panel of each FalkenOhr sound furniture is pluggable, can be quickly removed, and is equipped with invisible air vents. It serves as a protection against dust and is also a pleasant visual finish to its back.
  • Page 15 Optional equipment 317 Genium Line and Pure Line EQUIPMENT SOUND-CORE 725,00 € ● ● Additional shelf Composite shelves with innovative Single width 1.010,00 € 1 pc. integrated connection technology. Double width 1.290,00 € Triple width 718,00 € ● ● Decoupled Base For each desired position a 12 mm thick aluminum plate (EN AW- 1 pc.

  • Page 16: Cladding

    Optional equipment 317 Genium Line and Pure Line 1.179,00 € ● Power Strip Power-Strip 7-fold* 1.669,00 € ● 1 pc. Power-Strip 11-fold** Perfect, clear sound through a stable integrated power supply. • CNC machined 11,6 mm thick anodized aluminum (EN AW- 5083, nature E6/C0 anodized) base plate for highest rigidity •...

  • Page 17: Shelves

    Surface finishing 317 Genium Line and Pure Line SHELVES Lacquered finishes □ matt G30, slightly structured 0,00 € 0,00 € 0,00 € ○ ○ Black □ semi-gloss G70 22,00 € 33,00 € 44,00 € ● ● □ high gloss G100 Black □...

  • Page 18: Cladding

    Surface finishing 317 Genium Line and Pure Line CLADDING Lacquered finishes □ matt G30 - soft touch 0,00 € ○ ○ Black □ semi-gloss G70 130,00 € ● ● □ high gloss G100 Black □ high gloss G100, polished 2.685,00 € ●...
  • Page 19 Dimensions 317 Single width Double width Triple width 317 Genium Line Design height 650 mm Usable height 447 mm. The shelves can be adjusted in height in a grid of 25 mm. Shelf-thickness 34 mm. Max. 4 shelf levels. Design height 775 mm Usable height 572 mm.
  • Page 20 Single width Double width Triple width Design height 900 mm Usable height 697 mm. The shelves can be adjusted in height in a grid of 25 mm. Shelf-thickness 34 mm. Max. 5 shelf levels. Design height 1025 mm Usable height 822 mm. The shelves can be adjusted in height in a grid of 25 mm.
  • Page 21 Single width Double width Triple width 317 Pure Line Design height 650 mm Usable height 447 mm. The shelves can be adjusted in height in a grid of 25 mm. Shelf-thickness 34 mm. Max. 4 shelf levels. Design height 775 mm Usable height 572 mm.
  • Page 22 Single width Double width Triple width Design height 900 mm Usable height 697 mm. The shelves can be adjusted in height in a grid of 25 mm. Shelf-thickness 34 mm. Max. 5 shelf levels. Design height 1025 mm Usable height 822 mm. The shelves can be adjusted in height in a grid of 25 mm.

  • Page 23: Base Line

    Base Line The base for your power amps and/or speakers. Created as an ideal complement to Pure Line and Genium Line. ○ Shelf ○ Stands incl. spikes and spike shoes ○ Cladding ○ Stability core with damping concrete ○ 3D/IO Technology ●...
  • Page 24 Basic models 317 Base Line Height Width Usable width Depth Usable depth Weight List price in mm in mm in mm in mm in mm in kg Euro excl. VAT 317 Base Line 4.250,00 € 37,0 4.450,00 € 47,0 4.650,00 € 53,0 4.850,00 €...
  • Page 25 The new, innovative connections of the FalkenOhr shelves to the stands are all conductive for the bases. This enables the micro- vibrations generated in the shelf by the audio component to be dissipated quickly and specifically.
  • Page 26 Standard equipment 317 Base Line ○ Sound adjustment - Adjustment of the sound image to your acoustic preferences and analytic/warm conditions by adjustable damping of the spike shoes. Stone floors, certain audio components, or living room conditions can create a too hard, rigid, or even over-analytical sound.
  • Page 27 Standard equipment 317 Base Line STABILITY-CORE ○ Stainless steel tub with Stainless steel tub filled with highly damping concrete. Weight approx. damping concrete 25 kg. Serves for a highly efficient reduction of external vibrations. 1 pc. CLADDING ○ Design Crystal Made of damping MDF.
  • Page 28 Optional equipment 317 Base Line CLADDING 0,00 € ● Design Classic Made of damping MDF. Cladding incl. decoupling The beautiful cover for your sound furniture. Designed to complete the visual delight. Apart from the aesthetic appearance, the clarity of the sound is further enhanced due to the mass.
  • Page 29 Surface finishing 317 Base Line SHELVES Lacquered finishes □ matt G30, with a light-structure 0,00 € ○ Black □ semi-gloss G70 22,00 € ● □ high gloss G100 Black □ high gloss G100, polished 630,00 € ● □ matt G30, with a light-structure 0,00 €...
  • Page 30 Surface finishing 317 Base Line CLADDING Lacquered finishes □ matt G30 - soft touch 0,00 € ○ Black □ semi-gloss G70 44,00 € ● □ high gloss G100 Black □ high gloss G100, polished 1.745,00 € ● □ matt G30 – soft touch 0,00 €...
  • Page 31 Dimensions 317 400 width 560 width 317 Base Line Depth 528 mm Depth 800 mm...

  • Page 32: Warranty

    FalkenOhr is in no way responsible for consequential or indirect damage or liability resulting from the use of the product discussed here or from a violation of this warranty or any implicit warranty in relation to the said product.

  • Page 33: Explanations

    Explanations Klangmöbel is a term used by FalkenOhr for HiFi racks Klangbase is a term used by FalkenOhr for Amp-Stands The information single wide, double wide and triple wide refer to electronics in 19 '' design. I.e. for devices narrower than 482.6 mm, one, two, or three can be positioned side by side.
