PRODUCT INSTRUCTIONS

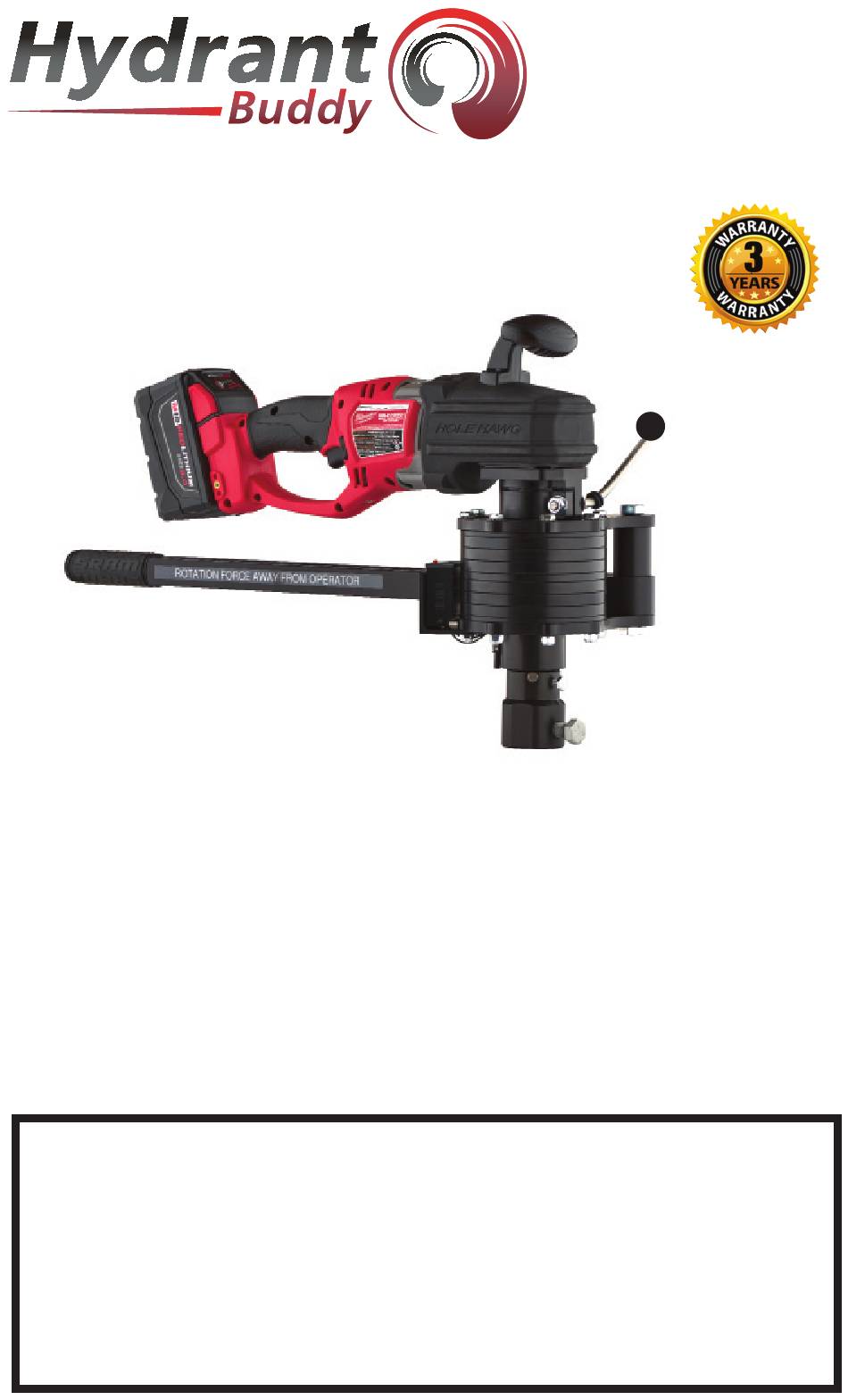

The Hydrant Buddy Kit Includes:
• Hydrant Buddy Tool
• Batteries (2)
• Charger
• Socket
• Hex Key
Read these instructions thoroughly before using the Hydrant Buddy. For more in-
formation, call HydroVerge at (952) 484-8610 or email info@HydroVerge.com. This
product is sold with the understanding that the purchaser agrees to thoroughly
train all operators and maintenance personnel in the correct and safe assembly,
operation, and maintenance of the product and to provide adequate supervision of
personnel at all times. Retain these instructions for future reference. If this product
is resold or otherwise conveyed, purchaser must pass on the instructions to the
new user.
• Wrench
• Grease Zerk
• Product Instructions
• Tool Bag or Crate
Advertisement
Table of Contents
Related Manuals for HydroVerge Hydrant Buddy
Summary of Contents for HydroVerge Hydrant Buddy
- Page 1 • Tool Bag or Crate • Hex Key Read these instructions thoroughly before using the Hydrant Buddy. For more in- formation, call HydroVerge at (952) 484-8610 or email info@HydroVerge.com. This product is sold with the understanding that the purchaser agrees to thoroughly...
-
Page 2: Table Of Contents
Table of Contents Section 1: Safety .................3 Section 2: Product Specifications ..........4 Section 3: Components ..............5 Section 4: Hydrant Buddy Controls ..........6 Section 5: Operation ..............7 Opening Hydrant Valves .............8 Closing Hydrant Valves...............9 Section 6: Other Attachments ...........10 Attachment Options ..............10 Gate Valve Key .................11... -
Page 3: Section 1: Safety
THE OPERATOR DURING USE. Misuse could lead to loss of operator balance and potential fall injury. The Hydrant Buddy is designed to produce an intense amount of torque. PLEASE USE EXTREME CAUTION AT ALL TIMES. This tool has been designed to help operators open and close valves. -
Page 4: Section 2: Product Specifications
Section 2: Product Specifications Model Name Hydrant Buddy Model Type Cordless Width (in) 6.5” Length (in) 26” Height (in) 12” from output drive to top motor handle Weight 22.5 lbs with socket and battery Battery Capacity Up to 20 hydrants / 10 gate valves... -
Page 5: Section 3: Components
Section 3: Components HYDRANT BUDDY CHARGER BATTERIES (2) 5-POINT HEX KEY ADJUSTABLE SOCKET PRODUCT INSTRUCTIONS GREASE ZERK TOOL BAG OR CRATE (Not Pictured) January 2021 HV-104... -
Page 6: Section 4: Hydrant Buddy Controls
Section 4: Hydrant Buddy Controls Directional Switch Trigger Handle Lock Battery Digital Counter ROTATION FORCE AWAY FROM OPERATOR Reaction Set Screw Handle Threaded Fastener Socket HV-0104 January 2021... -
Page 7: Section 5: Operation
Never apply manual torque to open or close a valve! ONLY USE MOTOR POWER TO ACTUATE THE VALVE, OTHERWISE, DAMAGE TO THE MOTOR MAY OCCUR. Follow all Hydrant Buddy procedures outlined in these Product Instructions. Failure to follow product usage instructions, including manually turning the valve, will invalidate the product warranty. -
Page 8: Opening Hydrant Valves
1. Insert the socket onto the Hydrant Buddy 3/4” square drive shaft. 2. Tighten the set screw to secure the socket. 3. Place the Hydrant Buddy with the socket onto the hydrant with the reaction handle facing away from the operator. -
Page 9: Closing Hydrant Valves
4. Operate the tool carefully to close the hydrant valve, slowing down as it nears the fully closed position. 5. Stop the Hydrant Buddy when the digital counter reaches the previ- ously noted counter value. NOTE: Be aware the torque will increase if you go over the previ- ously noted counter value because now the hydrant valve is being over-tightened and could potentially break or bind the valve. -
Page 10: Section 6: Other Attachments
Section 6: Other Attachments Attachment Options ROTATION FORCE AWAY FROM OPERATOR GVK-L GVK-S HBS-5A HBS-3A HBS-114 HBS-1M 78"-135" 48"-82" Adjustable Adjustable 1-1/4" 3/4” Female to Depth Capacity Depth Capacity 5-point Socket 3-point Socket 4-point Socket 1” Male Adapter (Included with Tool) HV-0104 January 2021... -
Page 11: Gate Valve Key
Gate Valve Key The gate valve key can be purchased separately. It fits onto the Hydrant Buddy and opens gate valves. January 2021 HV-104... - Page 12 2. Adjust the length of the key to ensure the top of the key is at a com- fortable height for the operator. 3. Ensure the Hydrant Buddy tool is fully seated on the gate valve key with the reaction handle facing away from the operator.
- Page 13 3. Move the directional switch in the opposite direction used in Part I. 4. Operate the tool carefully to open or close the gate valve. 5. Stop the Hydrant Buddy when the digital counter reaches the previ- ously noted counter value, slowing down as it nears the fully open/ closed position.
-
Page 14: Section 7: Maintenance
Section 7: Maintenance Greasing the Output Drive & Output Drive Housing For proper operation the Hydrant Buddy should be greased in two locations every 12 months. Greasing the Output Drive 1. Using included Hex Key, remove the threaded plug from output drive. -
Page 15: Greasing The Output Drive Housing
4. Pump 1 oz. of grease. 5. Disconnect the grease pump. 6. Rotate the output drive by slowly operating the Hydrant Buddy motor. 7. Repeat steps 3-6 four more times. 8. Remove the grease zerk. 9. Insert the threaded plug back into the output drive threaded hole and tighten with the hex key. -
Page 16: Section 8: Reference Tables
Section 8: Reference Tables Gate Valve Tables NOTE: The following tables are for reference only. For more accurate information, see the specific hydrant manufacturer to determine the number of valve rotations. Most Double Disk Valves Used in Water Systems Valve Size Number of Turns 3”... - Page 17 Most Metal-Seated Sewage Valves Valve Size Number of Turns 3” 4” 6” 8” 10” 12” 14” 16” 18” 20” January 2021 HV-104...
-
Page 18: Section 9: Troubleshooting
Please call HydroVerge at 952-484-8610 at any time with questions. We are available and eager to answer your questions about the proper use of the Hydrant Buddy, as well as, solve any problems you may have with the tool. HV-0104... - Page 20 For the latest in Hydrant Buddy product news and insights, visit our website at www.HydroVerge.com. For more information, call HydroVerge at (952) 484-8610 or email info@HydroVerge.com. HV-721_HydrantBuddy_Rev01/21...
