DripWorks KIP3-T Assembly Instructions

Individual Plants Kit with Timer (KIP3-T) Assembly Instructions
Congratulations on purchasing one of DripWorks' all-inclusive kits, the easiest way to get a complete
drip irrigation system setup to fit your gardening needs. The kit has two parts; the faucet assembly or
system start portion that brings the water to your garden and the emitters that distribute that water to
your plantings.

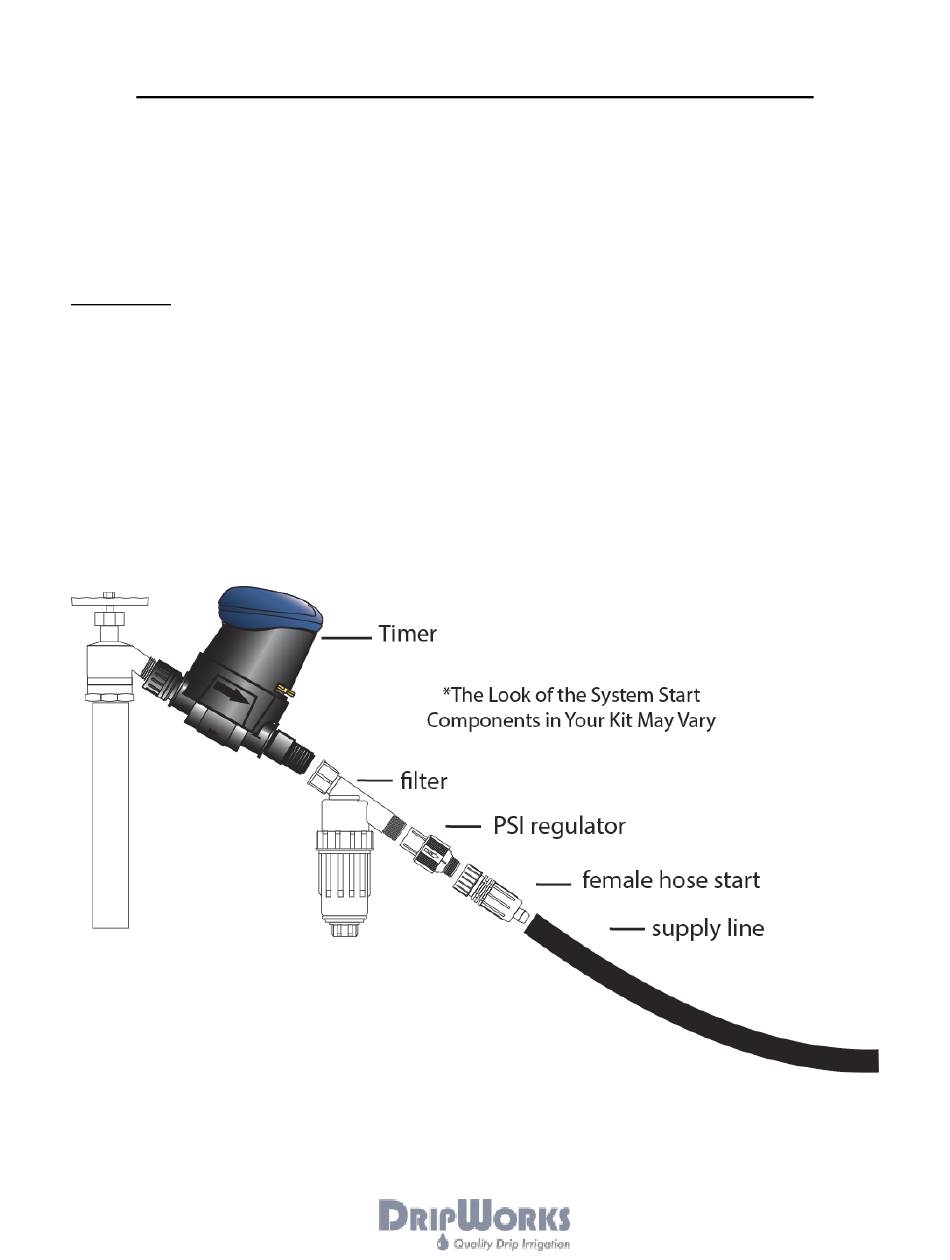

System Start

This portion of the kit includes the Galcon Bluetooth timer, filter, pressure regulator, hose start fitting,
and a roll of mainline tubing.
1. Connect the swivel end of the Galcon Bluetooth timer (TGNHFBT) to your faucet.
2. Connect the filter (FYCH200) to the Galcon Bluetooth timer (TGNHFBT).
3. Connect the pressure regulator to the filter outlet
4. Connect the female hose start to one end of the mainline tubing roll
5. Connect the female hose start to the pressure regulator
6. Unroll the mainline tubing through the garden areas to be watered
7. Close the mainline tubing with an end fitting
8. Stake down the tubing with hold downs
