DripWorks Greenhouse Kit Assembly Instructions

Greenhouse Kit Misting Assembly Instructions

Congratulations on purchasing one of DripWorks' all-inclusive kits, the easiest way to get a

complete irrigation system setup to fit your needs. The kit has two parts; the faucet assembly

or system start portion that brings the water to your garden and the emitters that distribute

that water to your plantings.

This kit will spray 2 areas 4' X 10'. The misters have a 2' radius and should be placed 2' apart. The kit

includes trellis hangers so the tubing can be suspended on trellis wire above the propagation tables.

System Start

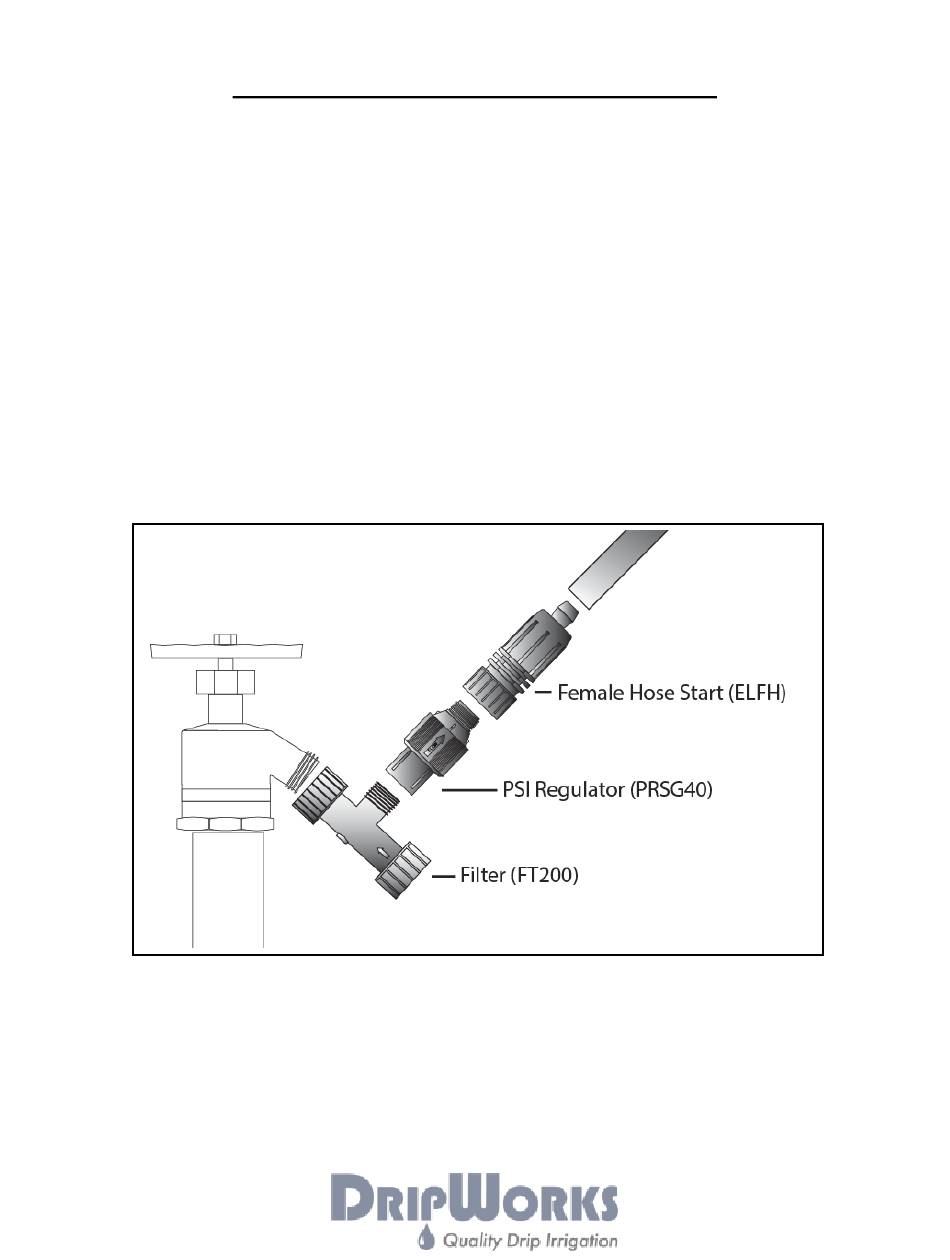

1. At the faucet, timer, or hose end, attach the Tee Filter (FT200) then the pressure

regulator (PRSG40)

2. The Easy Loc Female Hose Start (ELFH) connects to the 1/2" mainline (see Easy Loc

instructions)

3. Connect the Easy Loc Female Hose Start (ELFH) to the pressure regulator (PRSG40)

Table of Contents

Do you have a question about the Greenhouse Kit and is the answer not in the manual?

Page 1 Greenhouse Kit Misting Assembly Instructions Congratulations on purchasing one of DripWorks’ all-inclusive kits, the easiest way to get a complete irrigation system setup to fit your needs. The kit has two parts; the faucet assembly or system start portion that brings the water to your garden and the emitters that distribute that water to your plantings.
Page 2 4. Turn the water and flush the lines then close the mainlines with Figure 8 Ends (CF8) If you have any further questions about our products, or installing your drip system, please contact us at 800-522-3747 or via email at support@dripworks.com or visit our store at DripWorks, 190 Sanhedrin Circle, Willits, CA 95490...
