Summary of Contents for Furniture Pipeline Eugene

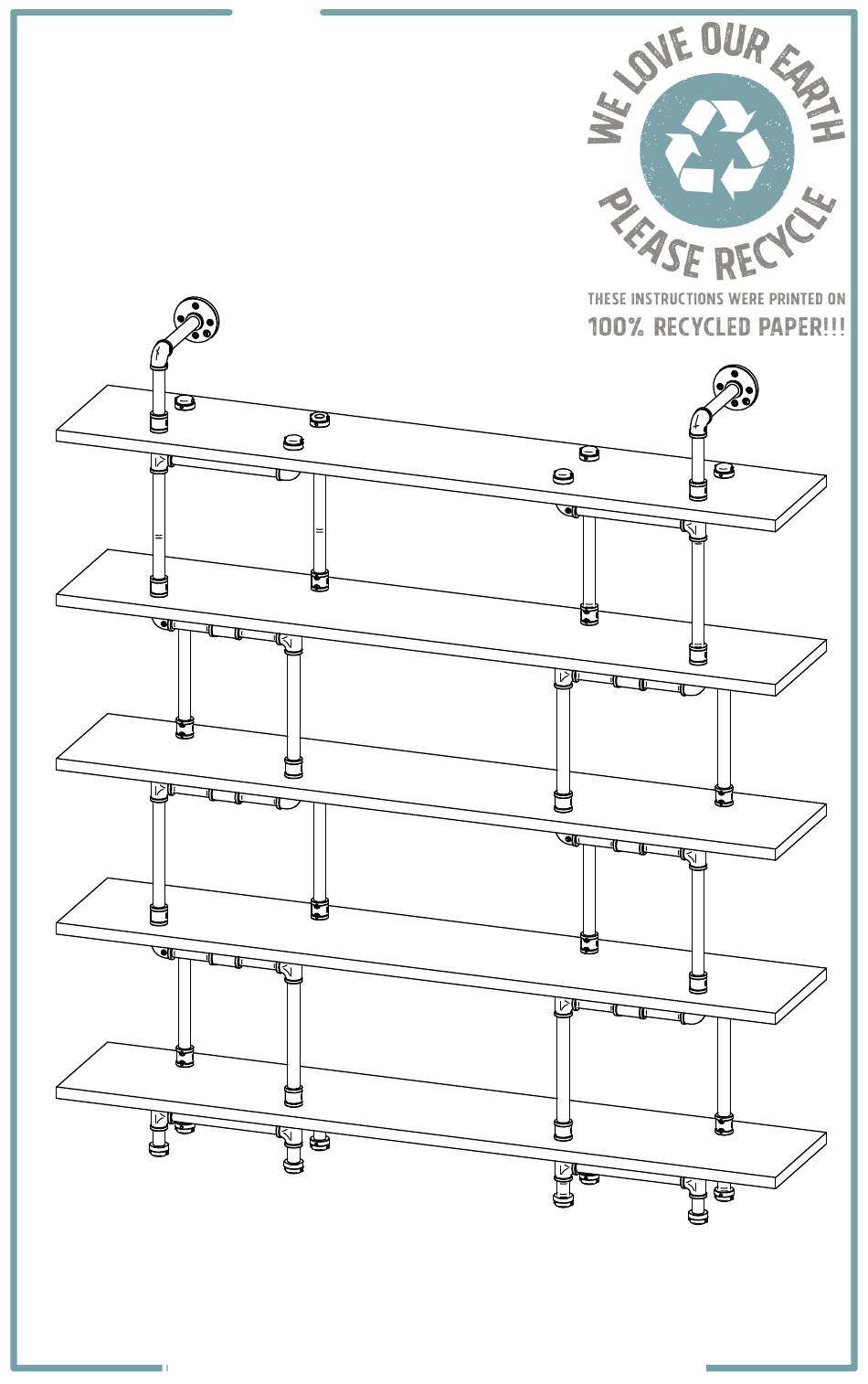

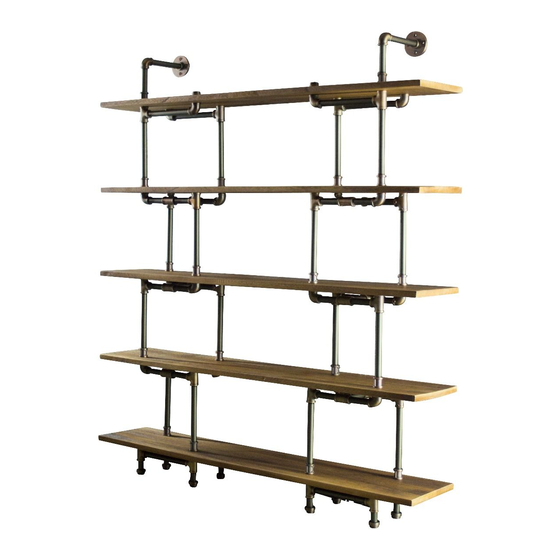

- Page 1 UNIT WEIGHT: 60.50 lb WEIGHT CAPACITY PER SHELF/TIER: 50 lb Pipe Bookcase...
- Page 2 Fastening System Each furniture design utilizes a simple & effective fastening system to quickly assemble your unit. To reduce assembly time, each fitting (connector) has pre-installed set screws (spare set screws are provided) at EACH pipe entry location. Set screws are tightened using a 1/8” Allen Key, which safely secures the pipe in place.
- Page 3 64.00" 32.00" L-BRACKET DISTANCE 12.00" 12.00" 48.00" 8.768" 13.50" 11.000" 5.124" 13.50" 72.77" 11.488" 64.000" 13.50" 13.50" 5.00" 3.190"...
-
Page 4: Important Warnings And Cautions
DISCLAIMER: intends to make this instruction manual accurate and complete. However, makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. - Page 5 [x2] [x2] Left Leg Right Leg Assembly Assembly [x3] Shelf [x12] [x3] Vertical Leg [x3] Shelf Support Shelf Support Support [x1] [x2] Support Shelf Vertical "L" (L-Brackets Support attached) [x2] Vertical "L" Support NOTE: SMALL ADJUSTMENTS MAY BE NEEDED ON SUBASSEMBLIES DUE TO SHIPPING MOVEMENT...
- Page 6 [x6] [x1] Top Shelf [x1] [x1] Right Wall Left Wall Support Support [x1] [x1] 1/8" Allen Key 1/4" Allen Key Smaller Key Larger Key [x8] [x8] Plastic Wall Ø8mm X 40mm lg. Anchors Screws NOTE: SMALL ADJUSTMENTS MAY BE NEEDED ON SUBASSEMBLIES DUE TO SHIPPING MOVEMENT...
- Page 7 NOTE: For Steps 1-5, recommends turning unit on its back for assembly; illustrations are for reference.
- Page 8 FROM STEP 1 USE PART 14 & TIGHTEN [x4]...
- Page 9 7 WITH BRACKETS FROM STEP 2 USE PART 14 TO TIGHTEN ALL NEW CONNECTIONS [x12]...
- Page 10 FROM STEP 3 4 cont... USE PART 14 TO TIGHTEN ALL NEW CONNECTIONS [x10]...
- Page 11 FROM STEP 4 USE PART 14 TO TIGHTEN ALL CAPS [x6] USE PART 14 TO TIGHTEN BOTH SIDES [x2]...
- Page 12 IMPORTANT: TO INSURE PROPER AND SAFE INSTALLATION OF YOUR BOOK CASE, YOU MUST: 1. PLACE THE UNIT IN DESIRED LOCATION AGAINST WALL WHILE LINING EITHER THE RIGHT OR LEFT FLANGE WITH A WALL STUD. 2. LIGHTLY MARK YOUR WALL USING A PENCIL THROUGH THE FLANGE AND L-BRACKET SCREW HOLES (8 MARKS NEEDED TOTAL).
- Page 13 DONT FORGET TO TIGHTEN L-BRACKETS INTO STUD! 3RD SHELF FROM BOTTOM USE PART 15 TO TIGHTEN BRACKETS INTO WALL STUD [x4] USE PLASTIC WALL ANCHORS AS NEEDED IMPORTANT: FAILURE TO PROPERLY SECURE TO WALL MAY RESULT IN SERIOUS INJURY...
-
Page 14: Warranty
WARRANTY Finishes of Pipes and Fittings, and all Other Parts and Components, Excluding Wood -1 Year Limited Warranty- All metal finishes and other parts and components, excluding wood, are warranted by to you, the original retail purchaser, for a one-year period starting from the date of purchase, to be free from material manufacturing defects. - Page 15 WARRANTY CONT... FINISHES AND ALL OTHER PARTS AND COMPONENTS EXCLUDING WOOD – 1 YEAR SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, THEREFORE, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. DISCLAIMER NO OTHER EXPRESS WARRANTY HAS BEEN MADE OR WILL BE MADE ON BEHALF , WITH RESPECT TO THE FURNITURE AND ITS PARTS, OR THE OPERATION, REPAIR, OR REPLACEMENT OF THE FURNITURE AND ITS PARTS.
- Page 16 WARRANTY CONT... Claims If a problem should arise which you feel is covered by our Limited Warranty, contact the authorized retailer from whom you purchased your furniture. The original bill of sale and the product serial number are necessary for the fulfillment of the warranty. Please make sure any claim for warranty service is accompanied by the necessary information to satisfy the warranty requirements.
