Summary of Contents for Furniture Pipeline Ames

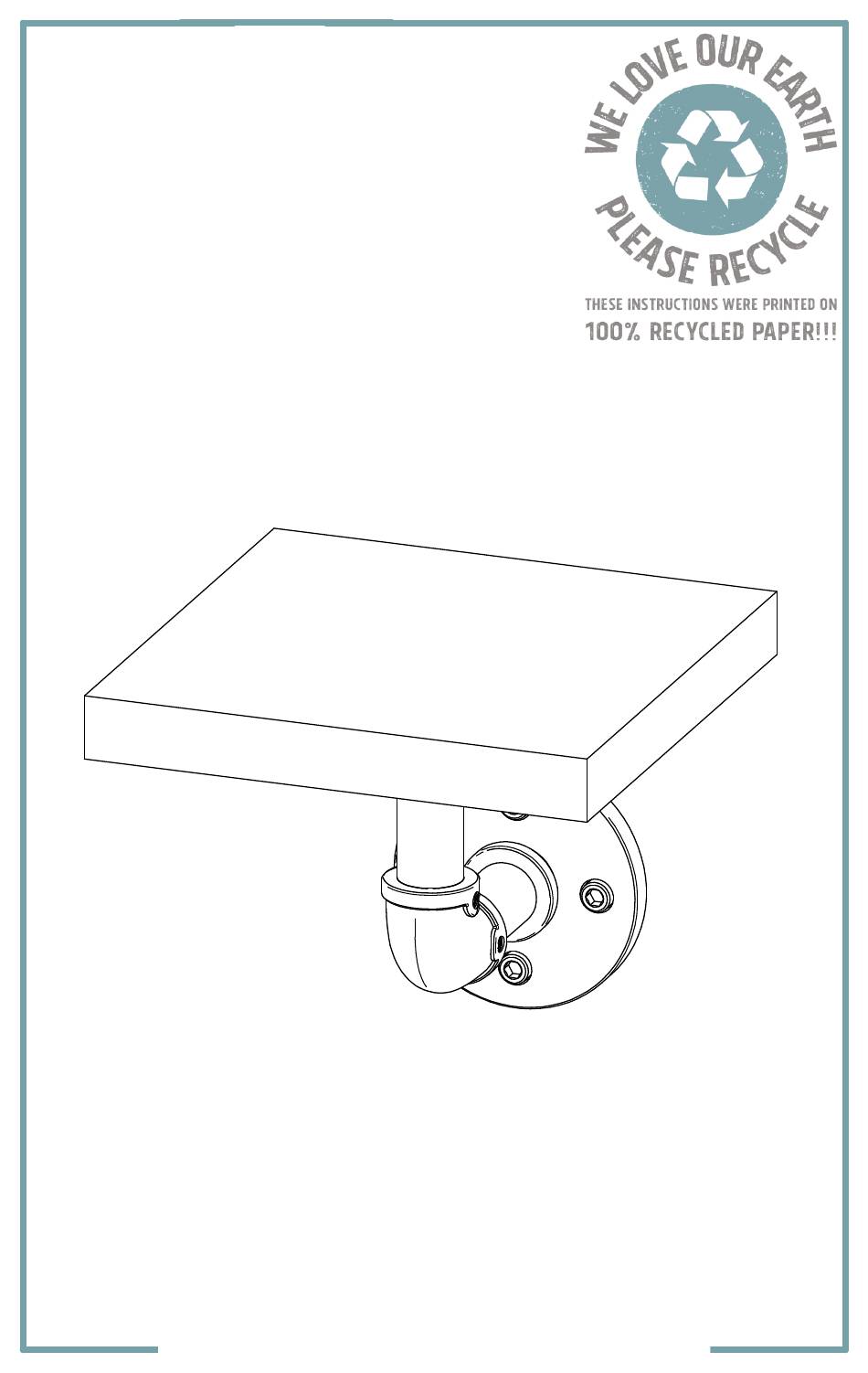

- Page 1 UNIT WEIGHT: 1.5 LB WEIGHT CAPACITY PER SHELF/TIER: 5 LB Decorative Shelf...
- Page 2 Fastening System Each our design utilizes a simple & effective fastening system to quickly assemble your unit. To reduce assembly time, each fitting (connector) has pre-installed set screws (spare set screws are provided) at EACH pipe entry location. Set screws are tightened using a 1/8” Allen Key, which safely secures the pipe in place.
- Page 3 8.00" 6.94" 5.94" 8.00" 1.00" 6.94"...
-
Page 4: Important Warnings And Cautions
DISCLAIMER: We intend to make this instruction manual accurate and complete. However,we make no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. - Page 5 [x1] Pipe Elbow Assembly [x1] Flange [x1] Shelf Assembly [x2] 5/16" x 1 7/8" lg. Screws [x2] Plastic Wall Anchor [x1] [x1] 1/4" Allen Key 1/8" Allen Key Larger Smaller NOTE: SMALL ADJUSTMENTS MAY BE NEEDED ON SUBASSEMBLIES DUE TO SHIPPING MOVEMENT...
- Page 6 USE PART 6 TO TEMPORARILY TIGHTEN PIPE TO FLANGE [x1] FAILURE TO PROPERLY SECURE SHELF TO WALL STUD AS INSTRUCTED MAY RESULT IN SERIOUS INJURY!
- Page 7 FROM STEP 2 TIGHTEN SET SCREW IMPORTANT: FAILURE TO PROPERLY SECURE UNIT TO WALL AS SHOWN MAY RESULT IN INJURY.
- Page 8 1. PLACE THE UNIT IN DESIRED LOCATION AGAINST WALL LINING AT LEAST ONE SIDE UP WITH A STUD. 2. LIGHTLY MARK YOUR WALL USING A PENCIL IN EACH MOUNTING HOLE ON THE FLANGES. 3. REMOVE UNIT FROM WALL AND PREDRILL YOUR MARKED SPOTS USING A "...
-
Page 9: Warranty
WARRANTY Finishes of Pipes and Fittings, and all Other Parts and Components, Excluding Wood -1 Year Limited Warranty- All metal finishes and other parts and components, excluding wood, are warranted to you, the original retail purchaser, for a one-year period starting from the date of purchase, to be free from material manufacturing defects.
