Electroconcept LS550-RGB3000 Instruction Manual

Electroconcept LS550-RGB3000 Instruction Manual

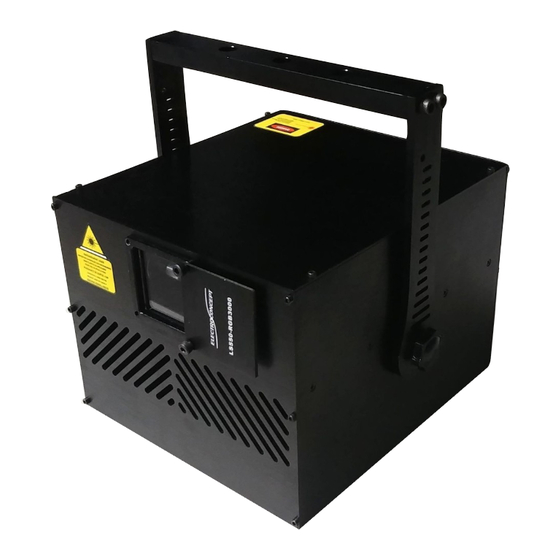

Laser projector

Advertisement

LS550-RGB3000
LASER PROJECTOR
INSTRUCTION MANUAL
Introduction :
Thank you for purchasing this Electroconcept product.
Please carefully read this manual before using this laser projector.
Responsibility :
On no account the Electroconcept company shall be held responsible for any damages of any
nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or
any other financial loss resulting from the use or the impossibility to use your equipment. In
addition Electroconcept shall not be held responsible for damages due to an improper use of
this product.
Warranty :
Electroconcept products have a 2 years manufacturer warranty (1 year for electronic, laser
sources, galvas and fan). The equipment shall be returned prepaid (at the customer's own
expense). Any freight collect will be refused. The equipment shall be returned in its original
packaging. The equipment's restitution will be at our own expense.
Are excluded from warranty: damages due to fault, negligence, lack of maintenance by the
user (broken, burnt, heated, wet, sandy...etc devices), already installed devices of which the
failure would originate from an improper installation or use by the customer.
This product is not intended for continuous use, in order to extend the lifetime of laser
sources please make a 10 minutes break per hour of continuous operation
(BLACKOUT OR ELECTRICAL STOP)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS550-RGB3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electroconcept LS550-RGB3000

  • Page 1 Please carefully read this manual before using this laser projector. Responsibility : On no account the Electroconcept company shall be held responsible for any damages of any nature whatsoever, notably the operating loss, destruction of consumables (tape, disc, CD) or any other financial loss resulting from the use or the impossibility to use your equipment.
  • Page 2 TECHNICAL SPECIFICATIONS : Power supply:AC230V ±10% Frequency:50Hz~60Hz±10% Power consumption:max 100W Laser power specification : RGB 3000mW (~800mW Green, ~1000mW Red , ~1500mW Blue) Wave length : 520nm (Green)/638nm(Red)/450nm(Blue) Laser class : Class 4 Canaux DMX:14 Control signal:DMX-512 signal Scanner :25K et 30K à 8° Control mode : DMX-512, Stand-Alone, ,Sound to Music,ILDA、master and slave Environment : Indoor use only General safety instructions and warning notices...
  • Page 3 ●Operation :: Internal laser service menu: To navigate inside the service menu use « Enter » and « Return » switches then + and – switches to change the value. Mode selection: MODE: - DMX : DMX Mode / slave SINGLE - Single : Single logo selection - Auto : Auto Mode / Sound to music Mode / Master...
  • Page 4 DMX Channels: Description 0 : OFF Mode From 64 to 128 : AUTO Mode From 129 to 192 : SOUND MODE From 193 to 255 : DMX CONTROL From 1 to 255 : LOGO ( INTERNAL MEMORY can be dowloaded via software) From 1 to 255 : Stroboscope :0 none , 1 slow - 255 fast Rotation : 0 none From 1 to 128 : rotation angle...
  • Page 5 Color palette from 0 to 15 palette 1 From 16 to 31 Palette 2 ,From 33 to ……. From 0 to 255 : Color Palette speed from slow to fast scrolling ILDA Mode : (SubD-25 connector) As soon as one ILDA hardware is connected through the SubD-25 connector , the laser automatically switches to it and wait for instructions Warning : ! All connections have to be made with the laser projector switched off ! DMX-512 connection:...
  • Page 6 - In a location subject to extreme temperatures ( 45°C/113°F or 2°C/35.6°F ) Do not let any water, flammable liquids or metal objects enter the product. In the event of liquids entering the product, unplug the power cable immediately. Stop immediately using the device in the event of a serious functioning problem, and contact your reseller for verification, or contact us directly.
