ProVero ID-0052 Instruction

ProVero ID-0052 Instruction

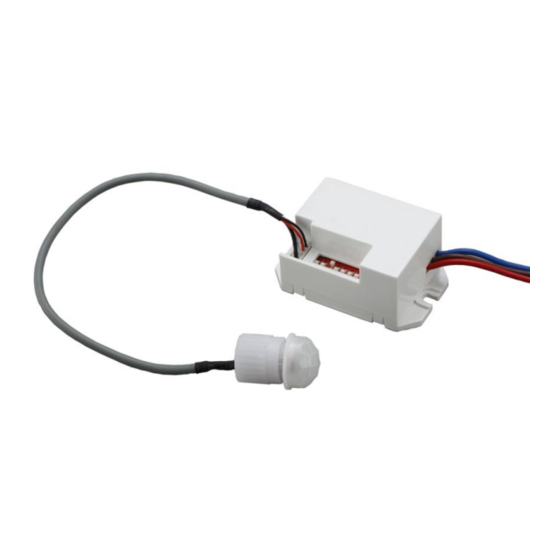

Infrared motion sensor

Advertisement

Available languages

Available languages

Quick Links

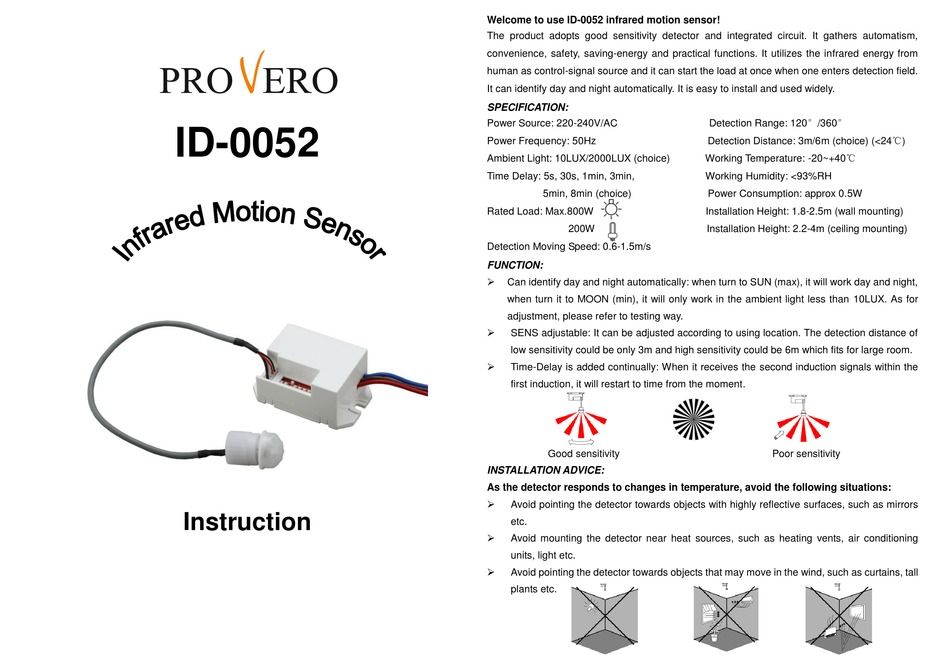

ID-0052
Instruction
Welcome to use ID-0052 infrared motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from
human as control-signal source and it can start the load at once when one enters detection field.
It can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source: 220-240V/AC
Power Frequency: 50Hz
Ambient Light: 10LUX/2000LUX (choice)
Time Delay: 5s, 30s, 1min, 3min,
5min, 8min (choice)
Rated Load: Max.800W
200W
Detection Moving Speed: 0.6-1.5m/s
FUNCTION:
Can identify day and night automatically: when turn to SUN (max), it will work day and night,
when turn it to MOON (min), it will only work in the ambient light less than 10LUX. As for
adjustment, please refer to testing way.
SENS adjustable: It can be adjusted according to using location. The detection distance of
low sensitivity could be only 3m and high sensitivity could be 6m which fits for large room.
Time-Delay is added continually: When it receives the second induction signals within the
first induction, it will restart to time from the moment.
Good sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall
plants etc.
Detection Range: 120°/360°
Detection Distance: 3m/6m (choice) (<24℃)
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Power Consumption: approx 0.5W
Installation Height: 1.8-2.5m (wall mounting)
Installation Height: 2.2-4m (ceiling mounting)
Poor sensitivity

Advertisement

loading
Need help?

Need help?

Do you have a question about the ID-0052 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ProVero ID-0052

  • Page 1 Welcome to use ID-0052 infrared motion sensor! The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field.
  • Page 2  CONNECTION: Switch on the power; the sensor and its connected lamp will have no signal at the beginning. After Warm-up 30sec, the sensor can start work .If the sensor receives the induction signal, the lamp will turn on. While there is no another induction signal any more, the load should Warning.
  • Page 3 Dziękujemy za zakup naszego czujnika na podczerwień model ID - 0052. PORADY DOTYCZĄCE MONTAŻU Czujnik ruchu z zewnętrznym sensorem służy do automatycznego sterowanie oświetleniem lub Jako, że czujnik reaguje na zmiany temperatury, należy unikać następujących sytuacji: innymi urządzeniami elektrycznymi. Zapewnia przy tym oszczędność energii elektrycznej. ...
  • Page 4 ROZWIĄZYWANIE PROBLEMÓW  Obciążenie nie jest załączane: - Sprawdź podłączenie przewodów zasilających czujnik; - Sprawdź czy obciążenie (LOAD) jest dobrze dobrane; - Sprawdź nastawienie przełącznika LUX. TESTOWANIE  Czułość jest słaba:  Ustaw przełącznik LUX - w pozycji dolnej. - Sprawdź czy w pobliżu czujnika nie ma obiektów zakłócających sygnał; ...
