ProVero ID-0055 Instruction

ID-0055
Instruction/Instrukcja

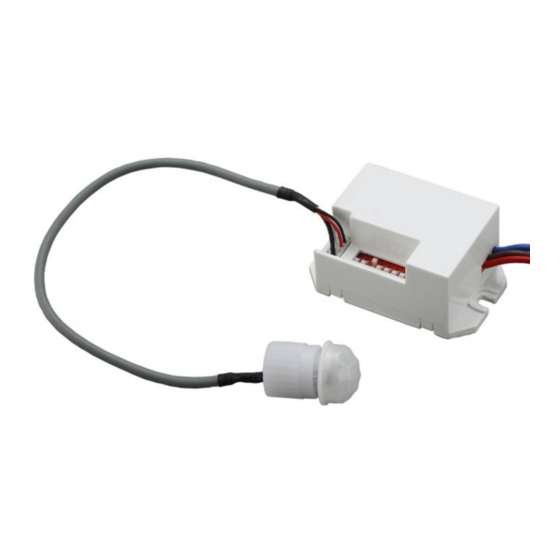

Welcome to use ID-0055 infrared motion sensor!
The product adopts good sensitivity detector and integrated circuit. It gathers automatism,
convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from
human as control-signal source and it can start the load at once when one enters detection field.
It can identify day and night automatically. It is easy to install and used widely.
SPECIFICATION:
Power Source:12V
Detection Distance: 3m/6m (choice) (<24℃)
Ambient Light: 10LUX/2000LUX (choice)
Time Delay: 5s, 30s, 1min, 3min,
5min, 8min (choice)
Rated Load: Max.60W-12V
120W-24V
FUNCTION:
➢
Can identify day and night automatically: when turn to SUN ((below is SUN)), it will work day
and night, when turn it to MOON (above is moon), it will only work in the ambient light less
than 10LUX. As for adjustment, please refer to testing way.
➢
SENS adjustable: It can be adjusted according to using location. The detection distance of
low sensitivity could be only 3m and high sensitivity could be 6m which fits for large room.
➢
Time-Delay is added continually: When it receives the second induction signals within the
first induction, it will restart to time from the moment.
Good sensitivity
INSTALLATION ADVICE:
As the detector responds to changes in temperature, avoid the following situations:
➢
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.
➢
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, light etc.
➢
Avoid pointing the detector towards objects that may move in the wind, such as curtains, tall
plants etc.
Detection Range: 120°/360°
Working Temperature: -20~+40℃
Working Humidity: <93%RH
Detection Moving Speed: 0.6-1.5m/s
Installation Height: 2.2-4m (ceiling mounting)
Installation Height: 1.8-2.5m (wall mounting)
Poor sensitivity
