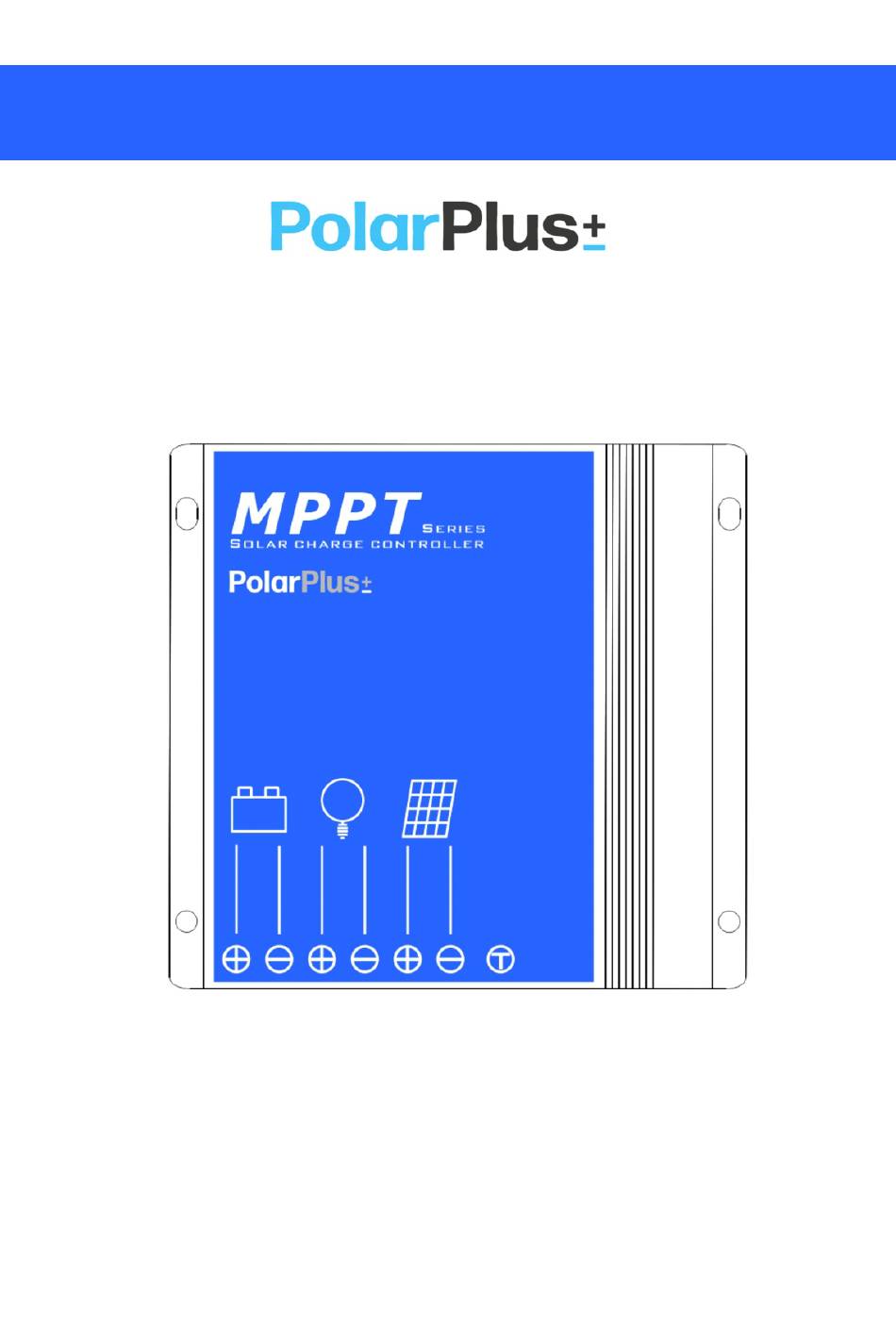

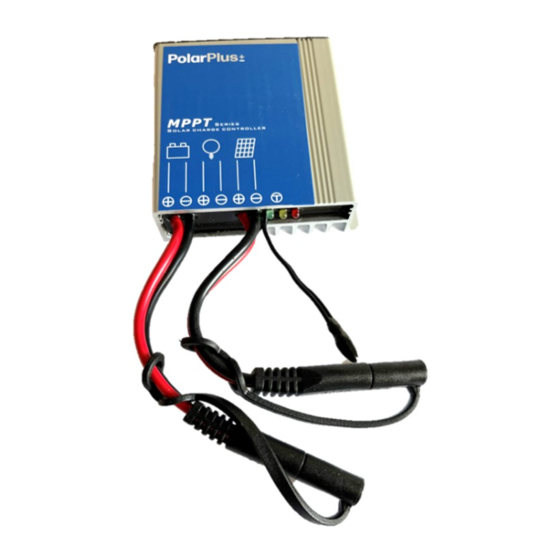

- Page 1 PolarPlus MPPT Solar charge controller 12V/130W MPPT User Manual CE, Rohs, ISO9001:2015 Subject to change without notice!
-
Page 2: Installation
Solar charge controller QCS MPPT User Manual Dear Clients, Thanks for selecting the QCS MPPT solar controller. lease take the time to familiarise yourself with this user manual, as it will help you take full advantage of the controller's features. This manual gives important recommendations for installing, using, and programming the solar controller. -
Page 3: App Installation
Solar charge controller QCS MPPT User Manual 5.App installation 6. BlueTooth Search for "solarlife" in the app market and download The controller has Bluetooth communication function, and install it. For detailed instruction and settings, please the Bluetooth module of the controller can be connected read the Bluetooth APP user manual. - Page 4 Solar charge controller QCS-MPPT User Manual 7. Load Modes b. Battery capacity control Low voltage disconnect setting range: Soc1~Soc5 7.1 Always on Mode Low voltage protection range D/N Thr 11.0~11.6V Soc1 D/N Thr 11.1~11.7V Soc2 Sunrise Sunset 11.2~11.8V Soc3 11.4~11.9V Soc4 Light On 11.6~12.0V...
-
Page 5: Safety Features
Solar charge controller QCS-MPPT User Manual 9.Safety Features 8.LED indicators, Faults & Alarms Solar terminal Battery terminal Load terminal Reverse Protected Protected Protected polarity Short Switches off Protected Protected circuit immediately Green Over Switches off Yellow current with delay Reverse Protected 8.1 LED Display Explanation Current... -
Page 6: 11.Technical Data
Solar charge controller QCS-MPPT User Manual 11.Technical Data Item P10LMQCS Max Charging Current System Voltage Max volt on Bat. Terminal Battery Type Lithium, Liquid, Gel, AGM（Programmable, default: Gel） MPPT Charging Voltage <14.5V@25℃ Boost Voltage 14.0~14.8V(Programmable, default: 14.5V@25℃ ) Equalization Voltage 14.0~15.0V(Programmable, default: 14.8V@25℃...
