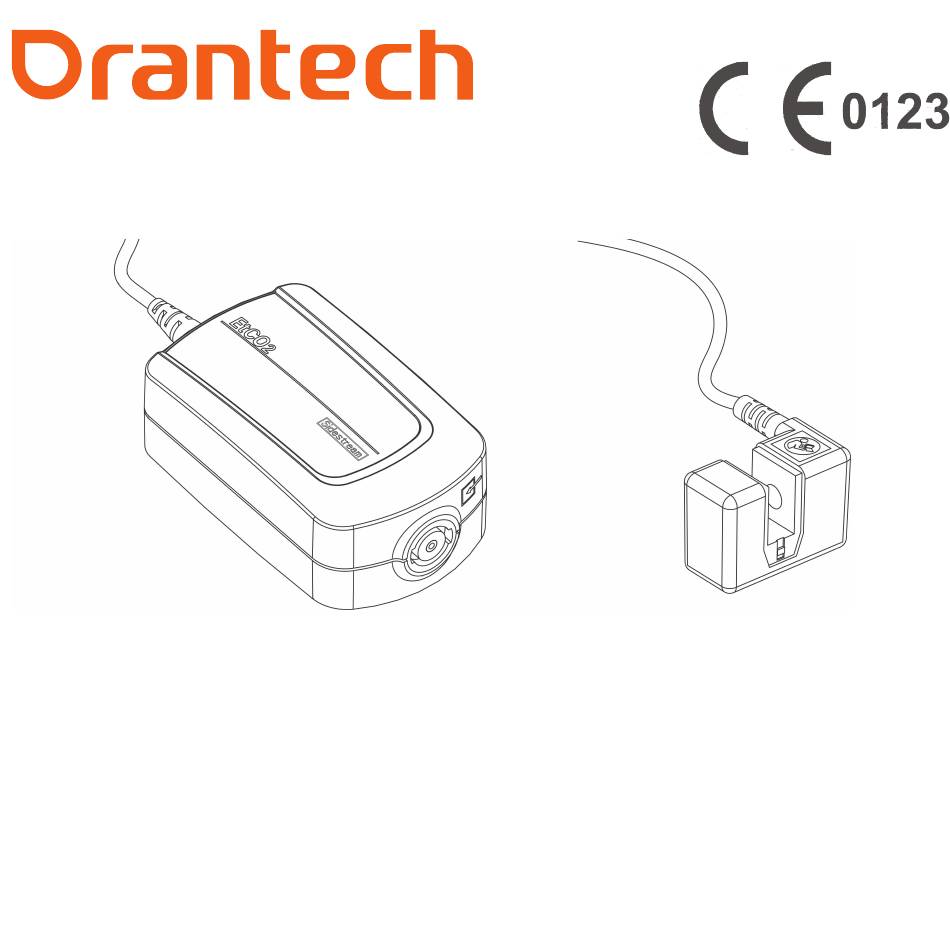

- Page 1 The difference you can sense EtCO2 Sensors User Manual...
-
Page 2: Intended Use & Indications For Use
Intended Use & Indications for Use The intended use of the EtCO2 sensor is to provide carbon dioxide monitoring to a host monitoring system during anesthesia/ recovery in the Intensive Care Unit (ICU) and in Emergency Medicine/Transport or Respiratory Care. -
Page 3: Operating Conditions
Storage conditions are as follows: • Ambient temperature: -10°C to +40°C • Relative humidity: 15% to 85% • Atmospheric pressure: 86 kpa ~106 kpa Shelf Life 5 years. Installation & Use • Mainstream EtCO2 Sensor... - Page 4 - Insert the EtCO2 Sensor connector into the receptacle of the host monitor. - Choose the appropriate airway adapter and connect it to the sensor head. The airway adapter clicks into place when seated correctly (See figure 1). - Set the sensor to zero.
- Page 5 - Connect the cannula, airway adapter, or sample line as appropriate to the sensor. It will click into place when seated correctly. - Set the sensor to zero. - For intubated patients requiring an airway adapter: Install the airway adapter at the proximal end of the circuit between the elbow and the ventilator Y- section (see figure 3).
- Page 6 (see figure 6). Alarm Limits, Ranges and Default Settings Refer to the User manual of the CO2 monitor intended to be used with EtCO2 Sensor. Performance Performance Parameter...
- Page 7 Capnogram, displayed in less than 15 seconds, at Initialization Time an ambient temperature of 25°C, full specifications within 2 minutes CO2 Measurement 0 to 150 mmHg, 0 to 19.7% Range 0.1 mmHg 0 to 69 mmHg CO2 Resolution 0.25 mmHg 70 to 150 mmHg 40) mmHg ±...
- Page 8 • Interfering Gas and Vapour Effects Gas or Vapor GAS Level Quantitative Effects Nitrous Oxide No additional effect Halothane No additional effect Enflurane No additional effect Isoflurane No additional effect Sevoflurane No additional effect CO2 value at 38 mmHg, the Xenon maximum negative bias Poor 5mmHg...
-
Page 9: Cleaning And Disinfecting
Do not sterilize by irradiation steam, or ethylene oxide. Warranty & Liability Orantech offers 12 months warranty against defects in material or workmanship from the date of purchase. But does not include the damage or breakage due to the abusive use or negligent care of the sensors. - Page 10 force and applicable to it. Warning • Before using the sensor confirm that the reading is set to zero. If a non-zero reading is showing manually set to zero. Non-zeroing may result in incorrect readings. • Sensors are designed for use with specific monitors. •...
-
Page 11: Waste Disposal
Federal (U.S.) Law restricts this device to sale by or on the order of a physician. Waste Disposal Please refer to your local laws and regulations for information on how to dispose of EtCO2 sensors. Title of Symbol Caution Manufacturer... - Page 12 Gas Port Input water drops when ENCLOSURE tilted up Gas Port Output to 15 Orantech Inc. Zone#A, 4F, 1st Bld, 7th Industrial Zone, Yulv Community, GongMing, Guangming New District, Shenzhen, China 518106 info@orantech.com www.orantech.com (+86) 755 2369 9939 Cables and Sensors B.V.
