MON-MEVH
Installation and Wiring Instructions
220-240V~50Hz
IP22
PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS.
PLEASE SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for National Ventilation Monsoon MON-MEVH
Summary of Contents for National Ventilation Monsoon MON-MEVH
- Page 1 MON-MEVH Installation and Wiring Instructions 220-240V~50Hz IP22 PLEASE READ INSTRUCTIONS IN CONJUNCTION WITH THE ILLUSTRATIONS. PLEASE SAVE THESE INSTRUCTIONS...
- Page 2 Installation and Wiring Instructions for the MON-MEVH Extract Fan. IMPORTANT: READ THESE INSTRUCTIONS BEFORE COMMENCING THE INSTALLATION DO NOT install this product in areas where the following may be present or occur: • Excessive oil or a grease laden atmosphere. •...
- Page 3 I. This Unit should not be used where it is liable to be subject to direct water spray from hoses etc. J. This Unit handles moisture-laden air, ensure that a condensation drain is fitted. K.This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or...

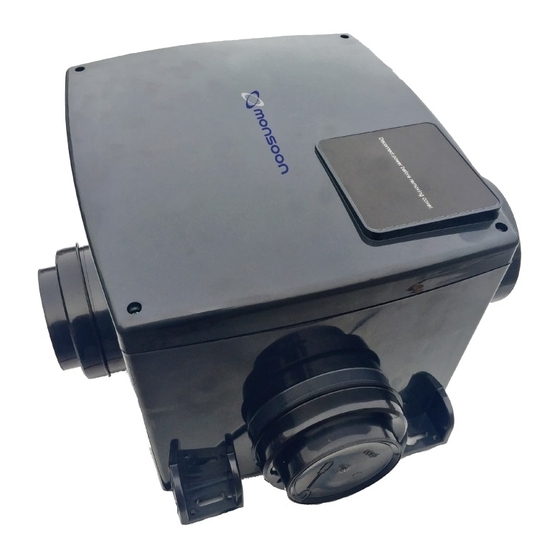

- Page 4 INTRODUCTION NOTES. The MON-MEVH range is designed for simultaneous ventilation for a maximum of up to four separate areas such as bathrooms, kitchens and toilets. The range can be mounted in three different orientations for convenient installation in roof voids with a height of 250mm or greater. An integral humidistat is provided to automatically trigger an increased airflow in order to quickly remove any buildup of humid air caused by showers, cooking etc.
- Page 5 See the dimensional details below for the mounting hole positions. Condensate Drain Condensate Drain On the unit housing. Under the lid. INSTALLATION 1. Position the MON-MEVH, taking into consideration the position of the rooms to be ventilated, the exhaust position, the drainage position and the electrical services. Ensure there is adequate access for installation and maintenance.
- Page 6 HUMIDITY ADJUSTMENT. Adjust potentiometer to the required humidistat setting, Fig. 2. To increase the humidistat set point, rotate the adjuster anticlockwise and to decrease the humidistat set point rotate the adjuster clockwise. Fig. 2 Humidity adjustment The MON-MEVH reacts automatically to an increase in %RH above the set point value. If high humidity is detected, the fan speed increases to medium for 30 minutes.
- Page 7 PRODUCT FICHE For Residential Ventilation Units (Complying Commission Delegated Regulation (EU) No 1254/2014) Name: Monsoon Monsoon Model ID (Stock Ref.) : MON‐MEVH MON‐MEVH ‐ LDC SEC Class E C SEC Value ('Average') ‐16.52 ‐24.69 SEC Value ('Warm') ‐4.51 ‐9.18 SEC Value ('Cold') ‐37.49 ‐51.75 Label Required? (Yes/No=Out of scope) Yes Yes Declared as: RVU or NRVU/UVU or BVU RVU/UVU RVU/UVU Speed Drive Multi‐Speed Multi‐Speed Type HRS (Recuperative, Regenerative, None) ...
- Page 8 National Ventilation Contact Information Stathe Road Website: www.nationalventilation.co.uk Burrowbridge email: info@nvagroup.co.uk Somerset Sales and technical hotline: 01823 690290 TA7 0RY 475921A 0217...
