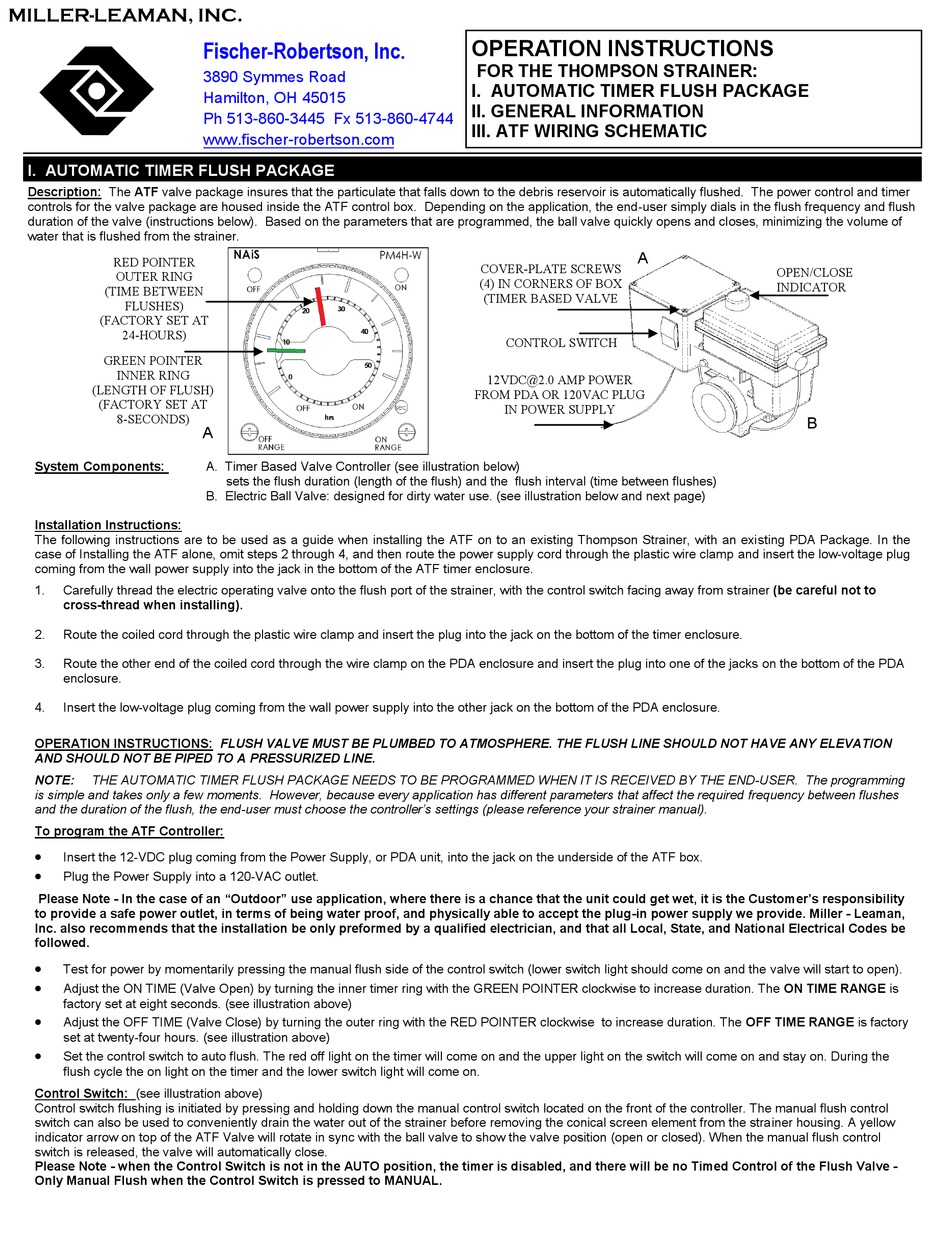

Miller-Leaman ATF Series Operation Instructions

MILLER-LEAMAN, INC.
I. AUTOMATIC TIMER FLUSH PACKAGE
Description: The ATF valve package insures that the particulate that falls down to the debris reservoir is automatically flushed. The power control and timer
controls for the valve package are housed inside the ATF control box. Depending on the application, the end-user simply dials in the flush frequency and flush
duration of the valve (instructions below). Based on the parameters that are programmed, the ball valve quickly opens and closes, minimizing the volume of
water that is flushed from the strainer.
RED POINTER
OUTER RING
(TIME BETWEEN
FLUSHES)
(FACTORY SET AT
24-HOURS)
GREEN POINTER
INNER RING
(LENGTH OF FLUSH)
(FACTORY SET AT
8-SECONDS)
System Components:
Installation Instructions:
The following instructions are to be used as a guide when installing the ATF on to an existing Thompson Strainer, with an existing PDA Package. In the
case of Installing the ATF alone, omit steps 2 through 4, and then route the power supply cord through the plastic wire clamp and insert the low-voltage plug
coming from the wall power supply into the jack in the bottom of the ATF timer enclosure.
1. Carefully thread the electric operating valve onto the flush port of the strainer, with the control switch facing away from strainer (be careful not to
cross-thread when installing).
2. Route the coiled cord through the plastic wire clamp and insert the plug into the jack on the bottom of the timer enclosure.
3. Route the other end of the coiled cord through the wire clamp on the PDA enclosure and insert the plug into one of the jacks on the bottom of the PDA
enclosure.
4. Insert the low-voltage plug coming from the wall power supply into the other jack on the bottom of the PDA enclosure.
OPERATION INSTRUCTIONS: FLUSH VALVE MUST BE PLUMBED TO ATMOSPHERE. THE FLUSH LINE SHOULD NOT HAVE ANY ELEVATION
AND SHOULD NOT BE PIPED TO A PRESSURIZED LINE.
NOTE: THE AUTOMATIC TIMER FLUSH PACKAGE NEEDS TO BE PROGRAMMED WHEN IT IS RECEIVED BY THE END-USER. The programming
is simple and takes only a few moments. However, because every application has different parameters that affect the required frequency between flushes
and the duration of the flush, the end-user must choose the controller's settings (please reference your strainer manual).
To program the ATF Controller:

Insert the 12-VDC plug coming from the Power Supply, or PDA unit, into the jack on the underside of the ATF box.

Plug the Power Supply into a 120-VAC outlet.
Please Note - In the case of an "Outdoor" use application, where there is a chance that the unit could get wet, it is the Customer's responsibility
to provide a safe power outlet, in terms of being water proof, and physically able to accept the plug-in power supply we provide. Miller - Leaman,
Inc. also recommends that the installation be only preformed by a qualified electrician, and that all Local, State, and National Electrical Codes be
followed.

Test for power by momentarily pressing the manual flush side of the control switch (lower switch light should come on and the valve will start to open).

Adjust the ON TIME (Valve Open) by turning the inner timer ring with the GREEN POINTER clockwise to increase duration. The ON TIME RANGE is
factory set at eight seconds. (see illustration above)

Adjust the OFF TIME (Valve Close) by turning the outer ring with the RED POINTER clockwise to increase duration. The OFF TIME RANGE is factory
set at twenty-four hours. (see illustration above)

Set the control switch to auto flush. The red off light on the timer will come on and the upper light on the switch will come on and stay on. During the
flush cycle the on light on the timer and the lower switch light will come on.
Control Switch: (see illustration above)
Control switch flushing is initiated by pressing and holding down the manual control switch located on the front of the controller. The manual flush control
switch can also be used to conveniently drain the water out of the strainer before removing the conical screen element from the strainer housing. A yellow
indicator arrow on top of the ATF Valve will rotate in sync with the ball valve to show the valve position (open or closed). When the manual flush control
switch is released, the valve will automatically close.
Please Note - when the Control Switch is not in the AUTO position, the timer is disabled, and there will be no Timed Control of the Flush Valve -
Only Manual Flush when the Control Switch is pressed to MANUAL.
Fischer-Robertson, Inc.
3890 Symmes Road
Hamilton, OH 45015
Ph 513-860-3445 Fx 513-860-4744
www.fischer-robertson.com
A
A. Timer Based Valve Controller (see illustration below)
sets the flush duration (length of the flush) and the flush interval (time between flushes)
B. Electric Ball Valve: designed for dirty water use. (see illustration below and next page)
OPERATION INSTRUCTIONS
FOR THE THOMPSON STRAINER:
I. AUTOMATIC TIMER FLUSH PACKAGE
II. GENERAL INFORMATION
III. ATF WIRING SCHEMATIC
A
COVER-PLATE SCREWS
(4) IN CORNERS OF BOX
(TIMER BASED VALVE
CONTROL SWITCH
12VDC@2.0 AMP POWER
FROM PDA OR 120VAC PLUG
IN POWER SUPPLY
OPEN/CLOSE
INDICATOR
B
