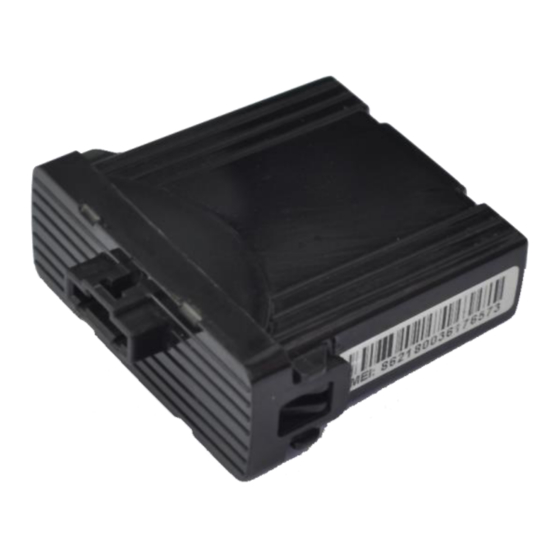

Mobicom Telematics – G102 User Guide
G102 User Guide
V2.1
Revision Date: 09/17/2018
Shenzhen Mobicom Telematics Co.,Ltd
Tel: + 86 755 8450 8126
RM602,Xichuangcheng,No.144,Zhiwuyuan Road,
Email: sales@mobicomtracking.com
Longgang District, Shenzhen,China
Website:
http://www.mobicomtracking.com
Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved.
1 / 18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mobicom Telematics G102
Summary of Contents for Mobicom Telematics G102
- Page 1 Mobicom Telematics – G102 User Guide G102 User Guide V2.1 Revision Date: 09/17/2018 Shenzhen Mobicom Telematics Co.,Ltd Tel: + 86 755 8450 8126 RM602,Xichuangcheng,No.144,Zhiwuyuan Road, Email: sales@mobicomtracking.com Longgang District, Shenzhen,China Website: http://www.mobicomtracking.com Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 1 / 18...
-
Page 2: Table Of Contents
9.4 Connect Digital Input –SOS button ......................16 9.5 Connect Digital Output –OUT1-Fuel pump control ..................16 9.6 Mounting the device ............................ 17 10 Warranty Terms..............................18 Contact Us .................................. 18 Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 2 / 18... -
Page 3: Copyright And Disclaimer
Mobicom Telematics is not liable for any loss or injury caused by using or referencing to any products. 2 Product Overview The G102 is a Mini GPS tracker designed for a wide range of vehicle tracking application. It has baisc I/O interfaces that can be used for GPS vehicle tracking. It’s internal GPS antenna has superior sensitivity and fast time to be located. -
Page 4: Product Functions
Geo-fence alarm(Cellular network) Towing alarm(Cellular network) Harsh Braking alarm(Cellular network) Harsh alarm(Cellular network) Acceleration 3 digital input (Ignition detecting, SOS button,Input3-reserved) 1 digital output- fuel pump /engine circuit cut Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 4 / 18... -
Page 5: Specifications
(160 to 450mAh customized) Operating temperature -25℃ -- 75℃ Operating humidity 5% -- 95% LED indicator Green led and Red led light indicates GPS and GSM status respectively Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 5 / 18... - Page 6 Cold start time < 29s(in average） GPS Module Warm start time < 28 s (in average） Acquisition -160dbm Sensitivity Acquisition channel 56-channel GPS Frequency 1575.42 MHz Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 6 / 18...
-
Page 7: Standard Package And Optional Accessories
5 Standard Package and Optional Accessories Name Picture Standard/Optional Parts Main unit Standard Wire harness Standard Magic tape Standard Relay Standard SOS button Standard Micro-USB Configuration Optional cable Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 7 / 18... -
Page 8: Appearance And Structure
IMEI Power and I/O wires Port Snap Joint Internal View LED lights SIM card Slot Cover Internal GPS antenna Backup Battery Switch Internal View Reverse Micro-USB Port Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 8 / 18... -
Page 9: First Use
Detailed wire harness definition .Refer to 9.1 wire harness definition ➢ If you tested G102 device at office, It’s better use the AC to DC Power supply as ➢ below picture: Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. -
Page 10: Led Light Indicators
To get a good effect of GPS signal in vehicle installation, please let the Internal GPS antenna side face to SKY horizontally as below picture: 7.4 Initializing Device Parameters via SMS command G102 can be configured via SMS. Refer to the command list as below: Function Name SMS Command Content... - Page 11 Position query *WHERE2# http://maps.google.com/ if can’t get GPS signal after received the maps?hl=en&q=+22.59 command within 5 Min, reply “Check Location 303,+113.87110 Fail” Cut fuel pump *SPJLX*P:753869*D:O21# Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 11 / 18...
-
Page 12: Tracking The Device In Mobicom Gps System
202.71.144.210 is IP,11909 is PORT 8 Tracking the device in Mobicom GPS system 8.1 Principle of communication The G102 device doesn’t like GPS navigator, it can’t work independently and must be working with a GPS tracking system. 8.2 Get the login ID Please get the Login ID of GPS tracking system from Platform providers(Mobicom sales) , and Copyright ©... -
Page 13: Login Software Platform
Platform Providers , and manage your vehicles and trackers in the software Platform. Mobicom Web App link: http://13.228.118.160:8080/login/ Login Interface as below: Main Interface as below: Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 13 / 18... -
Page 14: Installing Device In Vehicle
Wire Color Description DC 9V-55V(Standard 12/24 V) Black Ground Ignition(ACC) White Digital Input (Positive Triggered for Ignition Detected ) Positive trigger: Valid: Voltage input>6.2V Invalid: Voltage input<4V Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 14 / 18... -
Page 15: Connect The Power Wires
Connect the power cable (red) and ground wire (black) to the positive and negative electrodes of the vehicle battery respectively. 9.3 Connect Digital Input –Ignition Please find the signal wire near vehicle’s steering wheel which can indicate Ignition On/Off status, Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 15 / 18... -
Page 16: Connect Digital Input -Sos Button
Please use 12/24V DC normal close relay when cut the fuel pump circuit. Whether use 12V or 24V relay depends on the vehicle battery voltage(Truck 24V ,Car 12 V). Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 16 / 18... -
Page 17: Mounting The Device
To get a good effect of GPS signal in vehicle installation, please let the Internal GPS antenna side face to SKY horizontally as below picture: Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 17 / 18... -
Page 18: Warranty Terms
The warranty is not applicable to cases other than defects in material, design and ➢ workmanship. Contact Us Shenzhen Mobicom Telematics Co.,Ltd RM602,Xichuangcheng,No.144,Zhiwuyuan Road, Longgang District, Shenzhen,China Telephone number: +86 755 8450 8126 Email address: support@mobicomtracking.com Website: http://www.mobicomtracking.com Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 18 / 18...
