Mobicom Telematics – G102 User Guide
G102 User Guide
V2.3
Revision Date: 06/15/2018
Shenzhen Mobicom Telematics Co.,Ltd
Tel: + 86 755 8450 8126
RM602,Xichuangcheng,No.144,Zhiwuyuan Road,
Email: sales@mobicomtracking.com
Longgang District, Shenzhen,China
Website:
http://www.mobicomtracking.com
Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved.
1 / 18
Advertisement
Table of Contents
Summary of Contents for Mobicom Telematics G102
- Page 1 Mobicom Telematics – G102 User Guide G102 User Guide V2.3 Revision Date: 06/15/2018 Shenzhen Mobicom Telematics Co.,Ltd Tel: + 86 755 8450 8126 RM602,Xichuangcheng,No.144,Zhiwuyuan Road, Email: sales@mobicomtracking.com Longgang District, Shenzhen,China Website: http://www.mobicomtracking.com Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 1 / 18...
-
Page 2: Table Of Contents
9.4 Connect Digital Input –SOS button ......................16 9.5 Connect Digital Output –OUT1-Fuel pump control ..................16 9.6 Mounting the device ............................ 16 10 Warranty Terms..............................17 Contact Us .................................. 18 Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 2 / 18... -
Page 3: Copyright And Disclaimer

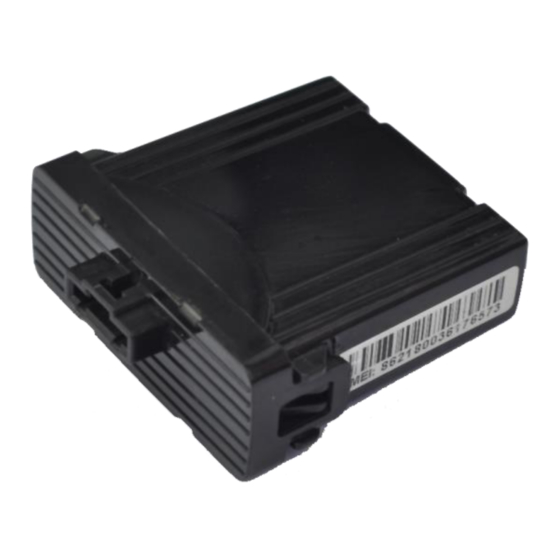

Mobicom Telematics is not liable for any loss or injury caused by using or referencing to any products. 2 Product Overview The G102 is a Mini GPS tracker designed for a wide range of vehicle tracking application. It has baisc I/O interfaces that can be used for GPS vehicle tracking. It’s internal GPS antenna has superior sensitivity and fast time to be located. -
Page 4: Product Functions
Over Speed alarm(GPRS) Alarm(Event) Geo-fence alarm(GPRS) Towing alarm(GPRS) Harsh Braking alarm(GPRS) Harsh alarm(GPRS) Acceleration 3 digital input (Ignition detecting, SOS button,Input3-reserved) 1 digital output- fuel pump /engine circuit cut Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 4 / 18... -
Page 5: Specifications
Green led and Red led light indicates GPS and GSM status respectively Power Switch 1 Backup battery switch on Mainboard Ignition detecting –positive trigger I/O Port 3 digital inputs Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 5 / 18... -
Page 6: Standard Package And Optional Accessories
< 3 s (in average） Acquisition -148dbm Sensitivity Acquisition channel 66-channel GPS Frequency 1575.42 MHz 5 Standard Package and Optional Accessories Name Picture Standard/Optional Parts Main unit Standard Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 6 / 18... -
Page 7: Appearance And Structure
Magic tape Standard Relay Standard SOS button Standard Mini-USB Configuration Optional cable 6 Appearance and Structure Side View Snap Joint IMEI Power and I/O wires Port Snap Joint Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 7 / 18... -
Page 8: First Use
SIM card Slot Cover Internal GPS antenna Backup Battery Switch Internal View Reverse Mini-USB Port 7 First Use 7.1 Insert SIM Card SIM card Slot Cover Backup Battery Switch Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 8 / 18... -
Page 9: Power On The Device
Detailed wire harness definition .Refer to 9.1 wire harness definition ➢ If you tested G102 device at office, It’s better use the AC to DC Power supply as ➢ below picture: Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. -
Page 10: Led Light Indicators
To get a good effect of GPS signal in vehicle installation, please let the Internal GPS antenna side face to SKY horizontally as below picture: 7.4 Initializing Device Parameters via SMS command G102 can be configured via SMS. Refer to the command list as below: Function Name SMS Command Content... - Page 11 All parameters recover to factory, except Factory set *SPJLX*P:753869*B:88# IP/Port/ID/APN Upgrade by OTA *SPJLX*P:753869*R:202.71.144.2 Note: 10,11909# IP should the upgrade server IP address. 202.71.144.210 is IP,11909 is PORT Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 11 / 18...
-
Page 12: Tracking The Device In Mobicom Gps System
Mobicom Telematics – G102 User Guide 8 Tracking the device in Mobicom GPS system 8.1 Principle of communication The G102 device doesn’t like GPS navigator, it can’t work independently and must be working with a GPS tracking system. 8.2 Get the login ID Please get the Login ID of GPS tracking system from Platform providers(Mobicom sales) , and Monitor the tracker’s current location and other information. -
Page 13: Installing Device In Vehicle
This document assumes you are aware of the inherent dangers of working in and around a vehicle and have a working understanding of electricity. Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 13 / 18... -
Page 14: Wire Harness Definition
Connect to an external relay to remotely cut off the vehicle fuel cable or engine power supply. SOS button Blue Digital Input (Negative Triggered for SOS Detected) Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 14 / 18... -
Page 15: Connect The Power Wires
Input3 connection as the same. Actually ,No need connect tracker’s Ignition detecting wire to vehicle’s real Ignition wire. Below picture shows the Ignition structure of vehicle. Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 15 / 18... -
Page 16: Connect Digital Input -Sos Button
Meanwhile check with your technical engineer ,confirm that the device is online and GPS positioning in the GPS tracking system. Below picture shows the installation position in small car. Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 16 / 18... -
Page 17: Warranty Terms
Our obligations are limited to repair of the defect or replacement the defective part or at its ➢ discretion replacement of the product itself. Repair or replacement under the terms of this warranty does not provide right to extension or ➢ Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 17 / 18... -
Page 18: Contact Us
The warranty is not applicable to cases other than defects in material, design and ➢ workmanship. Contact Us Shenzhen Mobicom Telematics Co.,Ltd RM602,Xichuangcheng,No.144,Zhiwuyuan Road, Longgang District, Shenzhen,China Telephone number: +86 755 8450 8126 Email address: support@mobicomtracking.com Website: http://www.mobicomtracking.com Copyright © 2018 Shenzhen Mobicom Telematics Co.,Ltd. All rights reserved. 18 / 18...
