Wolck 1GE+1FE+WiFi+CATV Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Chapter1: Overview

1.1 Product Description
1GE+1FE+WiFi+CATV dual mode ONU meets telecom operators FTTO (office), FTTD(Desk),
FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other
requirements and design an GPON/GEPON Gigabit Ethernet products
It is based on mature
.
GPON and Gigabit EPON technology, and has high ratio of performance to price, stable,
cost-effective, high reliability, easy management, configuration flexibility and good quality of service
(QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T
G.984.x, IEEE802.3ah and technical requirement of EPON Equipment from China Telecom. Dual
mode ONU can detect and exchange PON mode automatically.

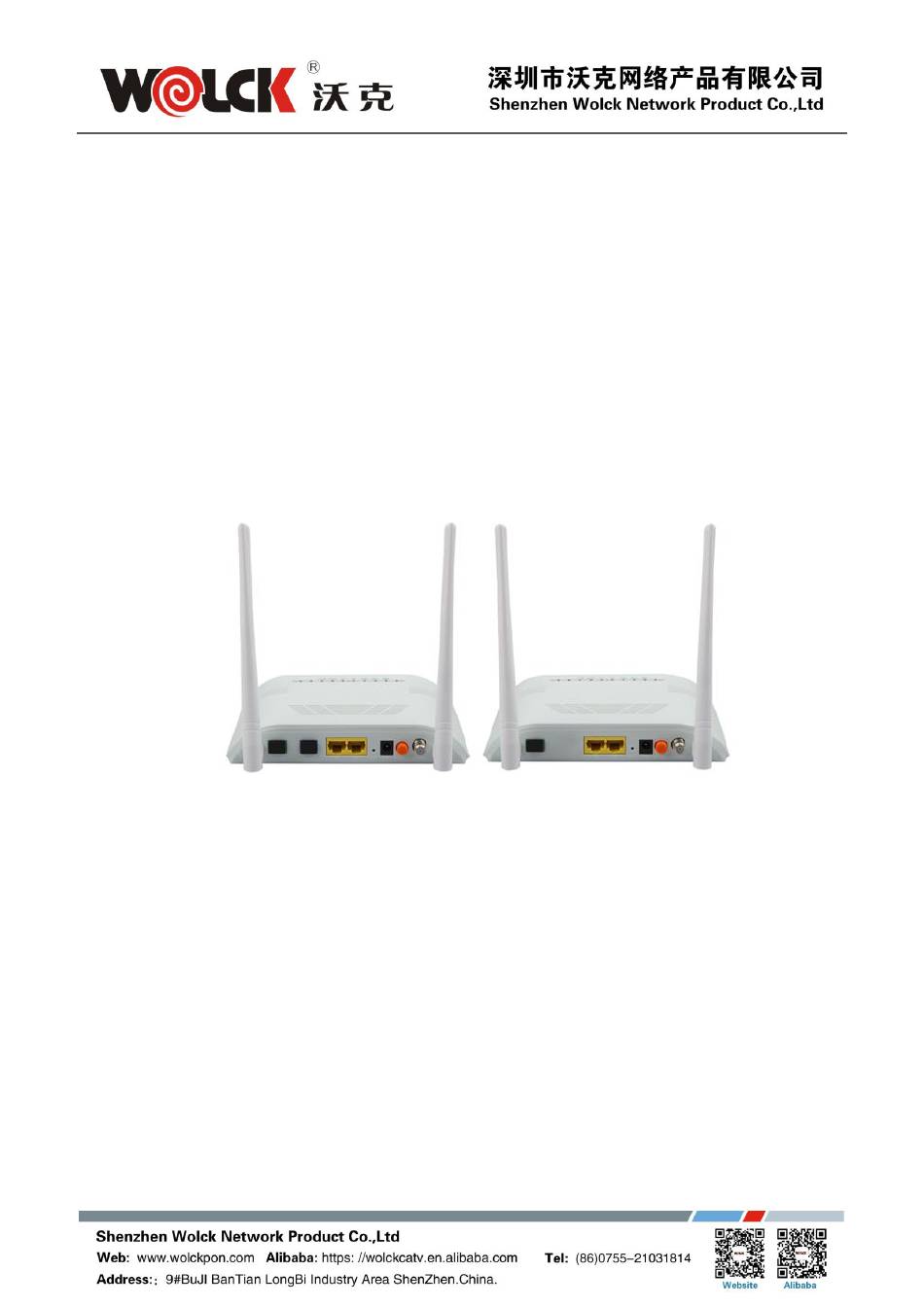

Figure 1 1GE+1FE+WiFi+CATV Dual Mode ONU
