Table of Contents

GPON 1GE+WiFi

Chapter1: Overview

1.1 Product Description
GPON 1GE+WiFi ONU meet telecom operators FTTO (office), FTTD(Desk),FTTH(Home)
broadband speed, SOHO broadband access, video surveillance and other requirements and
design an GPON Gigabit Ethernet products
It is based on mature and stable, cost-effective
.
GPON technology, high reliability, easy management, configuration flexibility and good quality
of service (QoS) guarantees to meet the technical performance of the module GPON
Equipment from China Telecom.

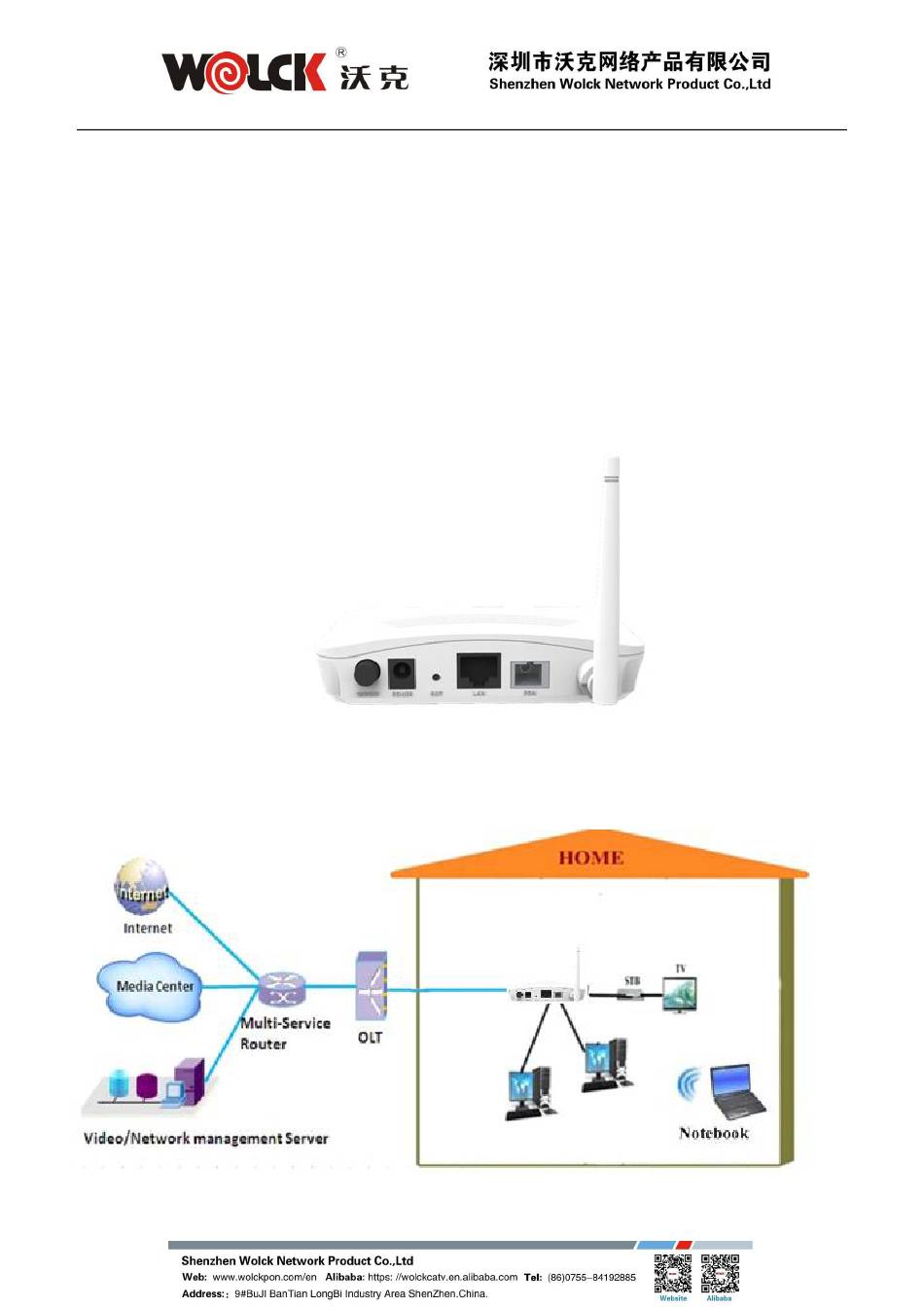

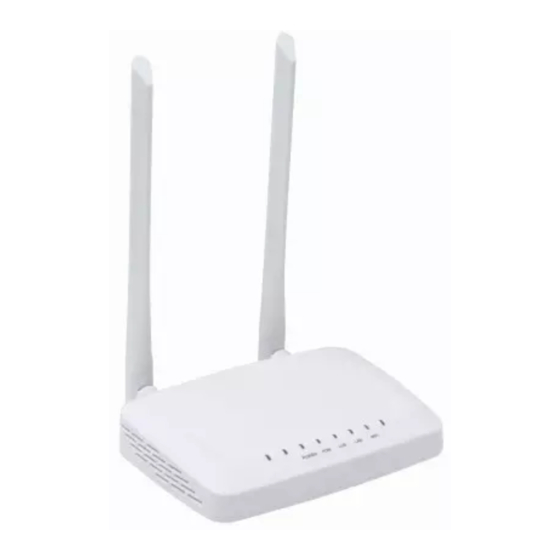

Figure 1 1GE+WiFi
1.2 Application Chart
Figure 2 Application Chart

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WK-3801W and is the answer not in the manual?

Questions and answers

Related Manuals for Wolck WK-3801W

Summary of Contents for Wolck WK-3801W

  • Page 1: Chapter1: Overview

    GPON 1GE+WiFi Chapter1: Overview 1.1 Product Description GPON 1GE+WiFi ONU meet telecom operators FTTO (office), FTTD(Desk),FTTH(Home) broadband speed, SOHO broadband access, video surveillance and other requirements and design an GPON Gigabit Ethernet products It is based on mature and stable, cost-effective GPON technology, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module GPON Equipment from China Telecom.

  • Page 2: Technical Parameters

    GPON 1GE+WiFi 1.3 Technical Parameters Technical item 1GE+WiFi 1GPON connector, SC single-mode/single-fiber, uplink 1.25Gbps, PON interface downlink 2.5Gbps Wavelength Tx1310nm,Rx 1490nm Optical interface SC connector 1x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100M LAN interface Full/Half, 1000M Full Duplex, RJ45 connector Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 1 internal antenna, 1 Wireless external antenna 5, For Status of POWER、LOS、PON、LAN、WiFi...

  • Page 3: Chapter2: Installation

    GPON 1GE+WiFi Chapter2: Installation 2.1 Installation Requirements To avoid equipment damage caused by improper use and personal injury, please observe the following precautions:  Do not place the device near water or in damp places, in order to prevent water or moisture from entering the device.

  • Page 4: Chapter3 : Web Management

    GPON 1GE+WiFi The device is powered down. Blink Device does not receive optical signals. Optical signal loss Device has received optical signal. The device is registered to the PON system. Device is not registered to the PON Registration system. Blink Device registration is incorrect.

  • Page 5: Default Configuration

    GPON 1GE+WiFi NOTE: About more ONU detail configurations should be configured via ONU web. 3.1 Default configuration The following is the default device configuration information.  Local (LAN access) Username: admin , Password: admin  LAN port management IP address: 192.168.1.1/24 3.2 Basic Configuration Figure 3 Web login Web login default username: admin, password: admin...
  • Page 6 GPON 1GE+WiFi Figure 5 Modify Loid and Password LOID Menu displays the current device Loid and Password informations. Loid: 0-24 bytes. Password: fixed 10 bytes. Note: All the changes take effect in the equipment after the restart. Figure 6 Restore Default...
  • Page 7 GPON 1GE+WiFi Restore Default: The operation to restore the device to its factory configuration. Figure 7 Upgrade Upgrade Menu displays the current equipment upgrades related information. Figure 8 Backup/ Restore Configuration Download: The operation to backup configuration from the device. Upload:The operation to restore configuration from a configuration file.

  • Page 8: Chapter4: Troubleshooting

    GPON 1GE+WiFi Chapter4: Troubleshooting 1. After power all the lights are lit？ Reasons: 1) Power connection errors; 2) Power is not normal. Solution: 1) Check that the power cable is connected; 2) The rear panel of the power supply is turned on. 2.
  • Page 9 GPON 1GE+WiFi Reasons: 1) Fiber optic connector is loose; 2) Central office equipment failure; 3) Fiber optic connectors are dust. Solution: 1) Inspect fiber is connected properly; 2) Cotton ball with alcohol swabbing fiber optic connectors; 3) Contact your operator.
