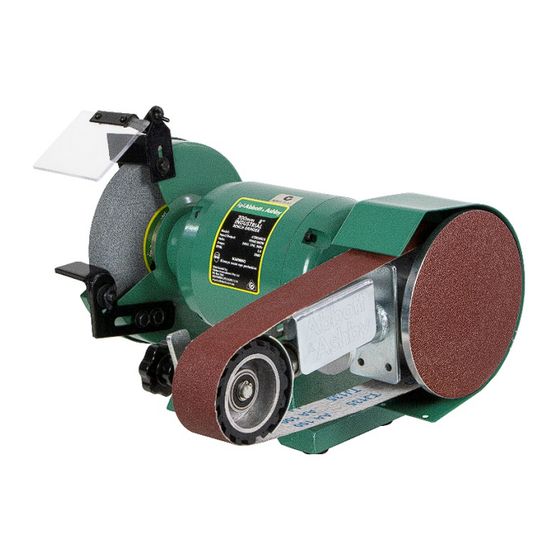

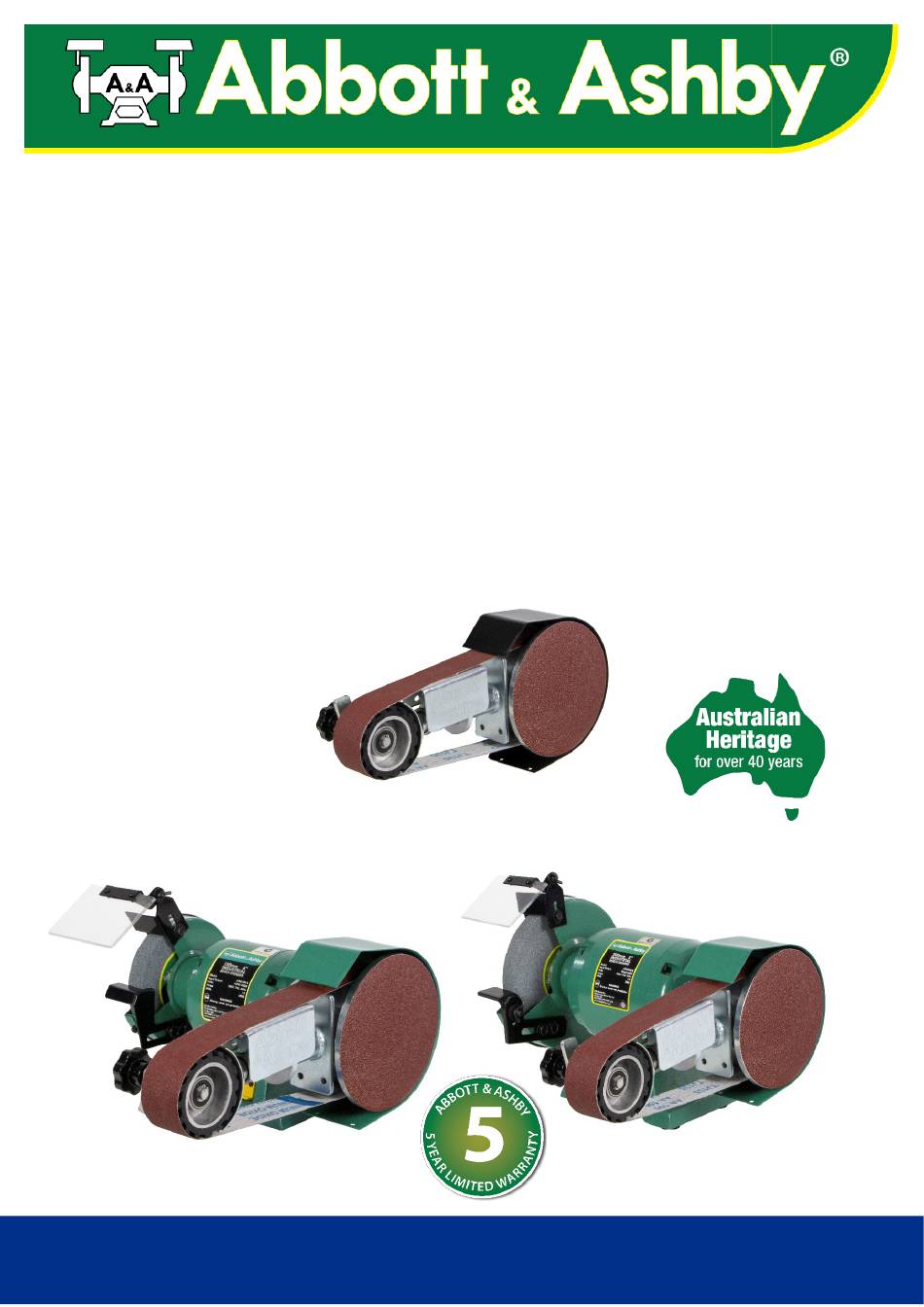

- Page 1 Linisher Installation Manual 808438 - AA362 808439 - AA362W6 808440 - AA362W8 AA362 362 Linishing Attachment 3 Year Limited Warranty AA362W6 AA362W8 362 Linishing Attachment 362 Linishing Attachment with 6” Bench Grinder with 8” Bench Grinder Abbott & Ashby Linisher Installation Manual...
- Page 2 THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK Abbott & Ashby Linisher Installation Manual...
-
Page 3: Table Of Contents
1. Contents 1. Contents ....................... 3 2. Introduction ......................4 3. Key Features......................4 4. ISO 7010 Symbols used in this manual ............... 5 5. Warnings ....................... 5 6. Standards and Approvals ..................7 7. Technical Specifications ..................8 8. Safety Instructions ....................9 9. -
Page 4: Introduction
2. Introduction Thank you for purchasing this product which has passed through our extensive quality assurance process. Every care has been taken to ensure that it reaches you in perfect condition. 3. Key Features • Patent pending design allows for fast changes to the working angle without disassembly in 6˚... -
Page 5: Iso 7010 Symbols Used In This Manual
4. ISO 7010 Symbols used in this manual Warning - Electrical safety Warning – Potential consequences of use outside of intended application(s). Includes environmental condition warnings. Mandatory warning Warning to disconnect power Read carefully 5. Warnings Read the manual carefully before starting and retain for future reference. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 6 e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. WORK AREA a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. b.
-
Page 7: Standards And Approvals
operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g. -
Page 8: Technical Specifications
Linishing surface Belt –915mm x 50mm (36" x 2") Disc –178mm (7") Contact Wheel – 89mm (3 ½") WEIGHT AA362W6 6” Industrial Bench Grinder and AA362 Linisher RPM no load speed 2880 WHEEL SIZE 150 x 25 x 12mm AMPS... -
Page 9: Safety Instructions
8. Safety Instructions Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Additional safety rules for Bench Grinders - Wheel a. Ensure that the power tool is disconnected from the mains supply when not in use, before servicing, lubricating or making adjustments and when changing accessories such as grinding wheels. -
Page 10: Product Pieces
B) Bracket C) 3 x Washers D) Wing Nut E) 2 x Short Fasteners F) Long Fastener AA362, AA362W6, AA362W8 (LINISHING ATTACHMENT) TOOL REST: A) Main Bracket B) Linishing Belt G) 3 x cap screws for guard C) Abrasive Disc... -
Page 11: Installation
10. Installation STEPS ONLY REQUIRED FOR INSTALLING ABBOTT & ASHBY AA362 LINISHING ATTACHMENT TO AN EXISTING BENCH GRINDER Remove the grinding wheel and guard off the side of the bench grinder that you would like to install the linishing attachment to. Keep the... - Page 12 Place the nut (J) over the washer and secure onto the shaft Install the guard (F) over the assembly and tighten the 3 x 6mm cap screws Install the backing plate (D) to the drive pulley with the 6 x fasteners (E) Attach the abrasive disc (C) to the backing plate.
- Page 13 STEPS REQUIRED FOR AA362W6 AND AA362W8 COMPLETE UNITS Install the guard (F) over the assembly and tighten the 3 x cap screw (G) Attach the abrasive disc (C) to the backing plate. Hold firmly for a few seconds to ensure the adhesive activates.
- Page 14 TRACKING: Turn the unit on and inspect the movement of the belt. If adjustments are required move the lever into the loose position (A) To correct any tracking concerns simply turn the knob (B) to adjust the tracking and once adjusted lock the lever gently back into place (C). EYESHIELD: A) Bracket B) 2 x Washers...
- Page 15 MOUNTING: The grinder can be secured with screws or nuts and bolts to a workbench or pedestal stand. The length of the fasteners will depend on the thickness of the work surface. Where a steel bench is used it is best to mount the grinder to a board, then attach the board to the bench as this will also minimise vibration.
- Page 16 POSITIONING: When purchased on its own the AA362 Linisher can be mounted on either the left or right hand side of the bench grinder to suit your workflow. There is an additional plate included in the fitting kit that can be installed on the guard to...
-
Page 17: Maintenance
11. Maintenance WARNING: REMOVE THE POWER CORD FROM THE POWER SUPPLY BEFORE CARRYING OUT ANY MAINTENANCE a. Use a soft dry brush and brush down the body of the unit regularly to ensure there isn’t a build of dust and debris on the on the unit. b. -
Page 18: Warranties - Terms And Conditions
16. Warranties – Terms and Conditions White International Pty Ltd – Abbott & Ashby Linisher AA362 has a 3 Year Limited Product Warranty not including abrasives White International Pty Ltd – Abbott & Ashby Linisher AA362W6 and AA362W8 have a 5 Year Limited Product Warranty on... - Page 19 THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK HIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK Abbott & Ashby Linisher Installation Manual...
- Page 20 www.whiteint.com.au www.whiteint.co.nz Please always refer to our website for further technical information & new product innovations. Disclaimer: Every effort has been made to publish the correct information in this manual. No responsibility will be taken for errors, omissions or changes in product specifications. ©...
