M‑I SWACO MONGOOSE PRO Shale Shaker
Figure 6. MONGOOSE PRO Triple Shaker with Common Possum Belly and Knife Gate
• Quad Shakers with Feed Manifold Assembly, Header Boxes & Butterfly Valve Bypasses
o Mud feeds into the back of the feed manifold assembly with the flow evenly distributed to each of the
header boxes (Refer to Figure 7).
o Butterfly valves located at each header box are used to open or close flow to a particular shaker.
o Butterfly valves located at the top of the feed manifold are used to close off flow to shakers enabling
the use of a cement bypass.

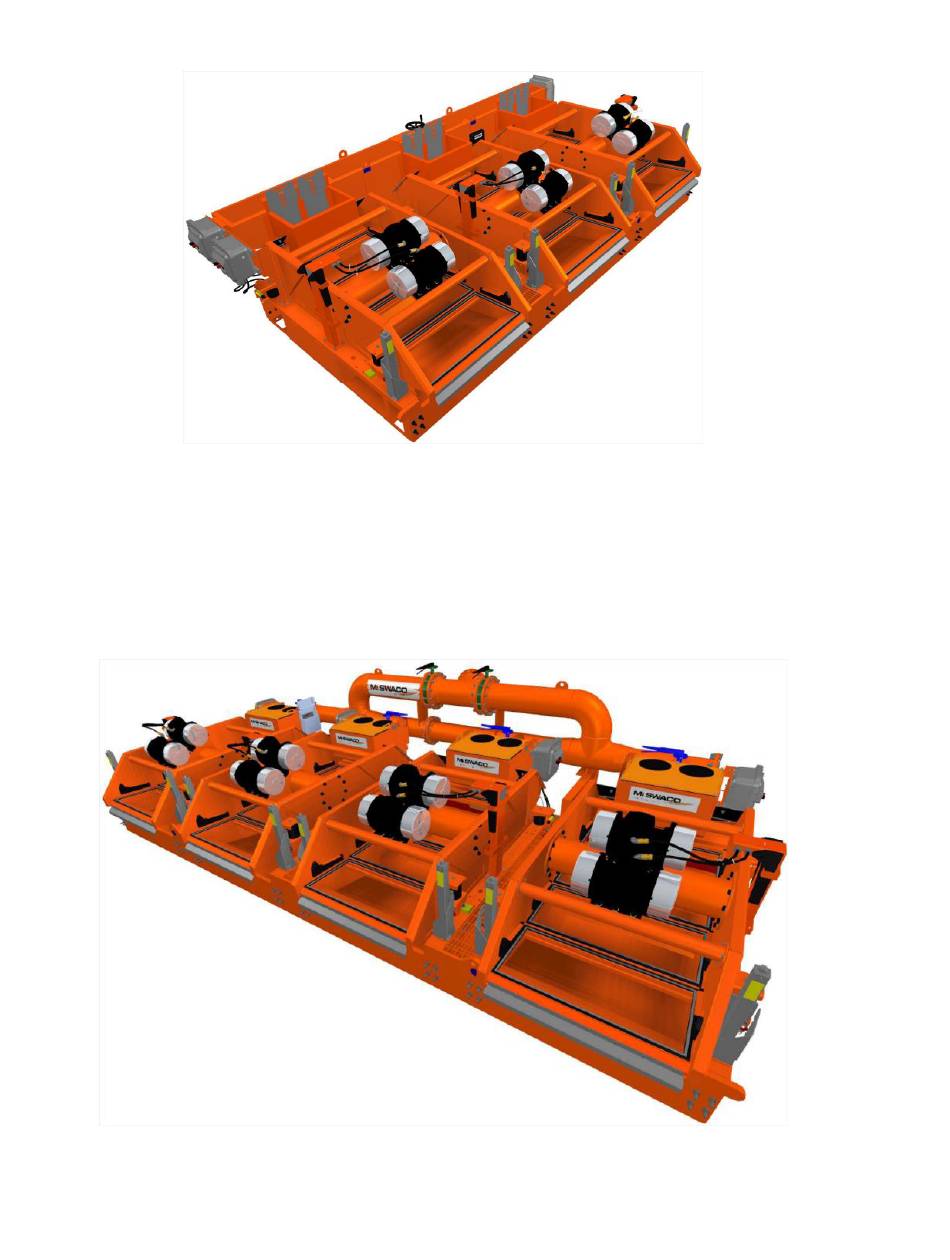

Figure 7. MONGOOSE PRO Quad Shakers
6 Field Installation and Operation Manual 9092F02001AENG (D) 6
