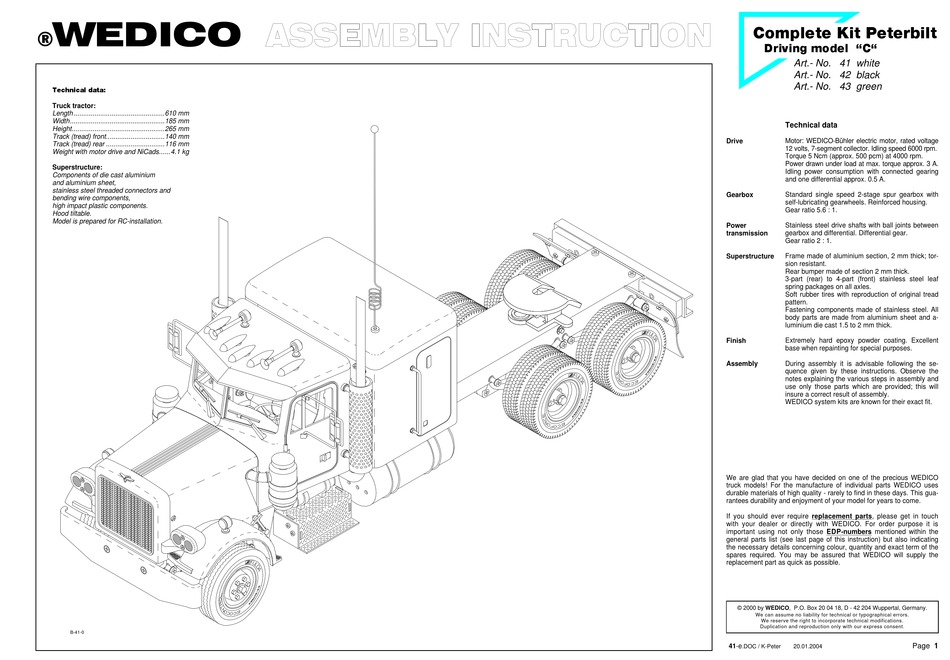

WEDICO
®
qÉÅÜåáÅ~ä=Ç~í~W=
Truck tractor:
Length ................................................610 mm
Width..................................................185 mm
Height.................................................265 mm
Track (tread) front...............................140 mm
Track (tread) rear ...............................116 mm
Weight with motor drive and NiCads......4.1 kg
Superstructure:
Components of die cast aluminium
and aluminium sheet,
stainless steel threaded connectors and
bending wire components,
high impact plastic components.
Hood tiltable.
Model is prepared for RC-installation.
B-41-0
`çãéäÉíÉ=háí=mÉíÉêÄáäí=
aêáîáåÖ=ãçÇÉä== ` =
Art.- No. 41 white
Art.- No. 42 black
Art.- No. 43 green
Technical data
Drive
Motor: WEDICO-Bühler electric motor, rated voltage
12 volts, 7-segment collector. Idling speed 6000 rpm.
Torque 5 Ncm (approx. 500 pcm) at 4000 rpm.
Power drawn under load at max. torque approx. 3 A.
Idling power consumption with connected gearing
and one differential approx. 0.5 A.
Gearbox
Standard single speed 2-stage spur gearbox with
self-lubricating gearwheels. Reinforced housing.
Gear ratio 5.6 : 1.
Stainless steel drive shafts with ball joints between
Power
gearbox and differential. Differential gear.
transmission
Gear ratio 2 : 1.
Superstructure
Frame made of aluminium section, 2 mm thick; tor-
sion resistant.
Rear bumper made of section 2 mm thick.
3-part (rear) to 4-part (front) stainless steel leaf
spring packages on all axles.
Soft rubber tires with reproduction of original tread
pattern.
Fastening components made of stainless steel. All
body parts are made from aluminium sheet and a-
luminium die cast 1.5 to 2 mm thick.
Finish
Extremely hard epoxy powder coating. Excellent
base when repainting for special purposes.
Assembly
During assembly it is advisable following the se-
quence given by these instructions. Observe the
notes explaining the various steps in assembly and
use only those parts which are provided; this will
insure a correct result of assembly.
WEDICO system kits are known for their exact fit.
We are glad that you have decided on one of the precious WEDICO
truck models! For the manufacture of individual parts WEDICO uses
durable materials of high quality - rarely to find in these days. This gua-
rantees durability and enjoyment of your model for years to come.
If you should ever require replacement parts, please get in touch
with your dealer or directly with WEDICO. For order purpose it is
important using not only those EDP-numbers mentioned within the
general parts list (see last page of this instruction) but also indicating
the necessary details concerning colour, quantity and exact term of the
spares required. You may be assured that WEDICO will supply the
replacement part as quick as possible.
© 2000 by WEDICO, P.O. Box 20 04 18, D - 42 204 Wuppertal, Germany.
We can assume no liability for technical or typographical errors.
We reserve the right to incorporate technical modifications.
Duplication and reproduction only with our express consent
.
41-e
.DOC / K-Peter
20.01.2004
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Peterbilt 41 and is the answer not in the manual?

Questions and answers

Summary of Contents for WEDICO Peterbilt 41

  • Page 1 You may be assured that WEDICO will supply the replacement part as quick as possible. © 2000 by WEDICO, P.O. Box 20 04 18, D - 42 204 Wuppertal, Germany. We can assume no liability for technical or typographical errors.
  • Page 2 Screws and other small parts at 1:1 ill. 1 Self-cutting screw M3 x 8 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Nut M4 M4 x 25 Part no. 111 Part no. 19 Part no. 18 `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë Self-cutting screw M3 x 6 Nut M3 M4 x 8 Part no.
  • Page 3 Assembly of the doors ill. 3 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Qty. Assembly part Qty. Assembly part `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë 21 Tapping screw 2.2 x 4.5 822 Inside door coating 282 Fixing clip 823 Door hinge 1 397 Tapping screw 2.2 x 6.5 824 Door hinge 2 469 Lock guide, door 825 Door hinge, top 470 Mirror hinge, bottom...
  • Page 4 Roof section ill. 6 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Qty. Assembly part Qty. Assembly part `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë --- Nut M3 655 Adhesive pad, 4 Screw M3 x 16 double-sided 13 Washer 3.2 706 Roof lamp, chromed 707 Horn 15 Serrated washer 3.2 19 Nut M4 713 Bulb 3V oççÑ=ëÉÅíáçå= 26 Bushing 4 x 0.5 x 7...
  • Page 5 View from below showing the location of components mounted onto the frame ill. 9 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Steering servo Front PCB Tank Ribbon cable Rear axle Rear PCB `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë mêÉîáÉï=çÑ=íÜÉ== ÉäÉÅíêáÅ~ä=ëóëíÉã=áåëí~ää~íáçå= The illustration at the left shows the locations of the PCBs and the routing of the ribbon cable beneath the frame.
  • Page 6 Components attached to the rear frame section ill. 11 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Qty. Assembly part Qty. Assembly part `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë --- Nut M3 73 Shaft for fifthwheel 1 Screw M3 x 6 74 Draw spring 2 Screw M3 x 8 341 Blinker lens high, orange 21 Tapping screw 2.2 x 4.5 342 Lens/rear light high, red `çãéçåÉåíë=~íí~ÅÜÉÇ=íç=íÜÉ==...
  • Page 7 Stepboard section ill. 13 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Qty. Assembly part Qty. Assembly part `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë 21 Tapping screw 2.2 x 4.5 742 Screw M2 x 5 114 Screw M2 x 6 843 Threaded bushing M2 x 8 368 Case for air tank 844 Stepboard Peterbilt 369 Bridging clamp 845 Stepboard plate for air tank...
  • Page 8 Installation of drive unit and steerage ill. 16 `çãéäÉíÉ=háí=mÉíÉêÄáäí= `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë jçìåíáåÖ=íÜÉ=ÇêáîÉ=ìåáí=~åÇ=íÜÉ=ëíÉÉê~ÖÉ= 16.1 Gearbox Once assembled, the gearbox is inserted from above into the ope- ning in the frame and secured at the sides with screws 2, washers 13 and M3 nuts. At the same time the drive shaft 1048 (see ill. 15) is in- Moment of torsion of the servo should serted at the joint balls between the gearbox and the differential.
  • Page 9 Attachment of the cab and the hood onto the chassis ill. 18 `çãéäÉíÉ=háí=mÉíÉêÄáäí= `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë ^íí~ÅÜãÉåí=çÑ=íÜÉ=Å~Ä=~åÇ=íÜÉ=ÜççÇ=çåJ premounted rear panel íç=íÜÉ=ÅÜ~ëëáë= 18.1 Attachment of the cab and the hood Fix the cab onto both steps with screws 1, serrated washers 15 and nuts M3.
  • Page 10 Preparation of the Sleeper tail door ill. 19 to terminal strip `çãéäÉíÉ=háí=mÉíÉêÄáäí= for roof lamps `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë mêÉé~ê~íáçå=çÑ=íÜÉ=päÉÉéÉê=í~áä=Çççê= Switch panel Pin the toggle switches of the switch panel through the holes provi- ded in the tail door 1265, and secure them from behind with knurled nuts 210.
  • Page 11 Mounting of Sleeper, speed controller and tank ill. 21 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Qty. Assembly part Qty. Assembly part `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë --- Nut M3 503 Insulating strip 10 Self-cutting screw M3 x 6 802 Tank cover, chromed 11 Screw M3 x 30 804 Rod for tank, long 24 Washer 2.2 805 Tank support 54 Clamp fitting, standard...
  • Page 12 Attaching the small exterior components ill. 22 `çãéäÉíÉ=háí=mÉíÉêÄáäí= Qty. Assembly part Qty. Assembly part `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë 228 Windscreen wiper -lh- 718 Antenna with ball 228 Windscreen wiper -rh- 842 Wing Peterbilt, chromed 281 Mirror, chromed 851 Sun visor Peterbilt 655 Adhesive pad, double- 852 Mirror support sided ^íí~ÅÜáåÖ=íÜÉ=ëã~ää=ÉñíÉêáçê=ÅçãéçåÉåíë=...
  • Page 13 Wiring diagram of the electrical equipment ill. 23 12V Battery `çãéäÉíÉ=háí=mÉíÉêÄáäí= Terminal strip `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë roof lamps black black qÜÉ=ÉäÉÅíêáÅ~ä=ëóëíÉã= Charging cable The wiring diagram shows the cable connections for the individual electrical components Brake light Controll LED yellow/green blue 23.1 Mounting the switching panel and lamp PCBs black red/black The switch panel is inserted into the tail door of the Sleeper as desc-...
  • Page 14 LED starts blinking again. will go on. If the light switch is on, the headlamps, the roof lamps and dard chassis) being offered within our programme WEDICO System- Warning: Ensure that the banana plugs for the charging cable do This signifies that the programming procedure of the speed controller the tail lamps will light.
  • Page 15 `çãéäÉíÉ=háí=mÉíÉêÄáäí= `çãéäÉíáçå=çÑ=~ëëÉãÄäó=Öêçìéë Complete list of parts necessary for the assembly (please use EDP-number when ordering spare parts) Qty. Assembly part EDP-No. Qty. Assembly part EDP-No. Qty. Assembly part EDP-No. Qty. Assembly part EDP-No. dÉåÉê~ä=é~êíë=äáëí= --- Nut M3 ..............20040 114 Screw M2 x 6........ 21268 775 Support, radiator Peterbilt ........
