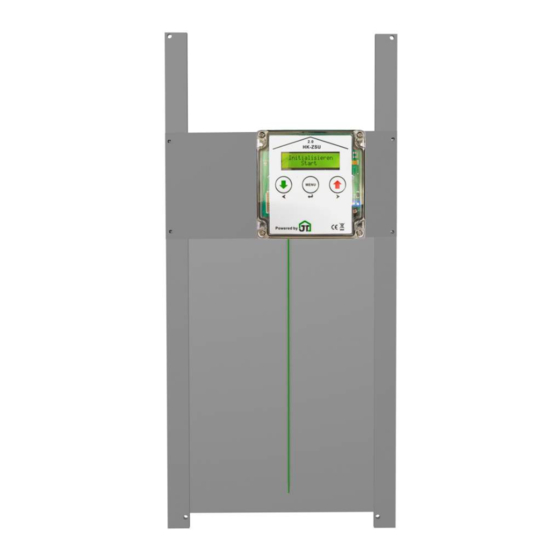

- Page 1 Original Operating Instructions Flap Actuator HK2.0 10/2020 Automatic Chicken Door Flap Actuator HK2.0 (standalone device) HK2.0-RH HK2.0-RE HK2.0-RG HK2.0-RB Description and Operating Instructions...
-
Page 2: Table Of Contents
Original Operating Instructions Flap Actuator HK2.0 10/2020 Table of Contents General Description.......................1 Installation Instructions......................2 HK2.0 – standalone device....................2 HK2.0-R..........................2 Optional Modules.......................3 Operation and Settings......................4 General Structure.......................4 Settings and Changes.......................5 Factory Setting......................5 Main menu level “Flap actuator”..................6 Submenu Timer 1 / Timer 2..................6 Submenu Mode......................6 Submenu Delay......................7 Submenu Light Sensor....................7... -
Page 3: General Description
10/2020 General Description JOSTechnik’s electronic flap actuator HK2.0 (hereinafter referred to as HK 2) is a further development of JT-HK’s series of flap actuators, which have been on the market for a number of years. It is used for the automated opening and closing of sliders to poultry houses. -
Page 4: Installation Instructions
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 Radio remote control with 4 JT-FB4T keys are required ◦ for operating the slider and the lighting Attractor light (no dimmer function) ◦ 1 x LED light bar up to max. 12 V / 12 W can be connected directly You can easily retrofit optional sensors and modules yourself. -
Page 5: Optional Modules
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 Optional Modules Attractor light Remote display Remote key Plug-in Power External light Supply sensor *The pictures show the cable colours commonly used. The optional remote display indicates the status of the slider (OPEN/CLOSED) over a dis- tance of about 30 metres. -
Page 6: Operation And Settings
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 If you have ordered a radio remote control, the receiver is pre-installed in the device and paired with the transmitter. This means that the transmitter and receiver have a common communication address. You do not have to do anything else. If you want to retrofit the radio remote control yourself at a later date, please refer to the pictures below. -
Page 7: Settings And Changes
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 It is imperative that you exit the menu so that the device switches back to automatic mode. No functions are possible within the menu. The menu is structured and divided into the following main and sub-menu levels: Flap actuator Date / Time Extras... -
Page 8: Main Menu Level "Flap Actuator
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 Parameter / Setting value Factory setting Adjustment range (specified) Light duration 00 min 05 – 60 min Language German German, English, French, Dutch Main menu level “Flap actuator” Submenu Timer 1 / Timer 2 Setting the times for automatic opening (▲) and closing (▼) of the slider. Entering times is limited to the range between 3:00 am and 10:59 pm. -
Page 9: Submenu Delay
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 Submenu Delay This submenu is only displayed if mode 2 -/x is set for the evening. The adjustable delay time only applies to the automatic closing of the slider and does not affect opening or man- ual operation. -
Page 10: Main Menu Level "Time / Date
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 < Castor > Note: No castor is required with the HK-ZSU-Rx. The locking mechanism is located directly in the control unit. Main Menu Level “Time / Date” The device is delivered from the factory with the current time and date. If you are in a dif - ferent time zone, if the clock runs incorrectly after changing the battery or if you identify a rate deviation, you can set the time and date manually. -
Page 11: Main Menu Level "Reset
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 < Language > German Main Menu Level “Reset” < Reset > The key key starts resetting all set values to the factory setting automatically. The time and date are retained. After resetting, the device runs a self-test and then automatically switches on and defines the lower end position. -
Page 12: Operating Displays
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 Operating Displays Various operating data, parameters and settings are shown in the display. Top line: Weekday Current time Standard time / Summer-time (but not deactivated) Bottom line alternately: Current brightness Open brightness Close brightness Software version Operating mode Last control command Light sensor status (bright/dark) -
Page 13: Troubleshooting And Service
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 Closed Green (flashing) Key ▲ Switch to automatic mode Open Red on Explanation: If the automatically closed slider is opened again manually in the evening, it remains OPEN until the slider is closed again manually or the automatic forced closing is activated at 11:00 pm and the device is switched to automatic mode. -
Page 14: Technical Data
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 If you want to send the device to the service department for inspection / repair, please note the following: Send the device as a simple parcel. Include a copy of your invoice / delivery note. ... -
Page 15: Declaration Of Conformity
In the event of any change to the machine that has not been agreed with us, this declaration loses its validity. Manufacturer/Authorised representative: JOSTechnik owner Ilka Jost Martha-Brautzsch-Str. 26a, 04838 Doberschütz Germany Tel.: +49 (0) 34244/59566 Description of the machine •... -
Page 16: Changes, Additions And Extensions
Original Bedienungsanleitung Klappensteller HK2.0 10/2020 Changes, Additions and Extensions Seite 14 von 14...
