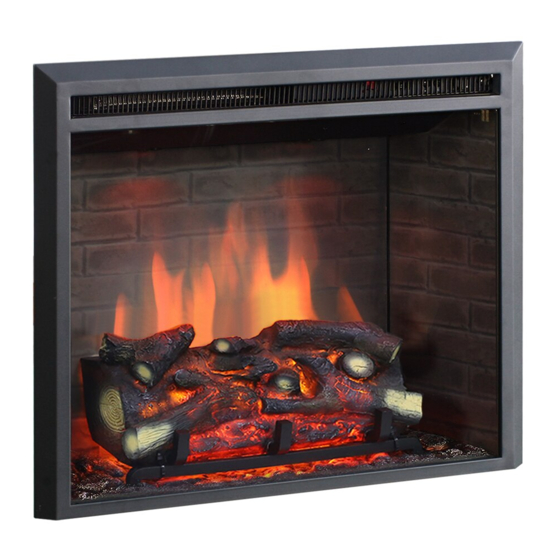

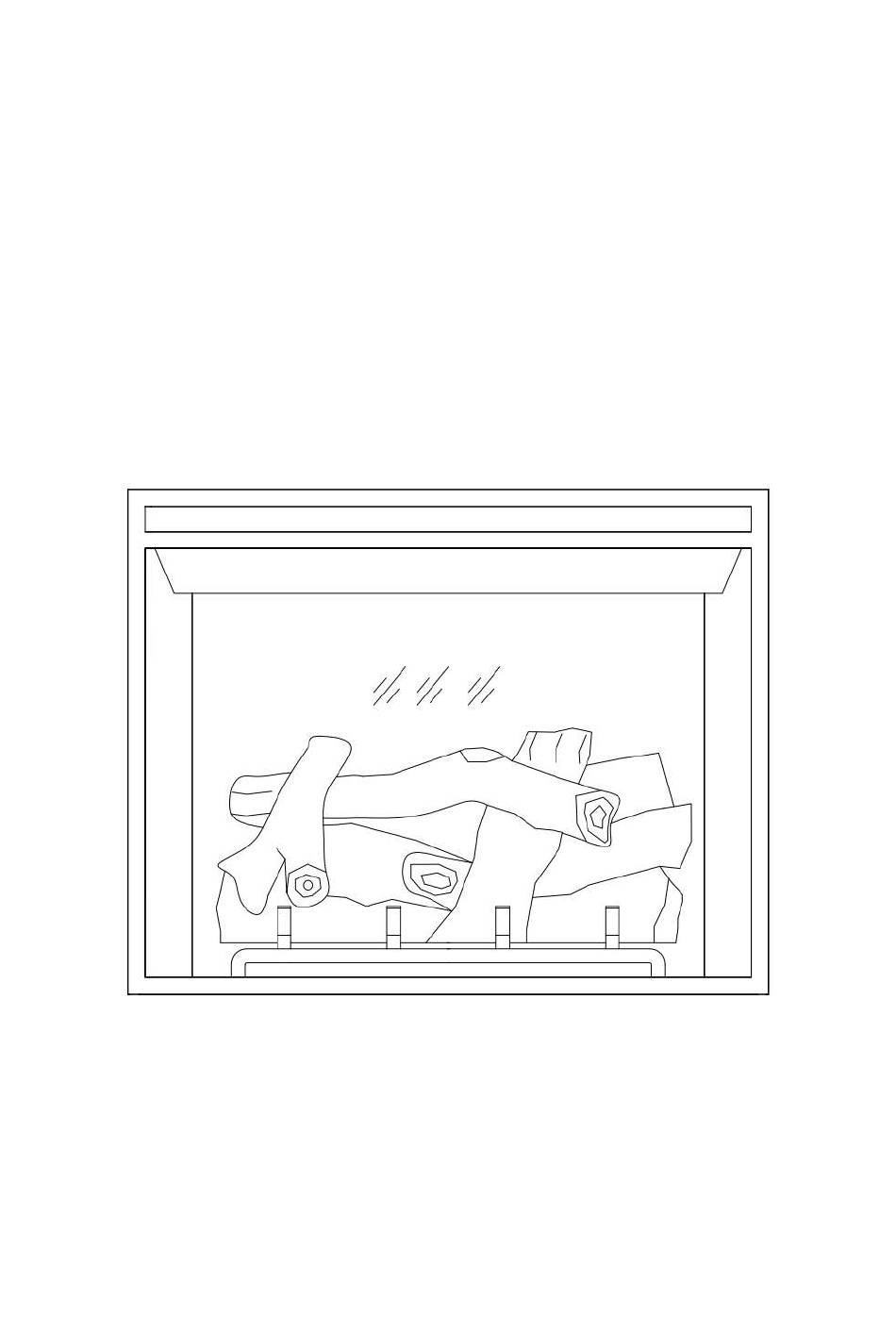

- Page 1 Inset LED Electric Fire Model No.EF42-45C INSTALLATION AND OPERATION INSTRUCTIONS This product is only suitable for well insulated spaces or occasional use. Please read the instructions carefully before installation or use and keep for future reference...
-
Page 3: Table Of Contents
CONTENTS 1. Important Safety Information ·········································································· 1 2. Technical Specifications ··················································································· 3 3. Parts and Hardware ························································································· 4 4. Appliance Dimensions ······················································································ 5 5. Installation Instructions ··················································································· 6 6. Operating Instructions ····················································································· 8 6a. Manual Control Panel ················································································ 9 6b. Remote Controls ······················································································ 11 7. -
Page 4: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 5 COVER”. Warning: in order to avoid overheating, do not cover the appliance. 1.11 To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet. 1.12 Keep the power cord away from hot surfaces and hot conditions.
-
Page 6: Technical Specifications
1.19 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 7: Parts And Hardware
Type of heat output / room temperature control Single stage heat output and no room temperature control Two or more manual stages, no room temperature control With mechanic thermostat room temperature control With electronic room temperature control Electronic room temperature control plus day timer Electronic room temperature control plus week timer Other Control Options Room temperature control, with presence detection... -
Page 8: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm Units: mm Model EF42C EF43C EF44C EF45C... -
Page 9: Installation Instructions
5. INSTALLATION INSTRUCTIONS ALWAYS unplug this fireplace heater before assembly or cleaning, or before relocating. Failure to do so could result in electric shock, fire, or personal injury. KEEP drapery and other furnishings at least 0.9m from the front and sides of the electric fireplace. AFTER installation, ensure that there is ≥0.004 ㎡... - Page 10 Opening sizes ranges Width Height Depth (min) Depth (suggest) EF42C 556-607 510-541 EF43C 640-690 590-620 EF44C 740-790 590-620 EF45C 820-871 650-675 Prepare the opening and outlet, place the unit into the framed opening gently and no fixing brackets are needed.
-
Page 11: Operating Instructions
4) Insert into a cabinet or wood mantel. It is available to install the unit into a wood cabinet or mantel. Also, it would be better to keep the depth at 205mm. The clearance from the top of the unit to the bottom of TV or something else sitting on the cabinet should be 203mm at least. -
Page 12: 6A. Manual Control Panel
6.1 The appliance can be operated by both remote control and the manual controls on the appliance. NOTE: To use both remote and manual functions the manual on/off switch must be in ‘ON’ position. In order to prevent the product becoming too hot, there is 10s delay when turning on the heater and a 10s delay when turning off the heater fan. - Page 13 BUTTON NAME FUNCTION Turn the main power switch on. A long “beep” sound will be heard when the switch is turned at ON Position “I”. POWER SWITCH Note: The remote control will lost the memory for function settings when the switch is turned at OFF Position “O”.
-
Page 14: 6B. Remote Controls
Turn it to setting 9 first and when the room has reached a desired level, turn the rotary switch counterclockwise slowly until the thermostat just ‘clicks’ off. The thermostat will then maintain the room THERMOSTAT at this selected level. To increase the temperature, turn the rotary switch clockwise to a higher setting. -
Page 15: Maintenance
The flame will be cycled from Flame A – FLAME Flame B – Flame C –Flame Off. To turn on the heater on half heat setting or LOW HEAT turn off the heater. To turn on the heater on full heat setting or HIGH HEAT turn off the heater. -
Page 16: Others
household glass cleaner. The front glass panel should always be completely dried with a clean, lint-free cloth or paper towel. CAUTION: Abrasive cleaners should not be used on the glass panel. Liquids should not be sprayed directly onto any surface of the unit. 8.
