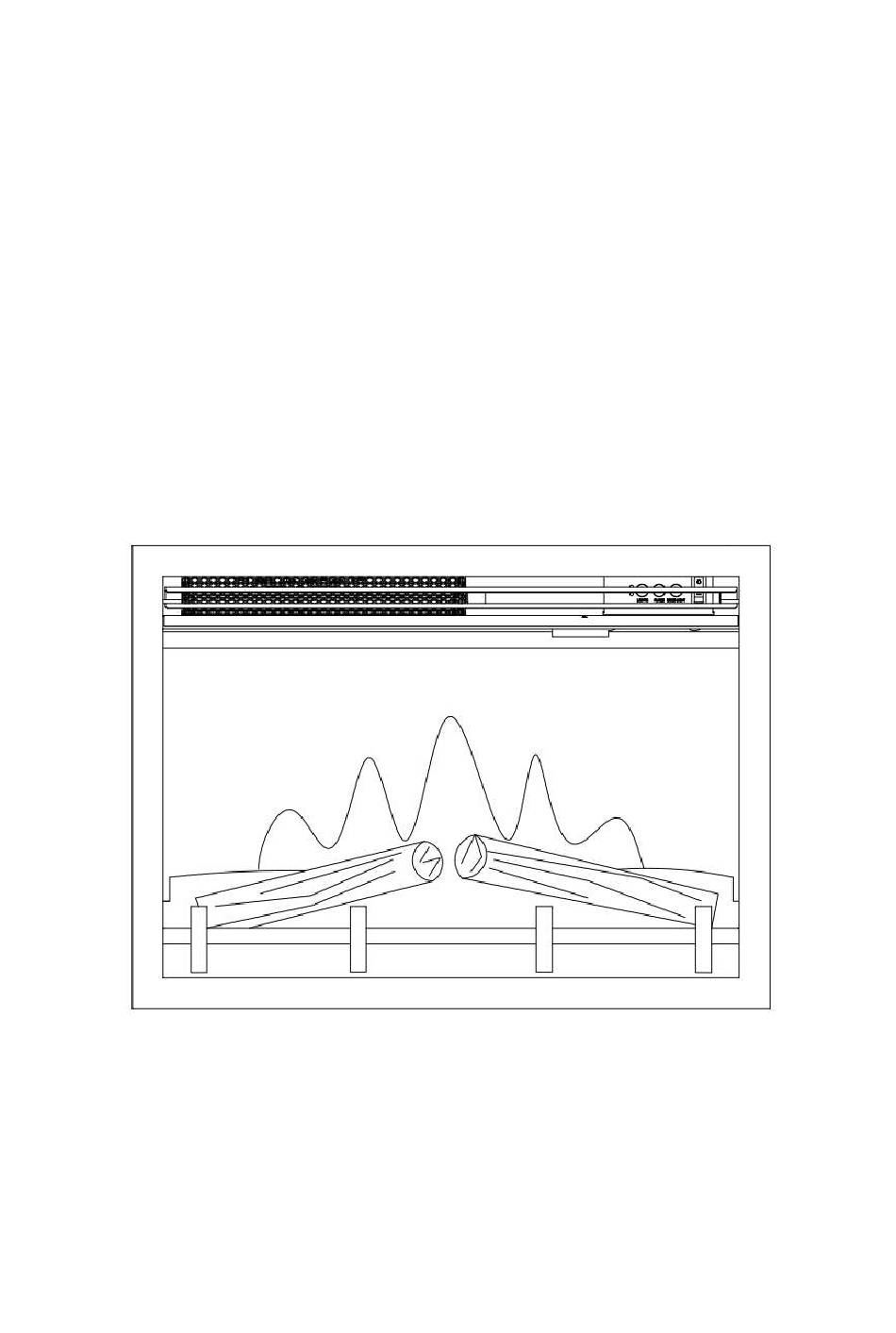

Inset LED Electric Fire
Model No.EF119B
Suit with Fireplace Mantel Model No.MT119X (X=A,B,C)
INSTALLATION AND OPERATION INSTRUCTIONS
This product is only suitable for well insulated spaces or occasional use.
Please read the instructions carefully before installation or
use and keep for future reference
Advertisement
Table of Contents
Related Manuals for SIELINE EF119B
Summary of Contents for SIELINE EF119B
- Page 1 Inset LED Electric Fire Model No.EF119B Suit with Fireplace Mantel Model No.MT119X (X=A,B,C) INSTALLATION AND OPERATION INSTRUCTIONS This product is only suitable for well insulated spaces or occasional use. Please read the instructions carefully before installation or use and keep for future reference...
-
Page 3: Table Of Contents
CONTENTS 1. Important Safety Information ·········································································· 1 2. Technical Specifications ··················································································· 3 3. Parts and Hardware ························································································· 4 4. Appliance Dimensions ······················································································ 5 5. Installation Instructions ··················································································· 5 6. Operating Instructions ····················································································· 8 6a. Manual Control Panel ················································································ 9 6b. Remote Controls ······················································································ 10 7. -
Page 4: Important Safety Information
1. IMPORTANT SAFETY INFORMATION 1.1 Read all of the instructions carefully before using the appliance. 1.2 For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. 1.3 Do not use this appliance in the immediate surroundings of a bath, a shower or a swimming pool. - Page 5 COVER”. Warning: in order to avoid overheating, do not cover the appliance. 1.11 To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet. 1.12 Keep the power cord away from hot surfaces and hot conditions.
-
Page 6: Technical Specifications
2. TECHNICAL SPECIFICATIONS Model No.: EF119B Supply Voltage: AC 220-240V 50Hz Maximum power consumption: 2KW Power for flame effect: 6W (LED 2W + Motor for flame 4W) Power for mood light: DC12V, Max 3.12W, 0.26A... -
Page 7: Parts And Hardware
Other Control Options Room temperature control, with presence detection Room temperature control, with open window detection With distance control option With adaptive start control With working time limitation With black bulb sensor 3. PARTS AND HARDWARE 3.1 Unpacking the fire carefully, make sure that the appliance is intact with no signs of damage caused by transport and no part has been exposed to water. -
Page 8: Appliance Dimensions
4. APPLIANCE DIMENSIONS Unit: mm 5. INSTALLATION INSTRUCTIONS Tools Required A screw driver will be needed. Locating the Appliance Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. - Page 9 This appliance can be fitted to 2 arrangements 5.4 Fitting with mantle model No. MT119A Install insert from the back of mantel, use 4pcs ST4×12 screws to fix insert 5.4a to mantel.
- Page 10 5.4b Connect the mood light. Follow the installation instruction packed with MT119A for more details of mantel. 5.5 Fitting with mantle model No. MT119C Install insert from the back of mantel, use 4pcs ST4×12 screws to fix insert 5.5a to mantel.
-
Page 11: Operating Instructions
5.5b Connect the mood light. Follow the installation instruction packed with MT119C for more details of mantel. NOTE: Compatible mood lights are available from IN & OUT HOUSE GmbH. Other makes may not be suitable, and will void warranty. 6. OPERATING INSTRUCTIONS WARNING! Do not operate the appliance if it is damaged or has malfunctioned. -
Page 12: 6A. Manual Control Panel
6.4 A long beep is heard to indicate the fire is ready for use. 6a. MANUAL CONTROL PANEL NOTE：The flame will always be on when the appliance is on. 6a.1 The manual buttons are located at the upper right of the appliance. 6a.2 Press “Mains Switch”... -
Page 13: 6B. Remote Controls
6b. REMOTE CONTROLS NOTE: Make sure the batteries are installed properly in the remote control. The effective range of the remote control is up to 4 meters or 13 feet. Turn on/off 6b.1 Press to turn turns appliance and flame effects on. Press again turns appliance and flame effects off. -
Page 14: Maintenance
Timer 6b.5 Press to cycle from OFF, 0.5H, 1H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, to 9H. Mood Light 6b.6 Press to cycle through 14 effects including OFF setting. Resetting the Thermal Cut Out 6b.7 The appliance is fitted with an Electronic Safety Control (E.S.). This is a safety device, which switches off the fire if, for any reason, the appliance overheats, e.g. -
Page 15: Others
cleaning/vacuuming of the fan/heater unit is recommended. 7.3 Cleaning the Fireplace You can clean the exterior of the fireplace with a soft, damp, lint-free cloth. Do not use cleaning or polishing products. To remove fingerprints or other marks on the front glass panel, use a soft, damp, lint-free cloth with a good quality household glass cleaner.
