Assembly Instructions
MODEL #TC80485
Floor Lamp Assembly
1.

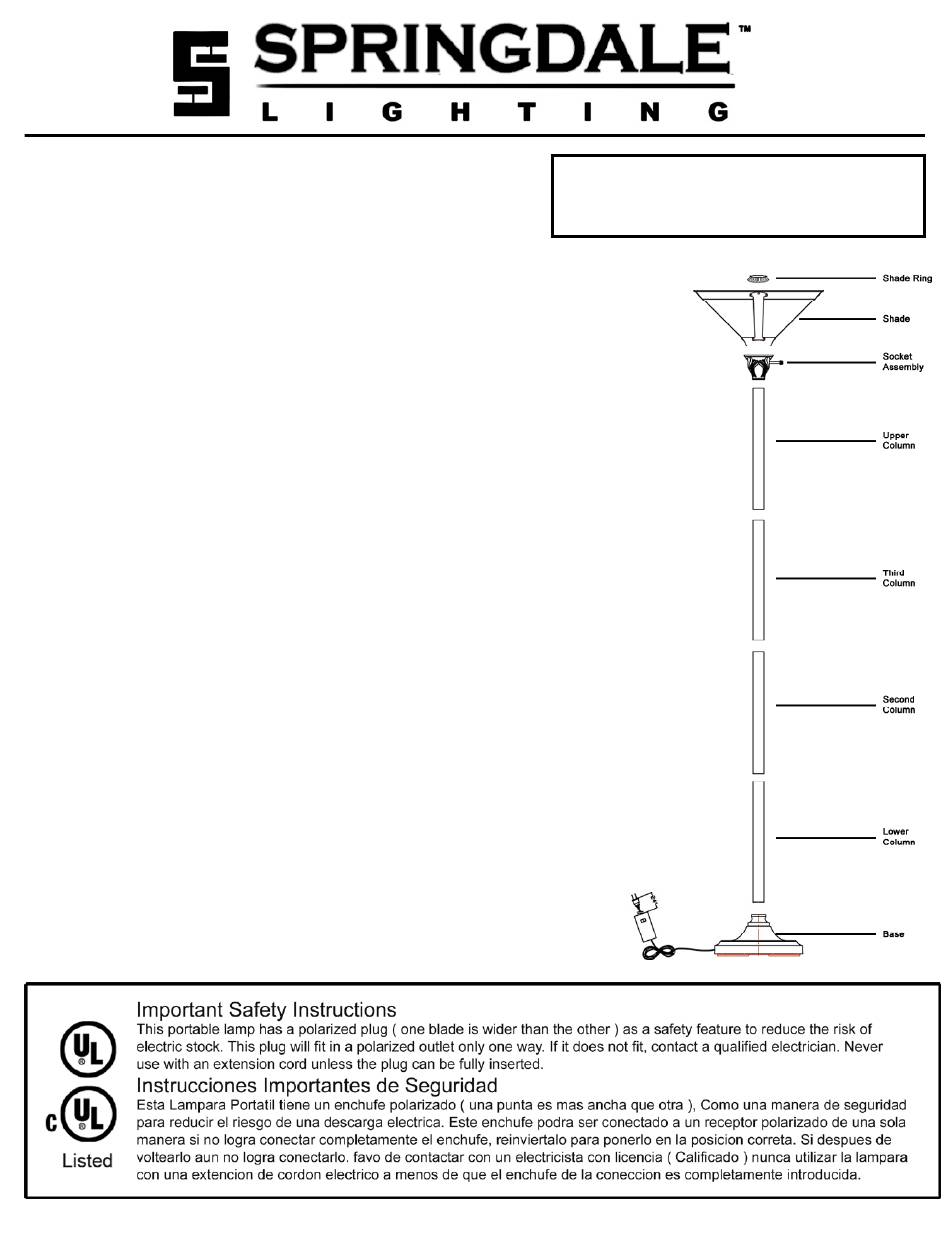

Carefully unpack and lay out the parts as shown in the illustration.
2.
Pull cord through base to tighten column connections.
3.
Screw lower column into lamp base.
4.
Screw second column into lower column.
5.
Screw third column into second column.
6.
Screw upper column into third column.
7.
Screw shade holder into Upper Column.
8.
Pull balance of cord from base to tighten excess.
9.
Unscrew the shade ring from the socket,
place shade into the shade holder.
10.
Replace the shade Ring onto threaded socket to secure the shade.
Uses Maximum 100Watt Type "A" Bulb.
(Bulb not included)
Unplug lamp, wipe with a damp cloth. Do not use abrasives.
*SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Made in China
FOR RETURN SHIPPING PURPOSES:
PLEASE RETAIN ORIGINAL PACKAGING
TO MINIMIZE DAMAGE.
Revision – 10/05/16
vt
