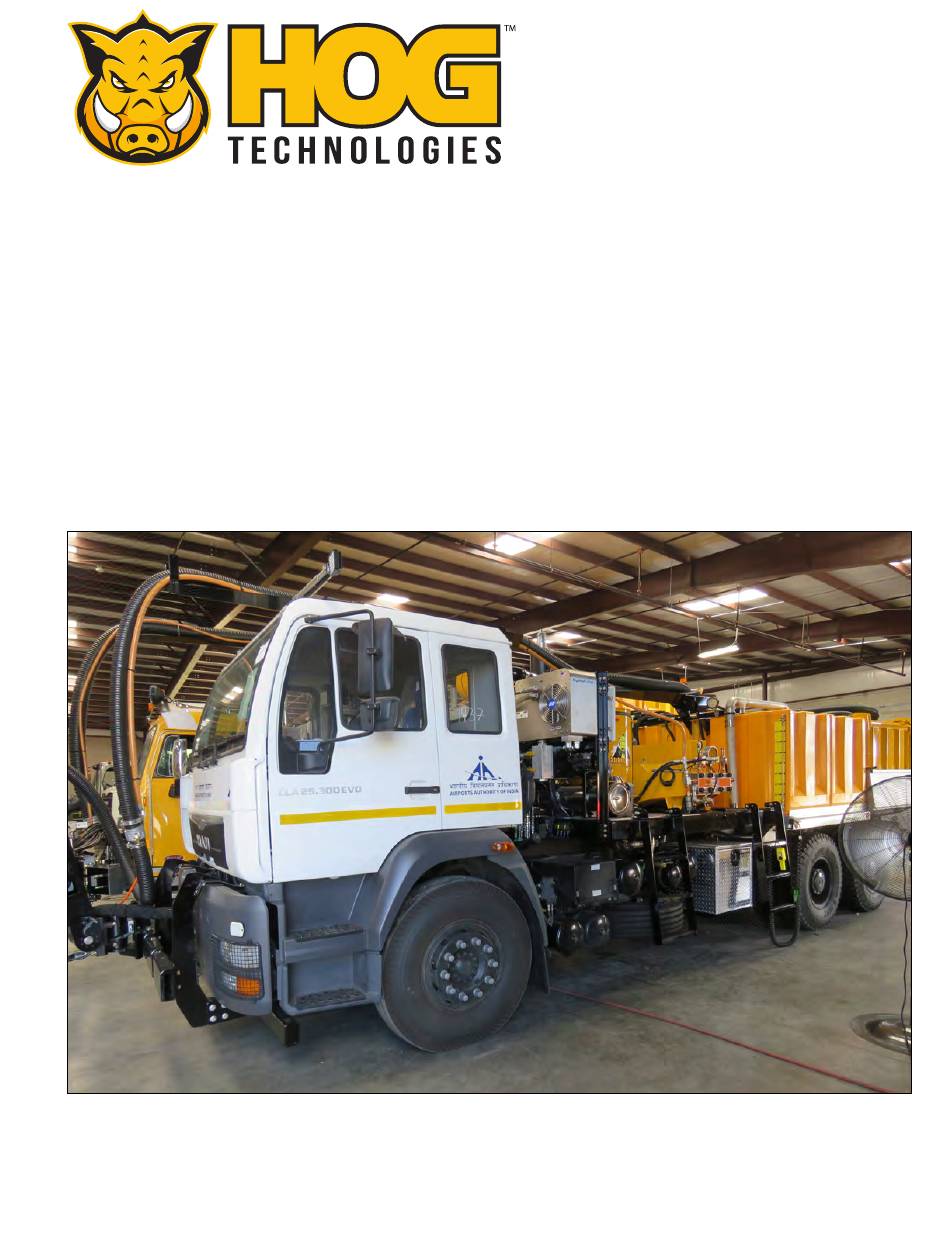

SK5500 Stripe Hog
Operation Manual
SE Slater Street Stuart, FL 34997
1-877-HOG-ROAD (001) (772) 223-7393
WWW. STRIPEHOGSUPPORT.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SK5500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hog Technologies SK5500

  • Page 1 SK5500 Stripe Hog Operation Manual SE Slater Street Stuart, FL 34997 1-877-HOG-ROAD (001) (772) 223-7393 WWW. STRIPEHOGSUPPORT.COM...
  • Page 3: Copyright/General Warning

    Copyright/General Warning COPYRIGHT Hog Technologies maintains and holds all rights and privileges to the in- formation contained in the manual. The contents herein cannot be shared or reproduced in any way or by any method without prior express writ- ten consent by an authorized representative. Copies of this manual are available by calling (772) 223-7393.
  • Page 4: Table Of Contents

    Table of Contents Copyright/General Warning ....................3 Welcome ........................... 7 Warranty ........................... 8 Safety Warnings & Instructions ..................... 9 Section 1: Safety Information 1.1 General Safety ......................11 1.2 Blasting Safety ......................12 1.3 Nozzle Safety ......................14 1.4 Hose Safety .......................14 1.5 High Pressure Fitting Safety..................15 1.6 Dumping Safety ......................15 Section 2: Stripe Hog Systems...
  • Page 5 5.18 Hydraulic System Scheduled Maintenance ..............127 5.19 Changing Hydraulic Fluid & Flushing Tank ..............128 5.20 Replacing In-Line Hydraulic Filters ................129 5.21 Winterization & Storage Procedures ................130 5.22 Caster Wheel Care – Hog Head Assembly .............134 5.23 SK5500 Maintenance Matrix ..................136...
  • Page 6 Table of Contents Appendix 1: Waterblasting System Troubleshooting Noises & Vibrations ......................137 Hog Arm & Hog Head .......................137 UHP Pump & High Pressure System ..................138 Vacuum System ......................140 Appendix 2: Tools & Spare Parts Mobile Tool Systems ......................141 Mobile Spare Parts System....................142 Appendix 3: Daily Report &...
  • Page 7: Welcome

    Hog Technologies is excited to welcome you and your crew to the Stripe Hog Operators’ Team. Together we embrace the challenge of constantly developing our equipment, knowledge and skills so that our highways will be safer for all who rely on them and our pavement surfaces will last longer for those who pay for them.
  • Page 8: Warranty

    Hog Technologies warrants its components to be free from defects in material and workmanship while under normal use and service. Hog Technologies will, at its option, either repair or replace free of charge any such part that appears to us to be defective in material or workmanship during the warranty period.
  • Page 9: Safety Warnings & Instructions

    IMPROPERLY. IMPORTANT NOTE: Every precaution has been taken by Hog Technologies to reduce the risks associated with possible injury and damage from electrical faults, high pressure water and hydraulic components or mechanical failure. However, your own precaution and good maintenance procedures are necessary in order to maintain a safe working environment.
  • Page 10 BEFORE ATTEMPTING TO CONNECT, OPERATE, OR REPAIR THIS EQUIPMENT, THOROUGHLY READ THESE INSTRUCTIONS AND ANY SAFETY WARNING OR INSTRUCTION PAMPHLETS INCLUDED WITH YOUR SHIPMENT. FOR ANY QUESTIONS CONCERNING SAFE OPERATIONS AND MAINTENANCE PROCEDURES, CONTACT YOUR HOG TECHNOLOGIES REPRESENTATIVE PRIOR TO USE. (772) 223-7393 OR (877) 964-7312 HOG TECHNOLOGIES...
  • Page 11: Safety Information

    OSHA Read this manual and all other water blasting standards. equipment operation manuals and instructions prior to using any Hog Technologies product. Con- tact Hog Technologies (877-HOG ROAD) should WARNING any questions arise. ALL PERSONNEL EXPOSED TO 90 DB OR GREATER...
  • Page 12: Blasting Safety

    Product changes ter or filled with an antifreeze solution. For the 40K pump system, refer to pump manufacturer’s Hog Technologies is committed to the continuous procedures for maintaining equipment in freez- improvement of our products. As a result, some ing climates. If the unit is operated in freezing...
  • Page 13 Section 1 - Safety Information Use Safety Protection Check Dumping Pressure Always use eye protection to protect eyes from When setting pressure ALWAYS ensure that the projected debris. Use ear protection to protect system pressure drops to less than 100 psi (7 from noise levels generated from pump, vacuum bar) immediately when the DUMP VALVE switch and water blasting operations.
  • Page 14: Nozzle Safety

    Section 1 - Safety Information 1.3 Nozzle Safety 1.4 Hose Safety Check Flow Rating General Combined nozzle flow rate must be compatible Ultra-High Pressure hoses are tough, but not in- with the pump discharge and pressure rating. vincible. They require proper care and handling Refer to the nozzle flow chart in this manual.
  • Page 15: High Pressure Fitting Safety

    Section 1 - Safety Information Retire Hose from Service if: Check Fittings A) Cover is damaged and reinforcing wires are Do not use fittings that have been cross threaded exposed to rust and corrosion. or have damaged threads. B) Cover is loose and/or has blisters or bulges. Fitting Connections Use anti-seize compound on all hose and fitting C) Hose has been crushed or kinked.
  • Page 16 Section 1 - Safety Information DANGER AN INJURY CAUSED BY HIGH PRESSURE WATERJETS CAN BE SERIOUS. YOU SHOULD READ THIS WARNING STATEMENT CAREFULLY AND ALWAYS CARY THE MEDICAL INFORMATION CARD WITH YOU. • IN THE EVENT OF ANY WATERJET INJURY: •...
  • Page 17: Stripe Hog Systems

    The operation and maintenance requirements for 2.1 Stripe Hog System Introduction the truck engine, drive train and chassis compo- The SK5500 skid mounted water blasting system nents are unique to the manufacturer and the is bolted to the truck chassis and powered by selected options.
  • Page 18: Skid Mounted Auxiliary Engine

    Section 2 - Stripe Hog Systems 2.2 Skid Mounted Auxiliary Engine All water blasting systems are powered by the onboard diesel engine. The vacuum system, charge water pump and most other hydraulically powered components are powered by a direct drive hydraulic pump connected to the auxiliary engine.
  • Page 19: Auxiliary Engine Throttle Control Modes

    Section 2 - Stripe Hog Systems 2.3 Auxiliary Engine Throttle Control Modes The engine control panel controls the starting, running and stopping of the engine. Digital gauges in the panel allow the operator to monitor engine RPM and important systems. Electronic engine controls monitor critical engine functions providing operator warning alarms and/or engine shutdown to prevent costly engine repairs.
  • Page 20: Ultra-High Pressure Water System

    Section 2 - Stripe Hog Systems Clean Water Tank 2.4 Ultra-high Pressure Water System The clean water tanks are mounted to the chassis The ultra-high water blasting system consists of just forward of the debris tank and made of plastic two water storage tanks, charge pump, Ultra-High to reduce corrosion and provide a supply of clean, Pressure (UHP) pump, high pressure hoses and...
  • Page 21 Section 2 - Stripe Hog Systems SIGHT GAUGE CLEAN WATER TANKS FILL CONNECTION Typical Clean Water Tank Configuration & Fill Connection frequently with clean, fresh water to prevent the accumulation of debris that may accidently enter the tank. There is a 3” ball valve on the passenger side bottom of the tank that allows for quick draining of the tanks when flushing is required and com- plete draining for system winterization.
  • Page 22 Section 2 - Stripe Hog Systems WARNING ENTERING THE WATER TANKS CAN BE DANGEROUS, PARTICULARLY IN HOT WEATHER. PERSONNEL ENTERING THE TANK ARE SUBJECT TO SLIPS AND FALLS, POOR VENTILATION, HEAT EXHAUSTION, OR OTHER INJURIES COMMON TO WORKING IN CONFINED SPACES WITH LIMITED VENTILATION.
  • Page 23 Section 2 - Stripe Hog Systems water pump is engaged. The charge pressure gauge on the control panel must be monitored closely when engaging the charge water pump. Once engaged, the pressure should rise immedi- ately above 10 psi (7 BAR) and continue climbing to the normal operating pressure of approximately 60-70 psi (4 BAR).
  • Page 24 Section 2 - Stripe Hog Systems 1 MICRON FILTER 10 MICRON FILTER Two Stage Filter System Filters A two stage filter system in the supply line between the charge pump and high pressure pump removes any small debris that may accidentally find its way into the water supply tanks.
  • Page 25 Section 2 - Stripe Hog Systems Ultra-High Pressure Pump Components High Pressure Gauge High Pressure Pump Manifold High Pressure Sensor Manual Bypass Valve Diverter Valve Rupture Discs Ultra-High Pressure Pump turns high pressure water to the Hog Head spray nozzles on or off. The Ultra-High Pressure pump (UHP) is a positive displacement pump that requires a constant water When the high pressure is turned off by the DUMP...
  • Page 26 Section 2 - Stripe Hog Systems PTO, Dump Valve & Charge Pump Switches In Control Panel Charge Pressure & High Pressure Digital Gauges High pressure is controlled by the RPM of the engine flow into the high pressure side of the manifold. and/or by adjusting the manual bypass valve on the Once the water is forced back through the manifold, pump.
  • Page 27 Section 2 - Stripe Hog Systems on, the shutoff cartridge is closed by the hydrau- lic cylinder forcing all high pressure water to the blasting head. When the DUMP VALVE switch is off, the hydraulic cylinder opens the shutoff cartridge, diverting high pressure water from the blasting head directly to the bypass hose and the clean water tanks.
  • Page 28 Section 2 - Stripe Hog Systems Rupture Discs There are two rupture discs installed on the high pressure side of the UHP pump that protect the high pressure water blasting system against un- usually high spikes in pressure. The rupture discs are designed to burst and immediately relieve pressure if the water pressure in the ultra-high pressure system exceeds the disc burst rating.
  • Page 29 Section 2 - Stripe Hog Systems UHP Pump Bilge & Bilge Compartment Components Coupling Gland Nut Stuffing Box Pony Rod (Connecting Rod) Deflector Lubrication Lines Plunger Bilge Packing Lube Water And Bilge Pump There are three (3) stuffing boxes, packing seals and plungers in the Ultra-high pressure pump that must be continuously lubricated and cooled to achieve maximum life expectancy.
  • Page 30 Section 2 - Stripe Hog Systems Packing lubrication and cooling water is drained from the high pressure pump by a bilge pump drain system. The system is completely automatic and activated whenever the water blasting elec- trical system is activated. A fuse in the outside terminal box protects the bilge pump circuit from an overload.
  • Page 31: Hog Arm And Hog Heads

    When the Hog Arm is raised to the full up position for transport, it must be secured with the quick release, The SK5500 is equipped with 3-Axis Hog Arm. T-handle pins. The pins are a safety feature that The control panel and joystick in the cab control prevents the Hog Arm from being lowered acciden- all hydraulic functions of the Hog Arm.
  • Page 32 Section 2 - Stripe Hog Systems Control Panel & Float Switch to the head and arm during removal operations. The Hog Arm can be moved from left to right but Note: cannot be raised up or down while in float mode. To remove the pins, the hydraulic system will have to be engaged and the arm raised to relieve the strain on the pins.
  • Page 33: Hog Head

    Section 2 - Stripe Hog Systems Head Plate Caster Wheels, Arms & T-Handle Pins Adjustable Friction Plate Castor Wheel Assembly Threaded Shaft Friction Plate Bolt & Jam Nut Castor Wheel Support Arm T-Handle Pin Castor Wheel Assembly Height Adjustment Rod Tubular Head Plate 2.6 Hog Head The Hog Head (blasting head) assembly is a single...
  • Page 34 Section 2 - Stripe Hog Systems NOTICE: ALWAYS MAKE SURE TO CHECK THE HOG HEAD FOR SMOOTH AND PROPER OPERATION BEFORE EACH SHIFT. DO NOT USE EQUIPMENT THAT HAS NOT BEEN CHECKED THOROUGHLY. The spray bar is rotated by a special hydraulic motor.
  • Page 35: Thru-Shaft, Spray Bars, Protectors And Nozzles

    Section 2 - Stripe Hog Systems Swivel Seal & Brass Backup Ring Swivel Nut Swivel Seal Weep Hole Thru-shaft Cover Shaft Lock Button Speed Sensor Thru-Shaft Motor Components Brass Backup Ring Swivel Seal must be checked daily to ensure it is tight and 2.7 Thru-shaft, Spray Bars, that the swivel seal is not leaking.
  • Page 36 The type of road surface. (Concrete or asphalt) • Profile requirements per job specifications. Hog Technologies offers a variety of spray bar and blasting head configurations to meet require- ments of all types of removal projects. Examples Typical Spray Bar, Protector & Weep Holes of available spray bar configurations are included in Appendix 4 of this manual.
  • Page 37 Section 2 - Stripe Hog Systems CAUTION BEFORE ATTACHING THE NEW SPRAY BAR TO THE HOG H E A D A S S E M B LY, E N G A G E C H A R G E P U M P AT L O W PRESSURE TO PURGE THE SYSTEM.
  • Page 38 Section 2 - Stripe Hog Systems Good Nozzle Spray Pattern Nozzles Showing Bad Spray Pattern Nozzle Must Be Replaced Nozzles typically last 12-16 hours of blast time, rotation speed dial is set to 0 so the spray bar however, you can experience shorter or longer does not rotate.
  • Page 39 Hog Technologies Customer Support mend that you only use nozzles, high pressure toll free at (877) HOG-ROAD for assistance in hoses and fittings supplied by Hog Technologies selecting the proper spray bar and nozzle con- to ensure the nozzles and other components are figuration for your job.
  • Page 40 Section 2 - Stripe Hog Systems Wear Brush The wear brush clamped to the bottom of the shroud provides a partial seal between the shroud and pavement. The wear brush regulates vacuum air flow into the shroud and reduces the amount of debris and water exiting the blasting head dur- ing water blasting operations.
  • Page 41: High Pressure Hoses, Connections & Fittings

    Section 2 - Stripe Hog Systems 2.8 High Pressure Hoses, Connections & Fittings The ultra-high pressure hoses used in the water blasting system are tough but not invincible. They require proper care and handling to achieve maximum life expectancy. Only use high pressure hoses with an operating pressure rating of 40,000 psi (2758 Bar) and a listed burst rating of 60,000 psi (4,137 Bar).
  • Page 42 Section 2 - Stripe Hog Systems Retire hose from service if: WARNING A) Cover is damaged and reinforcing wires are exposed to rust and corrosion. HIGH PRESSURE WATER FROM NOZZLES OR RUPTURED B) End fitting shows evidence of damage or is HOSES CAN CAUSE SEVERE INJURY.
  • Page 43: Debris Recovery System

    Section 2 - Stripe Hog Systems Debris Recovery System (178 mmHg) is typically achieved at 2100 RPM 2.9 Debris Recovery System (Maximum engine operating RPM). Relief valves Overview (Kunkle valves) on the debris tank and vacuum The vacuum system is powered by the auxiliary filter canister will automatically open if excessive engine and is activated whenever the PTO is en- vacuum in the system occurs.
  • Page 44 Section 2 - Stripe Hog Systems Note: Make sure the drain valve is closed, the canister door seal is clean and the door is properly latched before operating the vacu- um system. The system will not be able to develop enough vacuum if the canister door is not sealed and latched or the drain valve is open.
  • Page 45 THE BLOWER MANUFACTURER. FAILURE TO LUBRICATE THE BEARINGS DAILY OR USING GREASE OTHER THAN THE BLOWER’S INTERNAL COMPONENTS HAVE EXTREMELY THE GREASE SPECIFIED BY HOG TECHNOLOGIES AND SMALL TOLERANCES AND MUST BE PROTECTED FROM THE BLOWER MANUFACTURER WILL VOID THE WARRANTY.
  • Page 46 Section 2 - Stripe Hog Systems Filter And Filter Canister The vacuum filter canister houses the vacuum filter which protects the blower from debris. The filter should be checked at the beginning of each shift and periodically during operation. It is normal for some water vapor to travel from the debris tank to the vacuum filter canister where it will accumulate.
  • Page 47 Section 2 - Stripe Hog Systems Debris Tank Door, Latches & Deflector Vacuum/Debris tank The debris tank is constructed from stainless steel panels. The debris tank door has a manual locking system, debris deflector and watertight inflatable door seal. The pressurized door seal is supplied compressed air by the truck brake system air supply.
  • Page 48 Section 2 - Stripe Hog Systems vacuum flow, the vacuum relief valves on the tank and filter canister will automatically open and reduce the vacuum to near 0 to prevent damage to the vacuum system. A special filter bag (debris bag) is mounted on sliding rods near the top the stainless steel liner inside the debris tank.
  • Page 49 Section 2 - Stripe Hog Systems Filter Bag The filter bag is biodegradable and designed to slide out of the tank with the debris during dump- ing. When installing a new bag, make sure to attach the loops at the top of the filter bag to the sliding rods on each side of the tank.
  • Page 50 Section 2 - Stripe Hog Systems Typical Debris Tank Tilted for Dumping Debris Tank Dump System Solid debris is separated from the wastewater by the 100 micron filter bag and needs to be dumped when the debris cage is near full. A hydraulic ram below the tank lifts the passenger side, causing the tank to tilt for easy dumping.
  • Page 51: Optional Hog Tool Auxiliary Connection

    Section 2 - Stripe Hog Systems 2.10 Optional Hog Tool Auxiliary Connection General When this option is installed, an optional Ground Hog or other Hog Tool is connected to the aux- iliary connections. The electrical system senses that the tool is connected and the levers on the tool then control Ultra-High Pressure water to the blast head and hydraulic fluid flow to the spray bar motor.
  • Page 52: Electrical System

    Fuses in the outside terminal box (OTB) protect accessory circuits acti- vated by switches in the panel and other electrical equipment installed by Hog Technologies. Main Circuit Breakers The 50 and 30 amp main breakers are connected directly to the skid batteries and supply electri- cal power to the OTB accessory fuse panels.
  • Page 53 Contact Hog Technologies Customer Service if you need assistance correcting a problem with the water blasting electrical system. Typical In-line Fuse (If Equipped)
  • Page 54 Section 2 - Stripe Hog Systems Control Panel & Joystick Control Panel Switches STROBE LIGHTS Activates the safety strobe lights during operations. Most functions and features of the water blasting A green LED light in the switch indicates that the system are activated by labeled rocker switches, lights are on.
  • Page 55 Section 2 - Stripe Hog Systems CLUTCH An ON/OFF switch that activates the pneumatic solenoids that engage and disengage the auxiliary engine PTO clutch. A green LED light in the switch indicates that the clutch is engaged. FLOAT SWITCH Activates and deactivates the float mode feature that enables the Hog Head to float freely over un- even road surfaces.
  • Page 56 Section 2 - Stripe Hog Systems TRUCK SPEED The Truck Speed dial controls the speed of the truck while in work mode. Rotating the dial clockwise increases speed and rotating it counterclockwise re- duces speed. Setting the dial to 0 will stop the truck. HEAD ROTATION Gauge A digital gauge that indicates the current RPM of the spray bar.
  • Page 57: Skip Meter, & Video System

    Section 2 - Stripe Hog Systems 2.12 Skip Meter, & Video System Skip Meter Most trucks are equipped with a skip meter that records the distance traveled while in Work mode. When the meter is activated, an inductive sensor records the revolutions of the truck drive shaft and converts the readings into linear feet or meters.
  • Page 58: Hydraulic System

    Section 2 - Stripe Hog Systems 2.13 Hydraulic System Hydraulic System Overview The water blasting hydraulic system is powered by the auxiliary engine and PTO. It is equipped with two pumps, large reservoir/cooling tank and in-line filters. Heat exchangers with constant on fans cool the hydraulic fluid during operation.
  • Page 59 Section 2 - Stripe Hog Systems NOTICE: T H E H Y D R A U L I C F L U I D T E M P E R AT U R E M U S T B E ABOVE 60 DEGREES FAHRENHEIT BEFORE OPERATING THE HYDRAULIC PUMPS UNDER LOAD.
  • Page 60 Section 2 - Stripe Hog Systems Hydraulic Manifold & Solenoid Valves & Dump Valve Gauge Air Pressure & Dump Valve Pressure Gauges Hydraulic Manifold The Hydraulic manifold is mounted to the front of the skid. Electric solenoid valves activated by switches in the control panel direct hydraulic pressure to the various components in the water blasting hydraulic system.
  • Page 61 All hydraulic systems and cylinders require special procedures for bleeding air from the system after servicing components or replacing hoses. Contact Hog Technologies if you need assistance in bleed- Debris Tank Hydraulic Cylinder ing the air from the hydraulic system.
  • Page 62: Hydrostatic Drive Hydraulic System

    Section 2 - Stripe Hog Systems Hydraulic Hoses The hydraulic system operates at pressures of up to 2,500 psi (172 BAR). Therefore, it is critical that operator and maintenance personnel inspect hy- draulic hoses, fittings and other components fre- quently. A visual inspection of the entire hydraulic system should be conducted each day before operating the unit.
  • Page 63: Uhp Pump & Blower Drive Belts

    Section 2 - Stripe Hog Systems in extreme damage to components protected by the coolers. 2.15 UHP Pump & Blower Drive Belts The drive belts that connect the auxiliary engine PTO to the high pressure pump and vacuum blower are special carbon fiber industrial belts that are designed for high horsepower applications.
  • Page 64: Access Panels, Ladders & Tool Boxes

    Section 2 - Stripe Hog Systems 2.17 Access Panels, Ladders & Tool Boxes Ladders Ladders on the left side of the unit provide access to the water blasting components located on the skid between the water tanks and the truck cab. Each ladder is hinged and has a spring loaded safety pin that locks the ladder in the stored or deployed position.
  • Page 65: Waterblasting Operation

    8. Check the vacuum blower and UHP pump drive ent, depending on the chassis and options select- belt tension and alignment. ed. Hog Technologies includes a quick reference placard usually attached to the drivers side sun 9. Check clean water tank level and fill if neces- visor in the cab, that provides the proper startup sary.
  • Page 66: Filling The Clean Water Tank

    Section 3 - Operation Clean Water Tanks, Fill Valve & Sight Gauge 14. Make sure all lubrication points and vacuum blower motor bearings are greased with the specified lubricants. 15. Check all controls, switches and lights for proper operation. 16. Make sure the Mobile Spare Parts and Tool Sys- tems are complete and onboard.
  • Page 67 Section 3 - Operation Clean Water Tank Sight Gauge Clean Water Tank Drain Valve 4. Slowly open the source valve to begin filling the 8. Remove the fill hose from the water source and tank. drain the hose. 5. Open the drain valve on the passenger side of the 9.
  • Page 68: Water Blasting System Startup Procedure

    Section 3 - Operation Control Panel & Joystick 3.4 Water Blasting System REV 1.0 SK5000 EMERGENCY SHUTDOWN Startup Procedure SHUT OFF JOHN DEERE KEY HIT E-STOP The startup procedure outlined in this section is START-UP PROCEDURE SHUTDOWN PROCEDURE general and will apply to most trucks. However, ALL SWITCHES TO OFF OR SET TO “0”...
  • Page 69: Activating Uhp System & Setting Pressure

    Section 3 - Operation 3. Turn the PTO switch ON to disengage the truck drive train and energize the panel switches and controls. 4. Watch for the green DRIVE/PTO-OUT lights to go out and the red SPLIT/PTO-IN lights to turn on. 5.
  • Page 70: Blasting Procedure

    Low volume nozzles are typically a better choice for inexperienced operators on any surface. 3. Make sure the FLOAT SWITCH is OFF. Hog Technologies offers an on-site training pro- 4. Use the joystick in the control panel to raise the gram that dramatically reduces the learning curve arm and take the load off the lock pin.
  • Page 71 Section 3 - Operation Visual Impact Guide CAUTION NOTICE: YOUR INITIAL FORWARD SPEED SETTING SHOULD ALWAYS BE SET TO A SPEED SLIGHTLY FASTER THAN THE ANTICIPATED THE UHP PUMP IS DIRECTLY DRIVEN BY THE AUXILIARY BLASTING SPEED TO REDUCE THE POSSIBILITY FOR ENGINE PTO AND WILL BE DAMAGED IF THE PTO IS PAVEMENT DAMAGE AS BLASTING BEGINS.
  • Page 72: Routine Shutdown

    Section 3 - Operation Waterblasting Operation Do’s and Don’ts • Do not blast over pavement markers/reflectors. Do’s: Markers can damage the blast head and spray bar • STOP blasting before stopping the truck. Blasting and should be removed prior to blasting. with the unit stopped will damage the pavement, •...
  • Page 73 Section 3 - Operation 8. Raise the Hog Head to the full “UP” and insert 13. Turn all other switches and dials on the control the safety pin. panel to OFF or 0. 14. Shutdown the auxiliary engine to disengage the water blasting hydraulic system.
  • Page 74: Dumping Debris

    Section 3 - Operation Debris Tank, Door & Deflector 3.8 Dumping Debris Solid debris (larger than 100 microns) is separated from the wastewater by the filter bag and needs to be dumped when the bag/debris tank is near full. A hydraulic actuator below the tank lifts the right side, causing the tank to tilt for easy dumping.
  • Page 75 Section 3 - Operation 3. When draining is complete, move the Door Seal switch to the DEFLATE position to com- pletely deflate the air seal on the debris tank door. 4. Release the debris deflector latches and lower the deflector. 5.
  • Page 76 Section 3 - Operation 18. Follow the startup procedure to put the truck in work mode and activate the vacuum system. NOTICE: Then increase auxiliary engine RPM to achieve A HOSE CAN BE ATTACHED TO THE CHARGE WATER PUMP TO USE THE ONBOARD CLEAN WATER SUPPLY TO maximum vacuum and check the seal area for WASHDOWN THE DEBRIS TANK AFTER DUMPING.
  • Page 77: Emergency Shutdown

    Section 3 - Operation 3.9 Emergency Shutdown WARNING IF AN EMERGENCY SITUATION INVOLVING THE POTENTIAL FOR PERSONAL INJURY AND/OR EQUIPMENT DAMAGE OCCURS, THE OPERATOR SHOULD ALWAYS SELECT THE EMERGENCY SHUTDOWN PROCEDURE. THIS PROVIDES IMMEDIATE SHUTDOWN OF THE TRUCK AND ALL WATER BLASTING SYSTEMS TO REDUCE THE POSSIBILITY OF INJURY AND DAMAGE TO EQUIPMENT.
  • Page 78: Operating In Freezing Conditions

    Section 3 - Operation 3.10 Operating in Freezing Conditions 3.11 Operation Routine Maintenance Shutdown Some components of the ultra-high pressure water and vacuum systems require preventative routine 1. Allow the vacuum blower to operate for a maintenance during a typical water blasting shift. couple of minutes after shutting down the high This maintenance is considered routine and a pressure and charge water pumps to clear...
  • Page 79 Section 3 - Operation • Blast Head Shroud Wear Brush Adjustment - If • Clean The Vacuum Filter - The filter should the wear brush wears or the shroud clamps be cleaned at the start of each shift and may become loose and the brush looses contact require cleaning during the shift If reduced with the pavement, the wear brush will need to...
  • Page 80 NOTES...

  • Page 81: Lubrication & General Maintenance

    Section 4: Lubrication & General Maintenance 4.1 Lubrication & General CAUTION Maintenance Introduction Lubrication Points THE GENERAL MAINTENANCE PROCEDURES OUTLINED You should become familiar with the location of all IN THIS SECTION MUST BE FOLLOWED EXACTLY TO AVOID DAMAGING COMPONENTS AND/OR VOIDING THE components that require frequent lubrication and WARRANTY.
  • Page 82: Lubrication & Grease Point Locations

    Section 4 - General Maintenance 4.2 Lubrication & Grease Point Locations Stripe Hog Lubrication Chart 1 ITEM# COMPONENT DESCRIPTION ITEM# COMPONENT DESCRIPTION Debris Tank & Sight Gauge Drain Valves Auxiliary Engine Exhaust Flapper Hinges Fresh Water Tank Drain Valves Silencer Exhaust Flapper Hinges PTO Access Door Hinge &...
  • Page 83 Section 4 - General Maintenance Stripe Hog Lubrication Chart 2 ITEM# COMPONENT DESCRIPTION ITEM# COMPONENT DESCRIPTION Debris Tank Door Latches Blast Head Chassis Wheels, Casters & Safety Pins Debris Tank Door Hinges Ball Valves Kunkle Valve UHP Pump Pulley Access Door Latch & Hinge Inspection Hatch Latch &...
  • Page 84 Section 4 - General Maintenance Stripe Hog Lubrication Chart 3 ITEM# COMPONENT DESCRIPTION ITEM# COMPONENT DESCRIPTION Debris Tank Door Latches Debris Tank Tilt Hinges Debris Tank Door Hinges Ladder Hinges Debris Door Assist Cylinder Bearings Ladder Safety Pin Debris Deflector Hinges Drain Valves Debris Tank Tilt Cylinder Bearings...
  • Page 85: Standoff Adjustment Procedure

    Section 4 - General Maintenance Standoff Adjustment & Standard Setting It is the operator’s responsibility to evalu- 4.3 Standoff Adjustment Procedure ate the pavement surface and permanently The term “Standoff” refers to the height of the attached obstacles, then set the standoff spray bar above the pavement.
  • Page 86 Section 4 - General Maintenance 5. Remove the spray bar cover. 10. Be alert for obstacles that are higher than the standoff clearance during removal operations. 6. Place a straight edge across the bottom of the You must be prepared to avoid the obstacle or wheels and below the spray bar to simulate stop the truck and adjust the standoff distance the pavement surface.
  • Page 87: Clean Water Filter Replacement

    Section 4 - General Maintenance 4.4 Clean Water Filter Replacement 10 Micron Bag Filter CAUTION THE FILTER CANISTER LIDS CAN BE EJECTED FROM THE CANISTER IF THE RETAINER RING IS LOOSENED WHILE THE CHARGE WATER SYSTEM IS PRESSURIZED. THIS CAN RESULT IN DAMAGE TO THE FILTER AND COULD CAUSE INJURY TO PERSONNEL.
  • Page 88 Section 4 - General Maintenance 1 Micron Cartridge Filter Follow all the precautions outlined in the previous section for the 10 micron filter. Replacing the 1 micron filter: 1. Make sure the water blasting system is shut- down and the truck is in the service posi- tion.
  • Page 89: Bleeding Air From Charge Water Pump

    Section 4 - General Maintenance 4.5 Bleeding Air From Charge Water Pump Air must be bled from the charge water system when the filters are changed, the clean water tank is run dry or anytime the charge water system is serviced.
  • Page 90: Wear Brush Assembly Adjustment

    Section 4 - General Maintenance 4.6 Wear Brush Assembly Adjustment The wear brush bristles will slowly wear during operation. Consequently, the wear brush will re- quire adjustment periodically to keep the bristles in contact with the pavement to provide proper vacuum air flow.
  • Page 91: Dirt Shield Replacement

    Section 4 - General Maintenance 4.7 Dirt Shield Replacement The dirt shield should be inspected daily to ensure it is tightened properly and that the brush is in Dirt Shield good condition. Apply Anti-Seize Button Seal Use the following procedure to replace a dam- aged or worn felt seal: 1.
  • Page 92: Nozzle Installation

    Section 4 - General Maintenance Spray Bar & Nozzles Spray Bar Protector, Cotter Pin & Gasket Use the following procedure when replacing 4.8 Nozzle Installation nozzles: The condition of the nozzles is critical to removal 1. Make sure the Hog Arm and Head are in the performance and maintaining a tight, cohesive full up position and locked with the safety pin.
  • Page 93 Section 4 - General Maintenance 9. Install the nozzles into the spray bar being careful not to get any anti-sieze on the seat area of the nozzle or the spray bar. 10. Tighten each nozzle finger tight, then torque to 10 ft lbs. 11.
  • Page 94: Rupture Disc Replacement

    Section 4 - General Maintenance 4.9 Rupture Disc Replacement If a rupture disc bursts, find and correct the prob- lem that caused excessive pressure, then use the following procedure to replace the rupture disc. Refer to the drawing at the bottom of this page for additional reference.
  • Page 95: Swivel Seal Replacement

    Section 4 - General Maintenance Typical Swivel Tit In Thru-shaft Cover Housing Thru-shaft Cover Housing & Swivel Nut 4.10 Swivel Seal Replacement The swivel seal must be inspected at the start of each shift and replaced at the first sign of leakage to avoid damage to the swivel nut and thru-shaft cover housing.
  • Page 96 Section 4 - General Maintenance 4. Insert two 6-32 screws into the brass back-up 9. Install the brass back-up ring onto the swivel ring. Tighten the screws evenly to push the tit with the beveled seat facing up. Make sure brass back-up ring out of the high pressure the brass back-up ring is seated completely.
  • Page 97: Vacuum Canister & Filter

    Section 4 - General Maintenance 4.11 Vacuum Canister & Filter The vacuum filter canister houses the vacuum filter to protect the blower from debris and should be checked at the beginning of each shift. It is normal for water vapor to travel from the debris tank to the vacuum filter canister and gradually accumulate.
  • Page 98: Debris Recovery Tank

    Section 4 - General Maintenance 4.12 Debris Recovery Tank Daily: • Check hose cam-lock fittings for damage and missing O-rings. Replace as needed. • Check sight tube for cracks or damage and clean or replace as necessary. • Check debris tank door seal to ensure good vacuum sealing and clean if necessary.
  • Page 99: Scheduled Maintenance

    Proper engine and chassis maintenance is essen- recommended by the component manufacturer or tial to the proper performance and reliability of Hog Technologies. Maintenance schedules and ser- the Stripe Hog truck. You should perform all rec- vice procedures for the primary components of the ommended maintenance according to the manu- water blasting system are covered in this section.
  • Page 100: Auxiliary Engine & Pto

    Section 5 - Scheduled Maintenance 5.3 Auxiliary Engine & PTO Proper auxiliary engine maintenance is essential to the proper performance and reliability of the water blasting system. You should perform all recom- mended maintenance according to the manufac- turer’s recommendations. Maintenance schedules and procedures are outlined in the engine owner’s manual.
  • Page 101: Uhp Pump & Vacuum Blower Drive Belts

    Section 5 - Scheduled Maintenance 5.4 UHP Pump & Vacuum Blower Drive Belts The drive belts that connect the auxiliary engine PTO to the UHP pump and vacuum blower are spe- cial carbon fiber industrial belts that are designed for high horsepower applications. The ribbed drive belts are matched to grooved pulleys and have very little stretch.
  • Page 102 Section 5 - Scheduled Maintenance the belt. The tension meter will display the static tension vibration frequency. If the frequency is lower than the minimum rec- ommended, the belt should be tightened. If it is higher than the maximum recommended fre- quency the belt should be loosened.
  • Page 103 Section 5 - Scheduled Maintenance 5. Start the engine and follow the startup pro- cedure to engage the water blasting system. Engage the PTO and operate at idle speed for 30 seconds. 6. Disengage the PTO and return the truck to the service position.
  • Page 104: Periodic Water Blasting System Maintenance Items

    Section 5 - Scheduled Maintenance Safety Pins 4. Start the engine and follow the startup pro- cedure to engage the water blasting system. Weekly/50 Hours: Engage the PTO and operate at idle speed for • Lubricate the retaining ball or sliding shaft on 30 seconds.
  • Page 105: High Pressure Hose Installation

    Section 5 - Scheduled Maintenance 5.6 High Pressure Hose Installation High pressure hoses should be inspected weekly or every 50 hours and replaced as required. Use the following procedure when replacing a pres- sure hose. When replacing damaged or worn high pressure hoses, check the burst rating marked on the hose.
  • Page 106: Ultra-High Pressure Pump Scheduled Maintenance

    Section 5 - Scheduled Maintenance 5.7 Ultra-high Pressure Pump Scheduled Maintenance The 40K UHP pump operates at very high pres- sure and has specific lubrication and maintenance requirements. Refer to the Maintenance Matrix in this section and the pump manufacturer’s op- erating and maintenance manual for lubrication specifications and maintenance schedules.
  • Page 107 Section 5 - Scheduled Maintenance 100 Hour Maintenance 200 Hour Maintenance Perform all daily maintenance along with the items Perform all daily and 100 hour maintenance along outlined in this section. with the items outlined in this section. • Change crankcase lubricating oil after the first •...
  • Page 108: Checking Uhp Pump Oil Level & Changing Crankcase Oil

    Section 5 - Scheduled Maintenance Crankcase Oil Level - Pump Running Crankcase Oil Level - Pump Shutdown 5 To 8 Hours The upper sump holds a large volume of oil that 5.8 Checking UHP Pump Oil Level drains very slowly back into the main sump. Con- &...
  • Page 109 Section 5 - Scheduled Maintenance Crankcase Oil Level - Pump Operating: 1. Make sure the crankcase oil level is at the full INFORMATION PROVIDED IN THIS SECTION FOR THE mark, then activate the charge pump and start JETSTREAM PUMP IS FOR GENERAL REFERENCE ONLY. YOU MUST REFER TO THE JETSTREAM MANUAL FOR UP TO the engine to activate the high pressure pump.
  • Page 110 Section 5 - Scheduled Maintenance Changing Crankcase Oil The crankcase is filled with 80w90 high grade non detergent gear oil that is a high viscosity and flows slowly at room temperature or below. Since many crankcases hold up to 5 gallons (19 liters) of oil, it is best to operate the pump long enough to raise the temperature of the oil to normal operating temperature before draining the oil.
  • Page 111 Section 5 - Scheduled Maintenance Filling the crankcase with fresh oil: When refilling the crankcase, oil can be added through the breather port at the top of the crank- case or through the back plate fill port, depending on which port is most accessible on your unit. Always clean the area around the fill port before removing the plug to add oil, this reduces the pos- sibility of dirt and debris entering the crankcase...
  • Page 112: High Pressure Pump Univalve Service

    Section 5 - Scheduled Maintenance Removing Univalves: 5.9 High Pressure Pump 1. Make sure the water blasting system is shut- Univalve Service down with the truck in the service position. The Univalve cartridges will require service every 2. Remove the valves using a 2 lb hammer and 100 hours or if the following conditions are pres- ent: 7/8”...
  • Page 113 Section 5 - Scheduled Maintenance Univalves Installed In Head Figure 1: A. Univalve Body & Seat - B. Suction Valve Installing Univalves: Lapping Valves And Seats 1. Clean the valve sockets to make sure no dirt The suction valve seat surfaces in the Univalve and debris enters the UHP pump.
  • Page 114 Section 5 - Scheduled Maintenance LEGEND Shiny Line Indicates a cut or a crack Cuts caused by a leak Can be lapped if not too deep Cracks in the univalve Cannot be repaired, replace the univalve Shiny dot is a pit caused by calcium Can be lapped out “V”...
  • Page 115 Section 5 - Scheduled Maintenance 12. Remove the suction valve and clean both 16. Follow the same procedure for the discharge pieces thoroughly with brake cleaner. Be sure valve on the other side of the Univalve car- to thoroughly clean the holes in the Univalve tridge.
  • Page 116: High Pressure Pump Stuffing Box Packing Replacement

    Section 5 - Scheduled Maintenance Jetstream Ultra-high Pressure Pump Bilge Stuffing Boxes Plunger Coupling & Bolts Pony Rods Power Frame Glandnuts 5.10 High Pressure Pump Stuffing 4. Use the 7/8” Allen wrench (Jetstream tool) supplied in the water blasting tool system. Box Packing Replacement Insert the round end of wrench into the hole The packing creates the seal at the Ultra-High...
  • Page 117 Section 5 - Scheduled Maintenance Stuffing Box, Gland Nut, Packing & Plunger Guide Bushing or Carbide Ring 9. Check the plunger for scoring and wear. Polish or replace if necessary. 10. Reinstall the guide bushing in the gland nut and apply a thin coat of anti-seize to the gland nut threads.
  • Page 118 Section 5 - Scheduled Maintenance 15. Slide the plunger back against the pony rod. 4. Make sure both water supply valves are Reinstall the plunger coupling to the plunger open and all personnel are clear of all water and pony rod. Make sure both halves of the blasting components.
  • Page 119: Ultra-High Pressure Pump Assembly

    Section 5 - Scheduled Maintenance PUMPS & FLUID ENDS 5.11 Ultra-high Pressure Pump Assembly 40,000 PSI UNx™ 3040 Fluid End Replacement Parts ITEM PART DESCRIPTION ITEM PART DESCRIPTION NUMBER NUMBER Item Part Description Item Part Description Item Part Description K26624 Deflector K55632 Manifold...
  • Page 120: Dump Valve Assembly

    Section 5 - Scheduled Maintenance 5.12 Dump Valve Assembly The dump valve should be inspected and lubricated every 200 hours to keep it operating properly. Replace components as required. Dump Valve Repair (Hydraulically operated) 1. Remove diffuser tube (2) with cartridge (3). 2.
  • Page 121: Manual Bypass Valve

    Section 5 - Scheduled Maintenance 5.13 Manual Bypass Valve The manual bypass valve should be inspected and lubricated every 200 hours to keep it operating properly. Replace components as required. Manual Bypass Valve Repair 1. Remove outlet adapter (11). 2. Pull cartridge (3) out. If cartridge (3) is stuck together and not releasing pull the pin and cartridge body apart to inspect the seats for cuts and other damage.
  • Page 122: Vacuum Blower Scheduled Maintenance

    Section 5 - Scheduled Maintenance 500 Hour Maintenance (New Blower) 5.14 Vacuum Blower Perform all daily maintenance along with the items Scheduled Maintenance outlined in this section. Blower and Filter Canister The vacuum blower operates at an extremely high • Change blower gear case lubricating oil after RPM and has specific lubrication and maintenance the first 100 hours and every 500 hours there-...
  • Page 123: Checking & Changing Blower Gear Case Oil

    Section 5 - Scheduled Maintenance 5.15 Checking & Changing Blower Gear Case Oil The blower gear case oil level should be checked daily or at least every 50 hours of operation. The oil should be changed every 500 hours. When changing or checking the gear case oil, always clean the area around the breather and overflow plugs before they are removed.
  • Page 124: Vacuum Hose Replacement & Rotation Procedure

    Section 5 - Scheduled Maintenance 5.16 Vacuum Hose Replacement & Rotation Procedure Debris buildup, kinks, clogs or leaks in the system will cause a reduction in airflow at the blasting head, reducing the efficiency of operation or caus- ing operations to stop completely. Debris buildup inside the hoses can be removed by periodically tapping the outside walls with a dead blow ham- mer while the system is operating at maximum...
  • Page 125: Hog Head Shroud Installation

    Section 5 - Scheduled Maintenance 5.17 Hog Head Shroud Installation If the shroud becomes damaged, it must be re- placed following the steps outlined in this section. Dirt Shield Apply Anti-Seize Removing the shroud: Button Seal 1. Raise the Arm and Hog Head to the full up position and lock with the safety pin.
  • Page 126 Section 5 - Scheduled Maintenance 6. Verify shroud alignment and hand tighten the dirt shield. NOTICE: ONLY HAND TIGHTEN THE DIRT SHIELD. NEVER USE TOOLS TO TIGHTEN THE DIRT SHIELD. IF THE DIRT SHIELD IS TIGHTENED MORE THAN HAND TIGHT IT WILL CAUSE THE SPRAY BAR TO ROTATE SLOWLY OR NOT ROTATE AT ALL.
  • Page 127: Hydraulic System Scheduled Maintenance

    Hydraulic fluid should be changed and the tank flushed on a regular schedule in accordance with Hog Technologies and the hydraulic component manufacture’s recommendations. Hog Technolo- gies recommends changing the fluid at least once every 600 hours.
  • Page 128: Changing Hydraulic Fluid & Flushing Tank

    Section 5 - Scheduled Maintenance 5.19 Changing Hydraulic Fluid & Flushing Tank WARNING ALWAYS DEPRESSURIZE THE HYDRAULIC SYSTEM BEFORE REMOVING ANY HYDRAULIC COMPONENTS, HOSES OR FITTINGS. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH. NOTICE: Hydraulic Reservoir & Filter •...
  • Page 129: Replacing In-Line Hydraulic Filters

    Section 5 - Scheduled Maintenance 5.20 Replacing In-Line Hydraulic Filters Before performing any maintenance procedure, make sure the water blasting system is shutdown with the truck in the service position. Low Pressure Filters The low pressure filter is the spin-on type filter located in the return line near the bottom of the tank.
  • Page 130: Winterization & Storage Procedures

    Section 5 - Scheduled Maintenance 5.21 Winterization & Storage Procedures When operating the truck in freezing tempera- tures, it is extremely important to properly win- terize the water and vacuum systems whenever the truck is shutdown. Vacuum and UHP System Shutdown and Winterizing Water freezing in UHP components can cause seri- ous damage to pumps, filter canisters, valves and...
  • Page 131 Section 5 - Scheduled Maintenance 10. UHP water system hoses, vacuum filter can- ister and all Hof Head components should be drained of water. 11. Remove the spray bar and store it. 12. Open the bleeder valve at the charge water pump and allow hoses to completely drain.
  • Page 132 Section 5 - Scheduled Maintenance 20. Pour 2 gallons 50/50 antifreeze mixture into the high pressure pump stuffing box sump so it will drain to the bilge pump sump system. Allow the bilge pump to run until antifreeze flows from the bilge pump hose fitting in the debris tank for several seconds.
  • Page 133 Section 5 - Scheduled Maintenance 6. Shutdown the water blasting system and CAUTION return the truck to the service position. 7. Install spray bar TO AV O I D S E R I O U S D A M A G E TO WAT E R B L A S T I N G HYDRAULIC COMPONENTS WHEN OPERATING IN FREEZING 8.
  • Page 134: Caster Wheel Care - Hog Head Assembly

    2. If necessary, remove bearing seal to clean bearings in casters. Use degreaser or brake cleaner to remove dirt and paint debris. 3. Replace worn wheels as wear will affect blasting and mobility of Hog Head. Typical SK5500 Hog Head Assembly Caster Wheels...
  • Page 135 Section 5 - Scheduled Maintenance Hog Technologies...
  • Page 136: Sk5500 Maintenance Matrix

    Section 5 - Scheduled Maintenance SK5500 Maintenance Matrix 5.23 SK5500 Maintenance Matrix EQUIPMENT COMPONENT INTERVALS LUBRICATION SPECIFICATIONS Refer to Truck Operating Truck Engine Oil and Filter Refer to Truck Operating Manual Manual Transmission, Drive shafts, Refer to Truck Operating Driveline...
  • Page 137: Appendix 1

    Appendix 1: Waterblasting System Troubleshooting PROBLEM CAUSE AND SOLUTION Noises & Vibrations Blower system noise and vibration. • Blower impellers are clogged with paint and debris. Disassemble and clean blower. Rebuild or replace if necessary. • Blower muffler is clogged. Clean muffler. •...
  • Page 138: Uhp Pump & High Pressure System

    Appendix 1 - Troubleshooting PROBLEM CAUSE AND SOLUTION UHP Pump & High Pressure System High pressure and/or charge pressure gaug- • Auxiliary engine speed is too low and hydraulic es fluctuating or pulsing. system is not turning the charge pump at proper RPM.
  • Page 139 Appendix 1 - Troubleshooting PROBLEM CAUSE AND SOLUTION UHP Pump & High Pressure System Dump valve will not activate • Charge water pressure is below 30 PSI (2 BAR) and the charge pressure safety switch is preventing Dump vale operation. Find and correct the cause of low charge pressure.
  • Page 140: Vacuum System

    Appendix 1 - Troubleshooting CAUSE AND SOLUTION PROBLEM Vacuum System Low vacuum pressure. • Auxiliary engine speed is too low and PTO is not turning the vacuum blower at proper RPM. Raise engine speed to operating RPM. • Vacuum filter canister door seal leaking. Clean or replace lid seal.
  • Page 141: Appendix 2

    Appendix 2: Tools & Spare Parts...
  • Page 142: Mobile Spare Parts System

    Appendix 2 -Tools & Spare Parts...
  • Page 143: Appendix 3

    Appendix 3: Daily Report & Pre-Op Checklist 1-877-HOG-ROAD WWW. STRIPEHOGSUPPORT.COM...
  • Page 144: Pre-Op Checklist

    Appendix 3 - Daily Report & Pre-Op Checklist PRE-OP CHECK LIST Tires Grease Points F Tire Pressure - Front F Hog Head Caster Wheels F Tire Pressure - Rear F Vacuum blower Bearings Lighting Systems F Brake Lights Tank System F Turn Signals F Clean Water Tank Full &...
  • Page 145: Spray Bar Configuration And Nozzles

    Appendix 4: Spray Bar Configuration and Nozzles 1) 8”, 8 Nozzle - Most Agressive set-up. | 5.39 GPM @ 36K psi | 5.69 GPM @ 40K psi ....................................2) 8”, 8 Nozzle - Medium Agressive set-up. | 4.73 GPM @ 36K psi | 5.0 GPM @ 40K psi ....................................
  • Page 146 Appendix 4 - Spray Bar & Nozzle Configuration 4) 8”, 8 Nozzle -Least Agressive set-up. | 3.71 GPM @ 36K psi | 3.93 GPM @ 40K psi ....................................Nozzle Flow Chart 5) 8”, 8 Nozzle - Concrete Prep/Curing Compound Removal - 25,000 - 35,000psi | 5.48 GPM @ 40K psi ....................................
  • Page 147 Appendix 4 - Spray Bar & Nozzle Configuration 6) 6” 14 Nozzle Spray Bar - 4” lines - Argessive. | 5.72 GPM @ 36K psi | 6.0 GPM @ 36K psi ....................................7) 6”, 14 Nozzle Spray Bar - 4” lines - Less Aggressive 4.48 GPM @ 36K psi / 4.74 GPM @ 40K psi ....................................
  • Page 148 Appendix 4 - Spray Bar & Nozzle Configuration 9) 8” & 10”, 16 Nozzle - Less Aggressive set-up. 5.4 GPM @ 36K psi / 5.72 @ 40K psi ....................................10) 8” & 10”, 16 Nozzle - Less Aggressive Set-up. 4.82 GPM @ 36K psi / 5.1 GPM @ 40K psi ....................................
  • Page 149 Appendix 4 - Spray Bar & Nozzle Configuration 12) 14” Most Aggressive set-up. 5.83 GPM @ 36K psi / will not achieve 40K psi ....................................13) 14” Most Aggressive set-up. 5.66 GPM @ 36K psi / 5.98 GPM @ 40K psi ....................................
  • Page 150 Appendix 4 - Spray Bar & Nozzle Configuration 15) 14” Least Aggressive set-up. 4.81 GPM @ 36K psi / 5.09 GPM @ 40K psi ....................................16) 14” Concrete PRep - Curing Compound Removal. Will not achieve 40K psi ....................................14” Rubber Removal - 30,000K psi ....................................
  • Page 151: Nozzle Calculation Sheet

    Appendix 4 - Spray Bar & Nozzle Configuration Nozzle Calculation Sheet 1-877-HOG-ROAD WWW. STRIPEHOGSUPPORT.COM...
  • Page 152 NOTES...
  • Page 153: Appendix 5

    Appendix 5: Glossary of Terms Water Blasting Terms 1 Micron Cartridge Filter - Traps smaller particles that may come from the clean water tank and pass through the charge pump. 10 Micron Bag Filter – Traps larger particles that may come from the clean water tank and pass through the charge pump.
  • Page 154 Appendix 5 - Glossary of Terms Debris Tank – Collects all debris removed from the road surface through the vacuum hose. Dirt Shield – Threaded flat washer that protects the lower radial bearing of the thru-shaft from dirt and debris. Diverter Valve –...
  • Page 155 Standoff Distance – Distance from the spray bar to the surface. Stripe Hog – Ultra-high pressure water blasting equipment manufactured by Hog Technologies to remove paint and rubber from road surfaces. Supply Valve – Located between the clean water tank and the charge pump that is used to control the flow of water.
  • Page 156 Appendix 5 - Glossary of Terms Thru-Shaft – Hydraulic thru-shaft motor that connects and rotates the spray bar on the hog head assembly. Two Stage Filter System – Process of the water passing through 2 filters prior to reaching the ultra-high pressure pump to reduce debris in the system.
  • Page 157: Appendix 6

    CUSTOMER SERVICE HOT LINE - 772-223-7393 www.hogtechnologies.com www.stripehogsupport.com Hog Technologies will not be responsible for damages or loss caused by sub- stituted parts purchased locally or from another vendor or manufacturer. WARNING NEVER ATTEMPT TO USE COMMONLY AVAILABLE PLUMBING PARTS, FITTINGS, AND HOSES IN...
