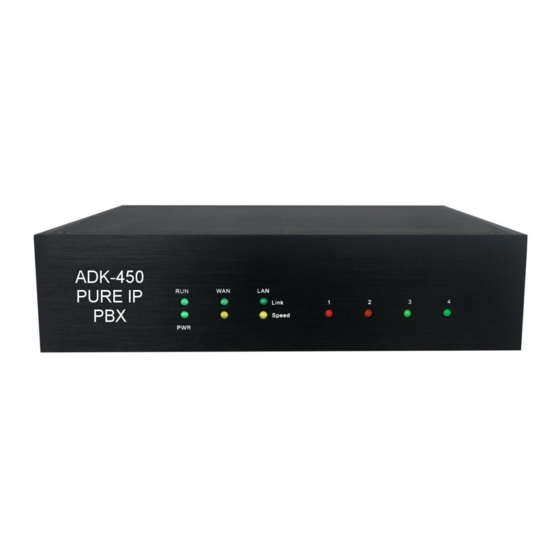

ADK -450 Administrator's Manual
  1. Manuals
  2. Brands
  3. ADK Manuals
  4. PBX
  5. ADK-450
  6. Administrator's manual

ADK -450 Administrator's Manual

Pure ip pbx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ADK-450 Administrator guide
ADK-450
PURE IP PBX
Administrator guide V1.0
Version 1.0.0.15
ADK SECURITY Co., Ltd.
1
‫واحد‬
8
‫جنب پاساژ ایرانیان خیابان شقایق پالک‬
‫آدرس : میدان ولیعصر‬
121
8888
1111
: ‫فاکس‬
121
8888
1811
: ‫تلفن‬
WWW.KAVOSHPHONE.COM
AMIR@KAVOSHPHONE.COM
@ADKPBX
1 / 86

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADK-450 and is the answer not in the manual?

Questions and answers

Related Manuals for ADK ADK-450

Summary of Contents for ADK ADK-450

  • Page 1 ADK-450 Administrator guide ADK-450 PURE IP PBX Administrator guide V1.0 Version 1.0.0.15 ADK SECURITY Co., Ltd. ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 1 / 86...

  • Page 2: Table Of Contents

    2.1 Installation Notice ................... 9 2.2 Installation Procedure ................9 2.2.1 Connect Drawing ................9 3. WEB Interface Configuration ....9 3.1 Access ADK-450 unit ................9 3.2 Parameters Configuration ..............10 3.3 System Information ................11 3.3.1 System Information ..............11 3.3.2 Extensions Status ................
  • Page 3 ADK-450 Administrator guide 3.5.3 VoIP Trunk ................. 24 3.6 PBX Basic ..................... 26 3.6.1 Extensions .................. 26 3.6.2 Feature Codes................35 3.6.3 Speed dial .................. 36 3.6.4 Outbound Routes ................ 37 3.6.5 Parking Lot ................. 41 3.6.6 General Preferences ..............42 3.7 PBX Inbound Call Control ..............
  • Page 4 ADK-450 Administrator guide 3.9.3 Voicemail Settings ............... 74 3.10 System Preferences ................75 3.10.1 Firewall Rules ................75 3.10.2 Firmware update ............... 77 3.10.3 Data backup ................78 3.10.4 Data restore ................78 3.10.5 Password Setting ............... 78 3.10.6 Time & Date ................79 3.10.7 Factory reset ................

  • Page 5: Introduction

    1.1 Overview ADK-450 —IP PBX for Small Business/Home Office ADK-450 is a standalone embedded hybrid PBX for small businesses and remote branch offices of larger organizations. It is designed to bring enterprise-grade Unified Communications and Security Protection in an easy- to-manage fashion.

  • Page 6: Product Appearance

    ADK-450 Administrator guide ●T.30,T.38 Faxes 1.3 Product Appearance The appearance of ADK-450 shows as follow Figure 1-3-1 Front view of ADK-450 Table 1-3-1 Description of Front view Index Indicators Description On: Starting Off: Abnormal Blinking every 0.5s: Normal status On: Power on...

  • Page 7: Scenario Of Application

    ADK-450 Administrator guide Figure 1-3-2 Rear view of ADK-450 Table 1-3-2 Description of Rear view Index Interface Description Reset button to restore default IP and password or restore factory setting. Hold RST button 8 seconds, RUN LED being ON during this time Power Power connector of DC power.
  • Page 8 ADK-450 Administrator guide Figure 1-4-1 Application 2 Figure 1-4-2 ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 8 / 86...

  • Page 9: Installation Guide

    Figure 2-2-1 Connect Drawing 3. WEB Interface Configuration ADK-450 IP PBX has the same web interface. This charpter describes web configuration of ADK-450. The ADK-450 contains an embedded web server to set parameters by using the HTTP protocol. We are strongly recommend to a c c e s s d e v i c e w i t h G o o g l e C h r o m e o r F i r e f o x B r o w s e r .

  • Page 10: Parameters Configuration

    ADK-450 Administrator guide Enter IP address of ADK-450 in IE/Google Chrome/Firefox Browser. The default IP of LAN port is 192.168.6.200. and the GUI shows as below: In this example, the IP address is 192.168.6.91 Figure 3-1-1 WEB login interface Enter username and password and then click “Login” in configuration interface.

  • Page 11: System Information

    ADK-450 Administrator guide Go through navigation tree, user can check, view, modify , and set the device configuration on the right of configuration interface. 3.3 System Information System information interface shows the basic information of status information, mobile information and SIP information.

  • Page 12: Trunk Status

    ADK-450 Administrator guide Extensions Status Description: Extensions is not registered Extensions is idle Extensions is ringing Extensions is busy Extensions is hold Table 3.3-2 Extensions Status Parameters Description Status Indicates the status of Extensions Do Not disturb 3.3.3 Trunk Status...
  • Page 13 ADK-450 Administrator guide Trunk Status Description: VoIP Trunk: Status Rejected: Trunk registration failed. Registered: Successful registration, trunk is ready for use. Request Send: Registering. Waiting: Waiting for authentication. ??? Service Provider: Status OK: Successful registration, trunk is ready for use.

  • Page 14: Network Configuration

    Configure the "IP Address", "Subnet Mask" and "Default Gateway" by manual Hostname Set the host name for ADK-450 IP Address Set the IP Address for ADK-450, It is recommended to configure a static IP address for ADK-450 Subnet Mask Set the subnet mask for ADK-450 Gateway...

  • Page 15: Vlan Configuration

    LAN to a group of LAN segments, given specific configurations. Note: ADK-450 is not the VLAN server, a 3-layer switch is still needed, please configure the VLAN information there first, then input the details in ADK-450, so that the packages via ADK-450 will be added the VLAN label before sending to that switch.

  • Page 16: Arp

    Description NO.1 Click the NO.1 you can edit the first VLAN over LAN IP Address Set the IP Address for ADK-450 VLAN over LAN. Subnet Mask Set the Subnet Mask for ADK-450 VLAN over LAN. Gateway Set the Default Gateway for ADK-450 VLAN over LAN 3.4.3 ARP...

  • Page 17: Vpn Configuration

    A VPN can provide secure information transport by authenticating users, and encrypting data to prevent unauthorized persons from reading the information transmitted. The VPN can be used to send any kind of network traffic securely. ADK-450 supports OpenVPN. Figure 3-4-4 VPN Configuration ‫واحد‬...

  • Page 18: Ddns Server

    1. Don't configure “user” and “group” in the “config” file. You can get the config package from the OpenVPN provider. 2. ADK-450 works as VPN client mode only. 3.4.5 DDNS Server DDNS(Dynamic DNS) is a method / protocol / network service that provides...

  • Page 19: Static Routing

    ADK-450 will have more than one internet connection in some situations but it has only one default gateway. You will need to set some Static Route for ADK-450 to force it to go out through different gateway when access to different internet.

  • Page 20: Dhcp Server

    ADK-450 Administrator guide Parameters Description Destination The destination network to be accessed to by ADK-450. IP Address Subnet Mask Specify the destination network portion. Gateway Define which gateway ADK-450 will go through when access to the destination network. Metric The cost of a route is calculated by using what are called routing metric.

  • Page 21: Trunks

    ADK-450 Administrator guide 3.5 Trunks 3.5.1 Analog Trunks(PSTN Trunks) The public switched telephone network (PSTN) is the network of the world's public circuit-switched telephone networks. Figure 3-5-1 Analog Trunks Figure 3-5-1a Analog Trunks Edit ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬...
  • Page 22 ADK-450 Administrator guide Table 3-5-1 Description of Analog Trunk Parameters Description Trunk Name A unique label used to identify this trunk when listed in outbound rules, incoming rules, etc.E.g. “pstn113”. Rxgain Used to modify the volume level of this trunk. Normally, this setting does not need to be changed.

  • Page 23: Ip Trunk (Peer To Peer Mode)

    ADK-450 Administrator guide silence, which will further reduce the chance of a false positive disconnection. Frequency Used for Frequency Detection (Enable detecting the busy Detection signal frequency or not). Busy Frequency If the Frequency Detection is enabled, you must specify the local frequency.

  • Page 24: Voip Trunk

    Set default mode for sending DTMF of this trunk. Default setting: rfc2833, Info, Shortinfo,Inband, Auto Qualify Send checking alive packets to the SIP provider. when it’s disabled, ADK-450 will ignore the reachability and the status of this account will be unmonitored. Allow codecs ulaw,alaw,gsm 3.5.3 VoIP Trunk...
  • Page 25 ADK-450 Administrator guide Table 3-5-3 Description of VoIP Trunk Parameters Description Trunk Name It describes the trunk for the ease of identification. Type Choose the type of this trunk, SIP or IAX Outbound Caller Caller ID for calls placed on out this trunk Hostname/IP Service provider’s hostname or IP address, 5060 is the...

  • Page 26: Pbx Basic

    A proxy that receives requests from a client, even though it may not be the server resolved by the Request-URI. 3.6 PBX Basic 3.6.1 Extensions There are three types of extensions supported in ADK-450 : SIP, IAX and analog extension(FXS). Figure 3-6-1 Extensions Figure 3-6-1a Fxs Extensions Edit ‫واحد‬...
  • Page 27 ADK-450 Administrator guide Table 3-6-1a FXS Extensions Parameters Description Port The extension correspond port. Extensions The numbered extension, e.g. 601, that will be associated Number with this particular User/Phone. Display Name A character-based name for this user, e.g. “Han Jones”.
  • Page 28 ADK-450 Administrator guide ·Enable Voicemail Check this box if the user should have a voicemail account. ·Voicemail Access PIN # Voicemail Password for this extension, e.g. “601”. ·Email Address This option defines whether or not voicemails/Fax is sent to the Email address as an attachment.
  • Page 29 ADK-450 Administrator guide Figure 3-6-1d Fxs Extensions Edit ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 29 / 86...
  • Page 30 Sets the amount of time, in milliseconds, that must pass since the last hook- flash event received by ADK-450 before it will recognize a second event. If a second event occurs in less time than defined by Hook Flash Detection, then ADK-450 will ignore the event.
  • Page 31 ADK-450 Administrator guide VoIP Extensions A VoIP extension is a SIP/IAX Account that allows an IP Phone or an IP soft phone client to register on ADK-450. We can click “Add extension” to start. Figure 3-6-1e VoIP Extensions Edit/Add ‫واحد‬...
  • Page 32 ADK-450 Administrator guide ·Extension Type Extension type: SIP, IAX or SIP/IAX. SIP—The extension sends and receives calls using the VoIP protocol SIP. IAX—The extension sends and receives calls using the VoIP protocol IAX. ·Extension Number The numbered extension, e.g. 100, that will be associated with this particular User/Phone.
  • Page 33 ADK-450 Administrator guide extension,a random and robust password will be generated like “0e3lx9Iz”. ·Transport This will be the transport method used by the extension. The options are UDP (default) or TCP or TLS. ·Enable SRTP Enable extension for SRTP (RTP Encryption).
  • Page 34 ADK-450 Administrator guide ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 34 / 86...

  • Page 35: Feature Codes

    ADK-450 Administrator guide 3.6.2 Feature Codes There are many feature codes available in ADK-450, which allow users to dial from extension side to realize the exact feature. Figure 3-6-2 Feature Codes ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬...

  • Page 36: Speed Dial

    ADK-450 Administrator guide 3.6.3 Speed dial ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 36 / 86...

  • Page 37: Outbound Routes

    ADK-450 Administrator guide Figure 3-6-3 Speed Dial Figure 3-6-3a Speed Dial Add Table 3-6-3 Description of Speed Dial Parameters Description Source Number The speed dial number. Destination The number you want to call. Number E.g. the source number is “33”. The destination number is 5528369.
  • Page 38 Notes: 1. The max number of outbound route is 32. 2. If the dial patterns are the same in several routes, ADK-450 will choose the available routes from top to the last one. 3. When you have created a new extension, please edit the outbound route so that it can dial out too.
  • Page 39 ADK-450 Administrator guide Figure 3-6-4b Outbound Routes Edit ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 39 / 86...
  • Page 40 ADK-450 Administrator guide Figure 3-6-4c Outbound Routes Edit ·Route Name Name of this Outbound Route. E.g. “Local” or “Long Distance”. ·Password The route password can be used to protect this route from being accessed without a password. You can choose one of the passwords in the PIN list that you can click the “Pin Settings”...

  • Page 41: Parking Lot

    ADK-450 Administrator guide Allows the user to specify the number of digits that will be stripped from the front of the phone number before the call is placed. For example, if users must press 0 before dialing a phone number, one digit should be stripped from the dial string before the call is placed.

  • Page 42: General Preferences

    ADK-450 Administrator guide 3.6.6 General Preferences Figure 3-6-6 General Preferences ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 42 / 86...

  • Page 43: Pbx Inbound Call Control

    ADK-450 Administrator guide 3.7 PBX Inbound Call Control 3.7.1 Inbound Routes ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 43 / 86...
  • Page 44 ADK-450 Administrator guide Inbound routing processes incoming call traffic to destination extensions during office hours or outside office hours Figure 3-7-1 Inbound Routes There is a default inbound route for all the trunks and set IVR as the destination, you can edit it or create a new one for your demands or you can delete multiple outbound routes at once as required.When an incoming call...
  • Page 45 ADK-450 Administrator guide ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 45 / 86...
  • Page 46 ADK-450 Administrator guide 1) General ·Route Name A name for this inbound route. E.g. “default”. ·DID Number Define the expected DID Number if this trunk passes DID on incoming calls. Leave this field blank to match calls with any or no DID info. You can also use pattern matching to match a range of numbers.
  • Page 47 ADK-450 Administrator guide Example 1: NXXXXXX will match any 7 digits phone number. Example 2: 1NXXNXXXXX will match a phone number starting with a 1, followed by a 3-digit area code, and then 6-digit number. ·Alert info Alert info can be used for distinctive ring with SIP devices.

  • Page 48: Blacklist

    For example: Company A locates headquarters in the USA with a branch B in China. A and B both have a ADK-450 phone system. Now if staff of A would like to make a call to a telephone or mobile phone in China from the extension of A but via the FXS line of B, that can be done by this configuration.

  • Page 49: Ivr

    ADK-450 Administrator guide 3.7.3 IVR When there’s an inbound call aims at Auto Attendant, ADK-450 will play an IVR recording and route the caller to the requested destination (for example, “Welcome to XX company,for sales press 1, for technical support press 2, for operator press 0”, etc.).
  • Page 50 ADK-450 Administrator guide ·Number ADK-450 treats IVR as an extension; you can dial this extension number to reach the IVR from internal extensions. ·Description Description of this IVR. ·Announcement Greeting to be playd on entry to the IVR. ·Enable Direct Dial Allow the caller to dial other extensions number directly.

  • Page 51: Queue

    ADK-450 Administrator guide 3.7.4 Queue Call Queues give users (e.g. call centers) an efficient means to have their calls answeredin the order they were received to deliver top tier customer service. Figure 3-7-4 Queue Figure 3-7-4a Queue Edit ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬...
  • Page 52 ADK-450 Administrator guide ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 52 / 86...
  • Page 53 ADK-450 Administrator guide ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 53 / 86...
  • Page 54 ADK-450 Administrator guide ·Queue Number Use this number to dial into the queue, or transfer callers to this number to put them into the queue. ·Queue Name A name for the Queue. ·Queue Password You can require agents to enter a password before they can log in to this queue.
  • Page 55 ADK-450 Administrator guide FewestCalls: Ring the Agent with the fewest completed calls. Random: Ring a Random Agent. RRmemory: Round Robin with Memory, Remembers where it left off in the last ring pass. Linear: Rings agents in the other specified,for dynamic agents in the other they logged in.

  • Page 56: Ring Groups

    Announce position of caller in the queue ·Announce Hold Time Enabling this option causes ADK-450 to announce the hold time to the caller periodically based on the frequency timer. Either yes or no; hold time will not be announced if <1 minute.
  • Page 57 ADK-450 Administrator guide ·Ring Group Number This option defines the numbered extension that can be dialed to reach this group. ·Ring Group Name This option defines a name for this group, e.g. “Sales”. “Ring Group Name” is a label to help you identify this group in the group list.

  • Page 58: Conferences

    ADK-450 Administrator guide “Destination if No Answer” settings. 2. If the strategy is “Ring Sequentially”, it means the number of seconds to ring a single extension before moving onto the next one. ·Music on hold If you select a music on hold class to play,instead of “ring”,they will hear that instead ringing while they are waiting for someone to pick up ·Ring Group Members...
  • Page 59 ADK-450 Administrator guide ·Conference Number This is the number dialed to reach this Conference Room. ·User PIN Set a PIN that must be entered in order to access this conference room (e.g. 1234). ·Admin PIN Enter a PIN number for the admin user ‫واحد‬...

  • Page 60: Callback

    ADK-450 allows caller A to dial an inbound route number, and after hearing the ring, A can hang up the call or wait for ADK-450 to cut off the call, then ADK-450 will call A with this number. When A picks up the call, A can dial the number he wants to call;...

  • Page 61: Pbx Advanced Settings

    ADK-450 Administrator guide 3.8 PBX Advanced Settings 3.8.1 SIP settings This is the SIP settings in ADK-450, including General settings, NAT, Codecs, Qos, Response code and Advanced settings. This section describes how to configure SIP server and SIP parameters 3.8.1.1 SIP General setting Figure 3.8.1.1 SIP General Setting...
  • Page 62 Disable overlap dialing support.(Default is yes ) Pedantic Enable pedantic parameter. Default: no. Always authreject If enabled, when ADK-450 rejects “Register”or “Invite” packets, ADK-450 always respond the packets using “SIP404 NOT FOUND”. It’s recommended to be enabled for security. DNS SRV Look Up Please enable this option when your SIP trunk contains more than one IP address.
  • Page 63 ADK-450 Administrator guide registration.Default is 3600 seconds. Minexpiry Minimum duration (in seconds) of a SIP registration. Default is 60 seconds. Defaultexpiry Default Incoming/Outgoing Registration Time: Default duration (in seconds) of incoming/outgoing registration. Qualifyfreq How ofen to check for the host to be up in seconds and reported in milliseconds with sip show settings.

  • Page 64: Sip Network Configuration

    ADK-450 Administrator guide the default is “ADK-450”, you can change it if needed. 3.8.1.2 SIP Network Configuration Note: Configuration of this section is required when using remote extensions generally. Figure 3.8.1.2 SIP Network Configuration Table 3.8.1.2 Parameters Description Enable STUN...

  • Page 65: Qos

    TLS port Port used for SIP registrations, Default is 5061 TLS Verify Server When using ADK-450 as a TLS client, whether or not to verify server’s certificate. It is “No” by default. TLS Ignore Set this parameter as “No”, then common name must Common Name be the same with IP or domain name.

  • Page 66: Codecs

    ADK-450 Administrator guide 3.8.1.4 codecs We can choose the allowed codec in ADK-450, a codec is a compression or decompression algorithm that used in the transmission of voice packets over a network or the Internet. More information about codec, you can refer to this page: http://en.wikipedia.org/wiki/List_of_codecs...
  • Page 67 ADK-450 Administrator guide Table 3.8.2 Parameters Description Delayreject Which will delay the sending of authentication reject for REGREQ or AUTHREP if there is a password Bind port Port used for IAX2 registrations. Default is 4569. Bandwidth Low/medium/high with this option you can control which codec to be used.

  • Page 68: Pin Sets

    ADK-450 Administrator guide 3.8.3 PIN Sets In this page users can manage all the passwords of outbound routes, PIN User, and DISA. Figure 3.8.3 PIN sets Figure 3.8.3a PIN Set Edit ·PIN Set Name A character-based name for this PIN list, e.g. “testPIN”...

  • Page 69: Disa

    ADK-450 Administrator guide 3.8.4 DISA DISA (Direct Inward System Access) allows someone calling in from outside the telephone switch (PBX) to obtain an “internal” system dial tone and make calls as if they were using one of the extensions attached to the telephone switch.

  • Page 70: Paging And Intercom

    ADK-450 Administrator guide ·Password The password for this DISA. ·PIN Set Optional: select a PIN set to use.If using this option,leave the password field blank ·Response Timeout The maximum amount of time the system will wait before hanging up the call if the user has dialed an incomplete or invalid number.

  • Page 71: Voice Management

    ADK-450 Administrator guide ·Paging Group Number Define the numbered extension that may be dialed to reach this group. ·Duplex Paging is typically one way for announcements only. Checking this will make paging duplex, allowing all users in the group to talk and be heard by all.
  • Page 72 ADK-450 Administrator guide 1. Record New Prompt Figure 3-9-1a Record New Prompt The administrator can record custom prompts by doing the following: 1) Click “Record New Custom Prompt”. 2) Input the desired file name on the popup window and choose an extension to call for recording (such as vp500).

  • Page 73: Music On Hold

    ADK-450 Administrator guide 3.9.2 Music on Hold Figure 3-9-2 Music on Hold Figure 3-9-2a Music on Hold Edit The administrator can upload on hold music as follows: 1) Click “Browse” to choose the desired audio file. 2) Click “Upload” to upload the selected file.

  • Page 74: Voicemail Settings

    ADK-450 Administrator guide 3.9.3 Voicemail Settings In this page, we can configure some settings for voicemail feature, including general voicemail settings and SMTP settings, which is used for “voicemail to email”. Figure 3-9-3 Voicemail Setting ·Max # of Messages per Folder Set the maximum number of messages that can be stored in a single voicemail box.

  • Page 75: System Preferences

    ADK-450 Administrator guide threshold will be automatically deleted. ·Max Length Greetings in Sec Max length of greeting in seconds. ·Review Message Allow sender to review/record their message before save it(No by default) ·Play CID Say the called ID information before the message ·Play envelope...
  • Page 76 ADK-450 Administrator guide Figure 3.10.1a Firewall Rules Edit/Add Figure 3.10.1b Firewall Defence Edit/Add ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 76 / 86...

  • Page 77: Firmware Update

    ADK-450 Administrator guide 3.10.2 Firmware update Upgrading of the firmware is possible through the Administrator Web interface using a TFTP Server or an Upload Enter your TFTP Server IP address and firmware file location, then click start to update the firmware Notes: 1.

  • Page 78: Data Backup

    ADK-450 Administrator guide 3.10.3 Data backup We can backup up the configurations before reset ADK-450 to factory defaults Figure 3.10.3 Click 'Backup' to download configuration file to your computer. Notes: 1. Only configurations, custom prompts will be backed up. 2. When you have updated the firmware version, it’s not recommended to restore using old package.

  • Page 79: Time & Date

    ADK-450 Administrator guide 3.10.6 Time & Date The Network Time Protocol (NTP) is a protocol and software implementation for synchronizing the clocks of computer systems over packet-switched, variable-latency data networks. User need to fill the NTP Server Address and select Time Zone.

  • Page 80: Factory Reset

    ADK-450 Administrator guide 3.10.7 Factory reset Be careful do this operation, after restore factory setting, all the parameters will be changed to the factory default. Figure 3.10.7 factory reset Reset to Factory Defaults Click this button to reset Factory Default settings 3.10.8 Reboot...

  • Page 81: System Logs

    ADK-450 Administrator guide Table 3.11.1 CDR Report Parameters Description Date start and end time of calls Source Call number Destination Called number Src channel Source channel Dst channel Destination channel Call direction IP to GSM: outbound calls from softswitch/IPPBX to mobile network...

  • Page 82: Firewall Logs

    ADK-450 Administrator guide 3.11.3 Firewall logs Figure 3.11.3 Firewall logs 3.12 System tools 3.12.1 SMTP Setting To send the SMS or system alert to email address, please configure the Email settings first, and make sure SMTP test is successful. Figure 3.12.1 ‫واحد‬...

  • Page 83: Ping

    ADK-450 Administrator guide Table 3.12.1 Parameters Description Username The E-mail Address that ADK-450 will use to send voice mail. Password The password for the email address used above SMTP Server The IP address or hostname of an SMTP server that the ADK-450 will connect to in order to send voice mail messages via email, i.e.mail.yourcompany.com.

  • Page 84: Tracert

    ADK-450 Administrator guide 3.12.3 Tracert Figure 3.12.3 Tracert 3.12.4 Packet Capture Figure 3.12.4 Packet Capture ‫واحد‬ ‫جنب پاساژ ایرانیان خیابان شقایق پالک‬ ‫آدرس : میدان ولیعصر‬ 8888 1111 : ‫فاکس‬ 8888 1811 : ‫تلفن‬ WWW.KAVOSHPHONE.COM AMIR@KAVOSHPHONE.COM @ADKPBX 84 / 86...

  • Page 85: Text To Wav

    ADK-450 Administrator guide 3.12.5 Text to wav Figure 3.12.5 Text to wav 3.12.6 Certificates ADK-450 can support TLS trunk. Before you register TLS trunk to ADK-450, you should upload certificates first. Figure 3.12.6 Certificates Trusted Certificate This certificate is a CA certificate. When selecting “TLS Verify Client” as “Yes”, you should upload a CA.
  • Page 86 ADK-450 Administrator guide Gateway Certificate This certificate is server certificate. No matter selecting “TLS Verify Client” as “Yes” or “NO”,you should upload this certificate to ADK-450. If IPPBX enables “TLS Verify server”, you should also upload this certificate on IPPBX. ‫واحد‬...
