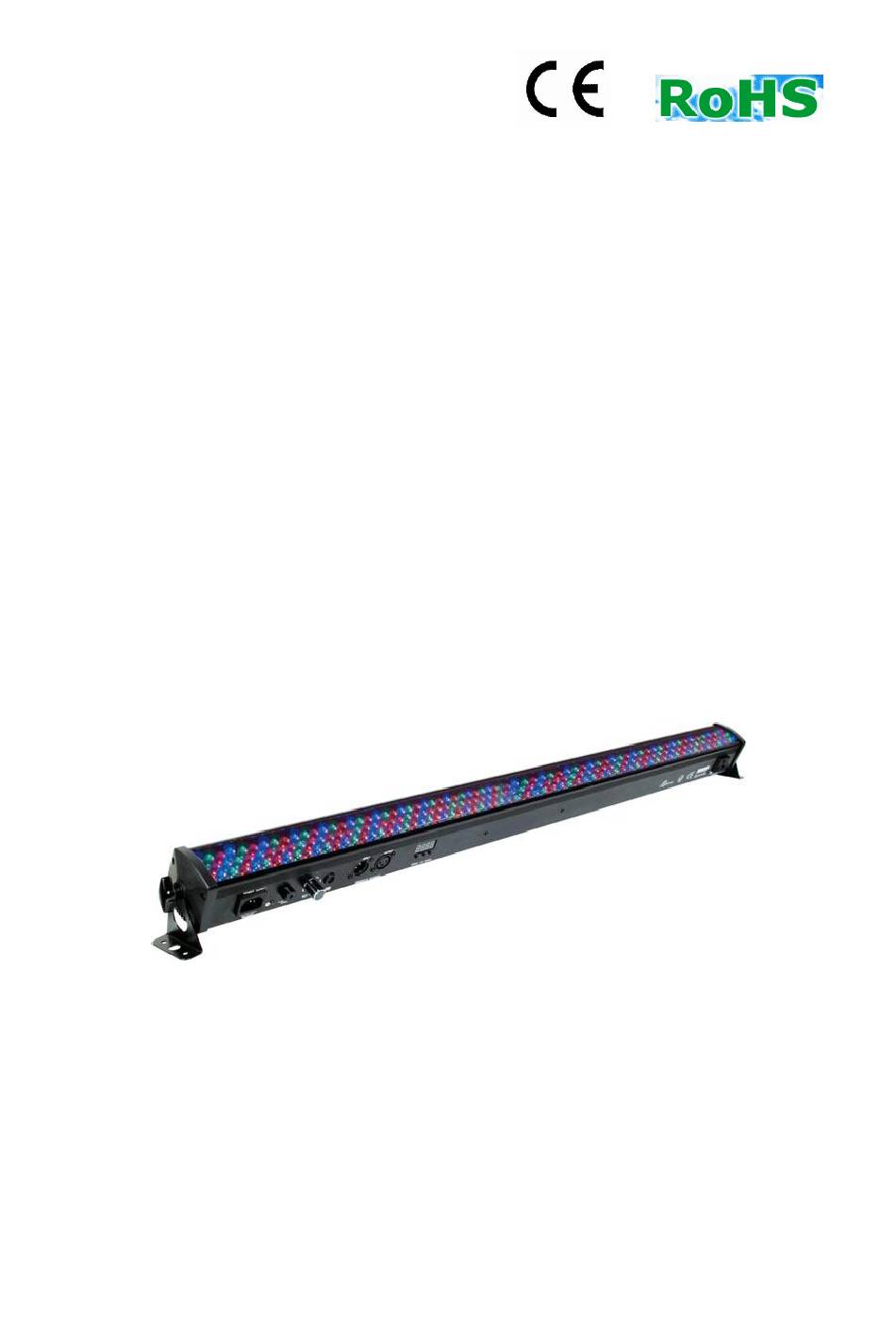

- Page 1 USER MANUAL Ultra bright LED BAR RGB, 252 LEDS IP20 （LED-BAR-252IP20）...
-
Page 2: Table Of Contents
catalogue summarize ........................ 1 safety instruction ......................1 outside size picture ..................... 2 main function ......................3 DMX controller function ................... 3 Display operation instruction ..................4 Menu instruction ......................4 Operating control instruction..................5 XRL connection instruction ..................5 Connection picture ..................... -
Page 3: Summarize
The built-in program includes dimmer, strobe, water change, gradual change, fading and so on. International standard DMX 512 signal is requested. Packing list LED-BAR-252IP20 light bracket 2 pcs T-shaped screw 2 pcs ... -
Page 4: Safety Instruction
Safety instruction ● Make sure the power supply voltage are consistent with this lights，Ensure the use of voltage is in the range of the request technical parameter. ●before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. -
Page 6: Main Function
4.Main Function high quality LED light source, low consumption, high brightness, stable function,and long life each color of LED with 256 dimming. RGB can make over 16.7 million colors. dim 0%-100%, Strobe、gradual change、jumping change DMX512 Controller，3 button set DMX ID address with led display,each pixel with 84 LEDS and total in 3 pixel. -
Page 7: Display Operation Instruction
10-255 Red general dimming 0-100% Green dimming (one pixel to another) 10-255 Green general dimming 0-100% Blue dimming (one pixel to another) 10-255 Blue general dimming 0-100% 0-255 The first red pixel dimming 0-100% 0-255 The first green pixel dimming 0-100% 0-255 The first blue pixel dimming 0-100% 0-255... -
Page 8: Operating Control Instruction
“SP00”:built-in speed adjustable SP00-SP15 ”Pr00”; Built-in program mode,Pr00-Pr15 ”FA00”: gradual change model（FA00-FA15 speed are the quickest） ”FL00”: strobe model（FL00-FL15 speed are the quickest） operation Press Menu key each time will switch a kind of model. UP/Down can change the content of this model, the parameter would be saved automatically, which means you will enter the process saved previously when you start the light next time. - Page 9 power line in series, when 220V AC should less than 35 lights, and 110V AC less than 20 lights! ! ! 9.XLR cable connecting XRL cable： The stand connection way of the XRL is: one end connect to the male plug ,and the other connect to the female.
-
Page 11: Connection Picture
10.Connecting picture Light connecting picture： Power IN 11.Problem Analysis Problem Checking way Check the power source plug is in normal or not Check the switch of the lights is off or on Can not turn on the ... - Page 12 Check the DMX cable is normal or not Check if the lights is in DMX mode（A001） When connect to the electricity， did the led flash one time? If so， the power source is normal; If not， please check if the switch and Display not bright the transformer has power out ...
-
Page 13: Technical Specification
● Anti-electricity intension：1.5KV ● Insulation Resistance：＞２MΩ ● Control mode：stand alone/ master and slaver ● Channel： 9CH ● Beam Angle: 25° ● Size:：1000*60*60mm ● Net Weight：2KG 6101 N 23rd Street, Suite K McAllen, TX 78504 USA e-mail: info@sirs-e.com Phone: (956)522-2006 Fax: (956)686-7380...
