Summary of Contents for Ainstein WAYV Air

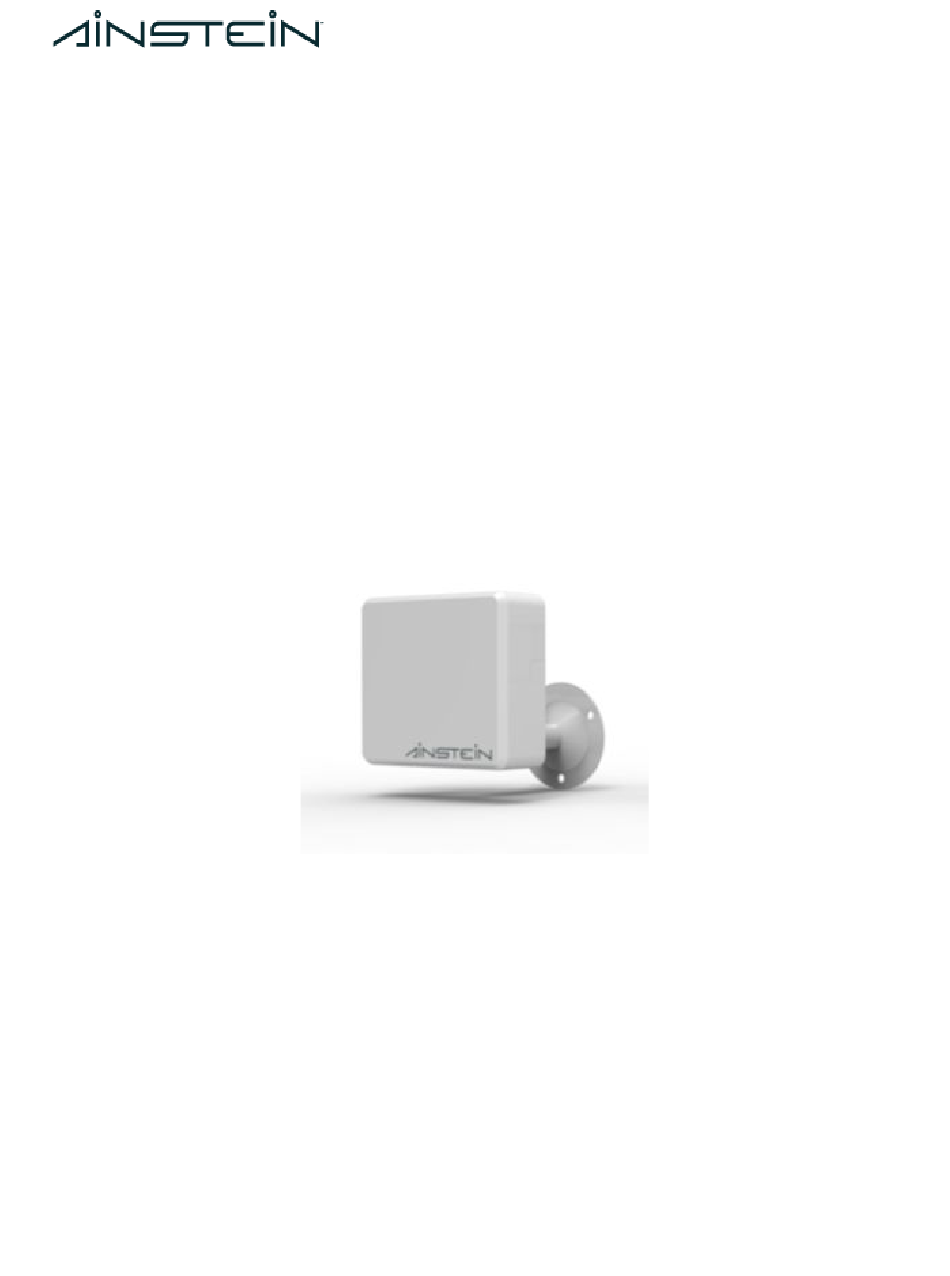

- Page 1 2029 Becker Dr Lawrence, KS 66047 User Manual WAYV Air FCC Version (Draft) D00.02.06 August 17, 2020 Proprietary information Page 1...
-
Page 2: Revision History
2029 Becker Dr Lawrence, KS 66047 Revision History: Version Number Date Authors Notes D00.00.01 Sept 16, 2019 Muhua Luo D00.00.02 Sept 19, 2019 Hao Liu Modify, supplement hardware related content D00.01.01 Sept 26, 2019 Andrew Translation and Megaris Technical Revision ... - Page 3 Only peripherals complying with FCC limits may be attached to this equipment. ● Operation with non-compliant peripherals or peripherals not recommended by Ainstein. Modification of this device may void the user’s authority to operate the equipment ● Maintain 20cm of separation for the device during operation. ...
-
Page 4: Firmware Version Information
The latest Version Radar Application Firmware V2.0.29 Radar Bootloader V2.0.10 GUI Tool on Windows machine V1.0.1.6 Note: The table only indicates the latest version of firmware/software for Wayv Air. For previous ... -
Page 5: Specification
2029 Becker Dr Lawrence, KS 66047 1. Introduction Wayv Air is a short-range radar that detects people indoors. It operates at 60GHz frequency band, and its detection range is up to 6 m. The small size and light weight make ... - Page 6 We also provide API with source code for the end-users who would like to receive data from Wayv Air and do their own customized development. Please contact Ainstein to request it, NDA or other extra documents might be needed for this request. ...
- Page 7 the above picture. Please make sure that the USB port for Wayv Air can support the current at ...
-
Page 8: Wifi Mode Connection
AP Mode connection. Note: To make sure WiFi connection between Wayv Air and host PC is functioning properly, please ... - Page 9 Lawrence, KS 66047 1. Power Wayv Air device on. Make WiFi connection between host PC and Wayv Air Set IPV4 address of host PC as: 1 92.168.4.65 ○ Find WiFi name (Serial Number) of desired Wayv Air device ...
- Page 10 S ection 6.1 ) 1) Wayv Air is in WiFi AP Mode by default, if the user never configured it to WiFi Station Mode. Skip all the rest of steps in 4 and jump to 5. 2) After making RS485 AP Mode connection, click ‘System Config’...
- Page 11 2029 Becker Dr Lawrence, KS 66047 3. Click ‘Connection config’ icon, select ‘WIFI’ in ‘Connection config’ panel, port number 8877, then click ‘OK’ button 4. Click ‘Connect’ icon. GUI will pop up a ’Save File’ window, select the path and type the name you prefer to save the data, click ‘Save’...
- Page 12 192.168.4.65 , this is the WiFi Adapter on your host PC you have set in step 3 above. 6. After selecting the proper IP, Wayv Air will be able to connect to the host PC and display the object(s), like the following figure. Proprietary information Page 12...
- Page 13 2029 Becker Dr Lawrence, KS 66047 When the host PC and Wayv Air device make connections successfully, information of Wayv Air will be ...
- Page 14 2029 Becker Dr Lawrence, KS 66047 1. Set IPV4 address “Obtain an IP address automatically” 2. Find your host PC WLAN IP address. a. Windows OS: “ipconfig” in cmd b. Linux OS: “ifconfig -a” in terminal 3. In GUI, click ‘System Config’ icon;...
- Page 15 2029 Becker Dr Lawrence, KS 66047 4. Set ‘WiFi insert name’ and ‘WiFi insert code’ as exactly the same as name and password of current local network. 5. Set ‘Server address’ as the host PC’s WLAN IP address (IPv4). 6.
- Page 16 RS485-to-USB, we recommend to use Yu Tai UT-890A. 1. Hardware connect Wayv Air and host PC via Yu Tai UT-890A 2. Click ‘Connection config’ icon, select proper COM port and baud rate, then click ‘OK’ ...
- Page 17 2029 Becker Dr Lawrence, KS 66047 2. Click ‘Connect’ icon, GUI will pop up a ’Save File’ window, select the path and type the ...
- Page 18 For details of this connection, refer to the S ection 7 (RS485 Hub). 7. RS485 Hub Note: RS485 Hub is not included in Wayv Air; It is a separate accessory for users who require RS485 ...
- Page 19 The interface between RS485 hub and DSC (Data Service Center) is Ethernet cable or USB cable. 7.1 RS485 Hub Hardware 1) Ethernet Port 2) Power Supply Port 3) USB Port 4) RS485 port(s) for multiple Wayv Air unit(s) Proprietary information Page 19...
-
Page 20: Firmware Update
1. Click ‘System config’ icon 2. FInd and check ‘CFG cmd’ and type proper commands, then click ‘Config’ button to enable These commands are designed for tuning Wayv Air’s specs, including sensitivity, scenario size etc.. For ... - Page 21 complete the firmware update process. The Wayv Air should automatically reboot with the ...
- Page 22 WiFi insert code: WiFi password in Station Mode ● Radio switch: User can select shutdown RF temporarily or permanently. When RF is shutting ● down, Wayv Air will stop working and no target will be displayed on GUI window Proprietary information Page 22...
- Page 23 If the connection works on ‘115200’ in ‘Connection config’, click ‘System config’ icon and configure ‘485 baudrate’ to ‘921600’, then reconnect the Wayv Air unit with ...
- Page 24 2029 Becker Dr Lawrence, KS 66047 b. If the connection works on ‘921600’ in ‘Connection config’, go to step 2 in the ...
- Page 25 2029 Becker Dr Lawrence, KS 66047 Note: If the RS485 connection doesn’t work in either 115200 b/s or 921600 b/s, try to press and hold the ‘Reset’ button, then use 115200 b/s in ‘Connection Config’. ...
- Page 26 2029 Becker Dr Lawrence, KS 66047 Note: ONLY Wayv Air hardware with high-speed RS485 interface hardware can support point and cloud display. Please specify ‘Require high-speed RS485 interface’ when ordering or contact us before shipment. 12. Reset ...
- Page 27 2029 Becker Dr Lawrence, KS 66047 13. Disconnect Wayv Air Click to disconnect Wayv Air in the GUI. Proprietary information Page 27...
- Page 28 2029 Becker Dr Lawrence, KS 66047 Contact Us: ADDRESS: 2029 Becker Drive, Lawrence, KS 66047 USA EMAIL: Hi@ainstein.ai PHONE: 785-856-0460 Proprietary information Page 28...
