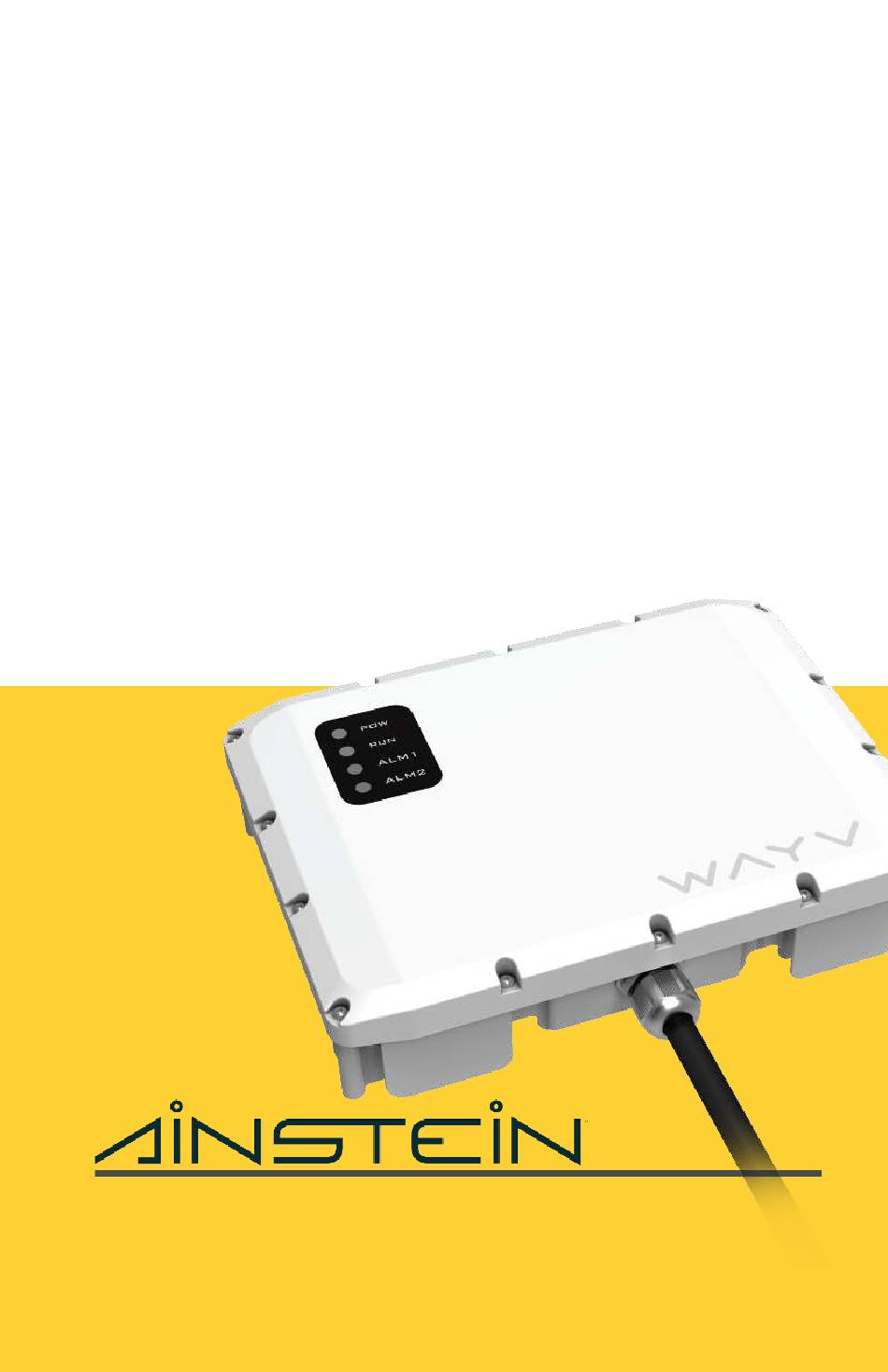

- Page 1 WAYV Pro Installation Instructions Safety from numbers...
- Page 2 ADDRESS: 2029 Becker Drive, Lawrence, KS 66047 USA EMAIL: hi@ainstein.ai PHONE: 785-856-0460...
-
Page 3: Installation
Installation The radar azimuth has the DBF angle measurement capability, the pitch is a narrow beam and does not have the angle measurement capability, the plane shown is the antenna plane The default installaNon orientaNon of the radar is as follows:... - Page 4 Figure 1 ~4 Take the cross bar as an example, the installaNon steps are shown in Figure 1~4:...
- Page 5 1. Confirm the installaNon posiNon and place the installaNon bracket horizontally on the crossbar; Picture 1 : WAYV Pro radar installaNon picture 1 2. Confirm the diameter of the crossbar, select the appropriate clamp, and use a screwdriver or sleeve to fix the clamp Nghtly.
- Page 6 3. Use 4pcs M5x20 three combinaNon screws to fix the radar equipment on the bracket, please pay special a]enNon to the posiNon of the radar equipment; Picture 3 : WAYV Pro radar installaNon picture 3...
- Page 7 4. Adjust the le_, right and pitch angles of the stand according to the actual scene. Picture 4 : WAYV Pro radar installaNon picture 4 • In order to minimize the interference from the ground to the radar, it is recommended that the installaNon height is not less than 5m, and there should be no strong obstrucNons such as people, buildings, metal poles, etc.
