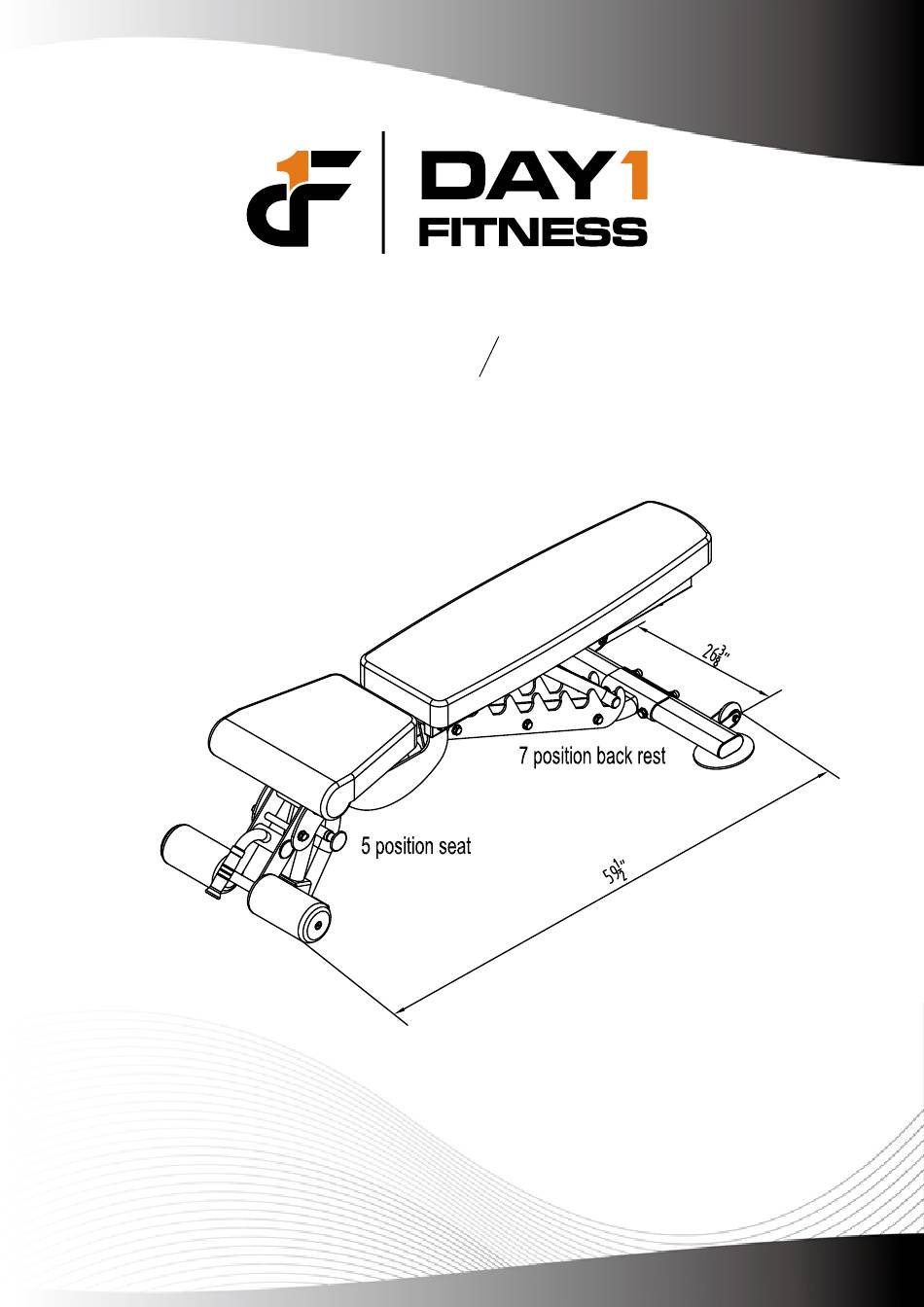

- Page 1 ADJUSTABLE BENCH, 1000LB RATED BO7DQ32572 DIBNCH10...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS 1. Please read instructions thoroughly before assembly. Familiarize yourself with all parts 2. Assemble according to instructions and only use listed items 3. It is recommended that another person assist you with assembly of the bench 4. Only use for recommended exercises and intended use 5. Inspect parts periodically for wear and tear and replace when needed 6. Watch children and pets around the bench 7. Do not place any sharp objects on the bench 8. Be sure that plenty of space is available around the bench to perform intended exercises 9. Consult your physician before starting any exercise program to insure you are in good health to begin exercising. ASSEMBLY 1. Make sure you have plenty of open space and ventilation to assemble your bench 2. Use floor padding, such as cardboard or mat to avoid scratching your floor during assembly 3. The nuts and bolts contain a slight amount of grease to protect them from corrosion. It is advised to keep a rag handy to wipe your hands 4. Some items have been pre‐assembled prior to shipment. They are shown on the assembly drawings for reference in the event replacement parts are needed. 5. With many different bolt lengths, please use caution to use the correct bolt length called for at each step of assembly. 6. A socket wrench is advisable for easy assembly ... -
Page 3: Exploded View
EXPLODED VIEW 32 33 38 36... - Page 4 NUMBER DESCRIPTION QUANTITY MAIN FRAME REAR BASE SEAT SUPPORT JOINT TUBE ADJUSTABLE PLATE BACKREST SUPPORT BACKREST ADJUSTMENT LEG EXTENSION ARC SPLINT FOAM CAP ∅45 ROUND PLUG 50*25 RECTANGLE PLUG 80*40 OVAL PLUG OVAL BUSHING SQUARE CUSHION HANDLE CAP FOAM ROLLER WITH COVER WHEEL BEARING 608 BEARING 6001...
- Page 5 Step 01 1. Place Main Frame (1) upright on the ground. 2. Attach Rear Base (2), Arc Splint (9) to Main Frame (1) with two M12*105 bolts (28), four Arc Washers (35) and two M12 Lock Nuts (38). Step 02 1.
- Page 6 Step 05 1. Attach one Adjustable Plate (5) onto Main Frame (1) with three M12*105 Bolts (28), and three Washers (36).( *See figure for correct placing.) The flat end is the front of the Adjustable Plate and should be facing towards Seat Support (3).
- Page 8 RD. 2018-8-10 R0...
