easiTrack GenX Series Installation Manual

This installation guide is for the additional OBD cable we offer as a substitute for even easier

installation. This document serves as a walkthrough on how to successfully install GPS Devices

using the OBD Connector.

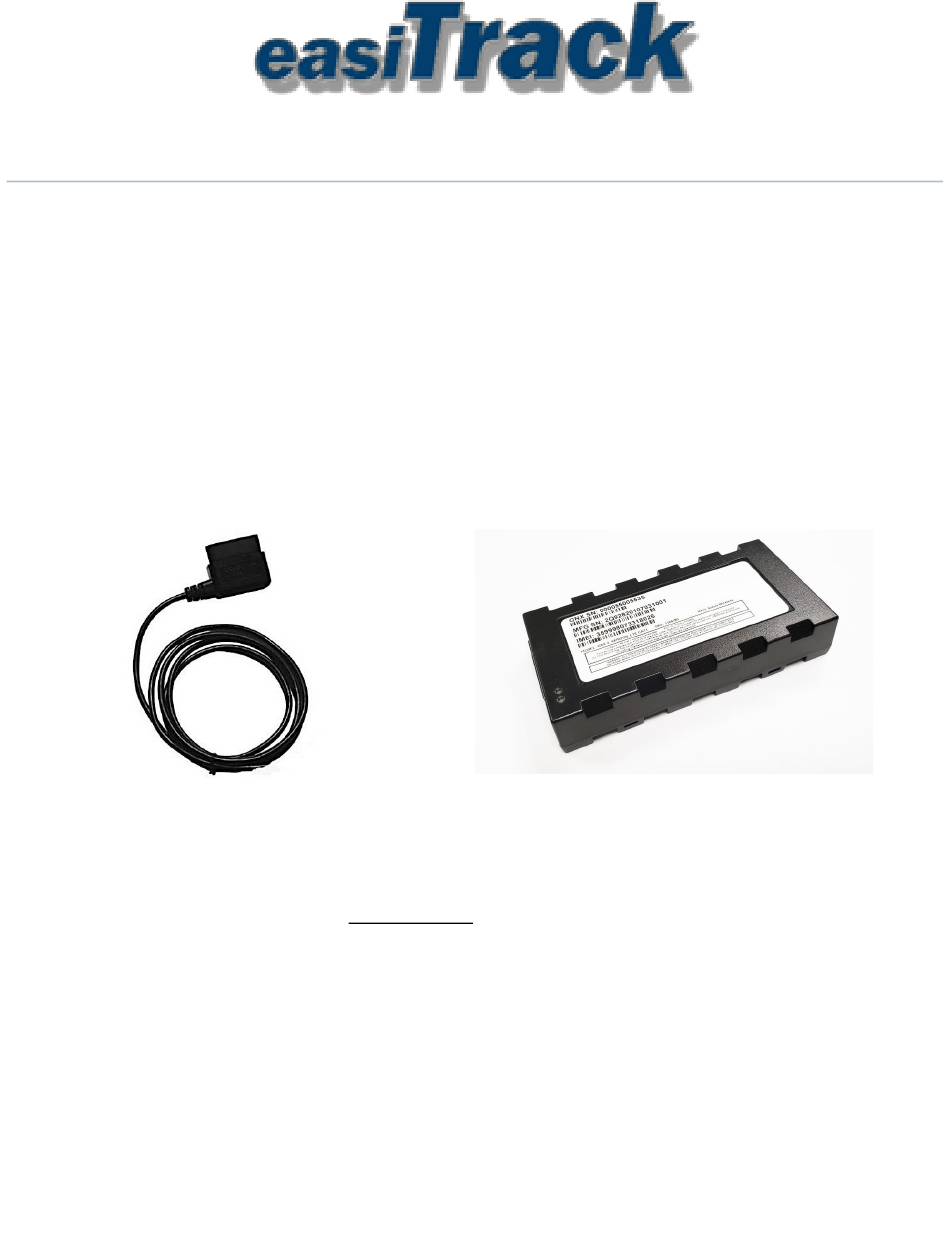

Just connect the cable to the OBD2 port of your vehicle and the other end to the EasiTrack

GPS tracking device.

OBD Connector

Step 1) Locate the vehicle's OBD2 Port. Typically, it can be found in the foot well of the

vehicle on the driver's side. See Figure A

Step 2) Locate a covert spot for the GPS tracking device. We recommend areas under

or within the dashboard. The device should be facing up towards the sky with the

label on top. Mount and secure the device with adhesive tape or zip ties.

Ensure that the unit is secure and cannot move freely and that the area the unit is

mounted in will not get wet or be subject to the elements.

DECEMBER 3, 2019

Installation with OBD Connector

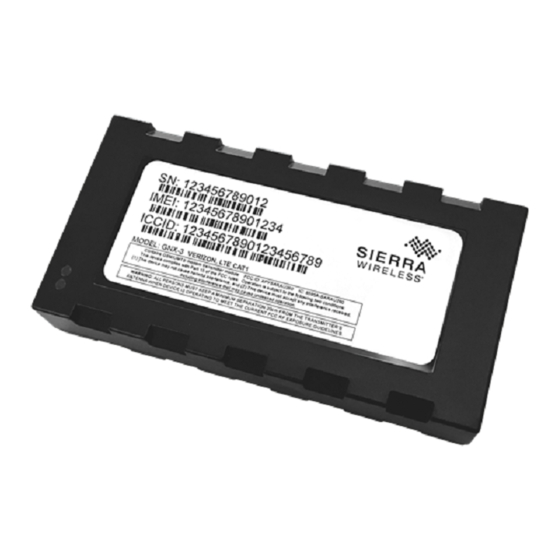

GPS Tracking Device

EASITRACK

Table of Contents

Do you have a question about the GenX Series and is the answer not in the manual?

Page 1 This document serves as a walkthrough on how to successfully install GPS Devices using the OBD Connector. OBD2 Power Connector Just connect the cable to the OBD2 port of your vehicle and the other end to the EasiTrack GPS tracking device. OBD Connector...
Page 2 Step 5) After 5 to 10 minutes, the device should register on the network, provision itself to your account be tracking. Step 6) Login with your username and password at http://www.easitrack.net. Your vehicle should be live and reporting on the map. Your installation is now complete.
Page 3 **** PLEASE READ **** *This installation guide is for a 16 pin OBD2 Cable, EasiTrack currently does not offer GPS OBD2 cables for vehicles with a 6 or 9 pin OBD port. *** EasiTrack makes information available on its web site to enhance customer knowledge and promote a better understanding of the hardware and its setup and configuration.
