Package contents

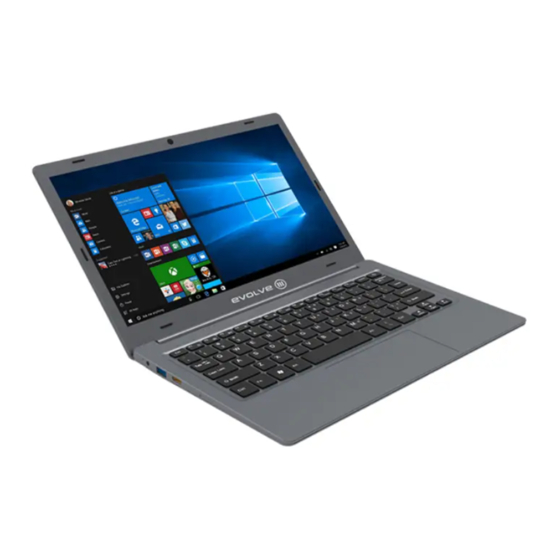

Product name: Notebook
Product Model numbers: MZB1164G64GW10
Brand name: Evolve III
TM
Power adapter (100V-240V)
X
Quick guide
Important safety and legal information
Remove all components from the packaging and remove the packaging material,
including the protective film. Check to ensure that the delivery is complete.
If you find that there are missing or damaged components, contact customer service
immediately.
Technical specifications
Processor (CPU): Intel® Celeron® N3450Processor (up to 2.2GHz) quad core*
Operating system: Windows 10 Pro
RAM/Internal storage: 4GB/64GB
Graphics unit (GPU): Intel® HD Graphics 500 (C)*
Screen size: 11.6"
Display: TN display (1366*768; 16:9)
Camera: Front: 2MP
Interfaces: 1x Mini-HDMI®, 1x TF, audio out/MIC in (3.5mm), 1x USB2.0, 1x USB3.0.
Network: WIFI 802.11 b/g/n, Bluetooth 4.0
Card slot: TF Card
More: Hall-Sensor, Analogue-microphone, Stereo speaker
Size: 277mm x190.3 mm x17.8mm
Weight: approx.1000g
Material/Color: PC + ABS︱Cool Grey
Battery: Li-polymer (charging via DC IN)
Operation and storage
Temperatures: between
5℃ to 30℃
Relative humidity: of 30% to 70%
Quick guide
Charging the Notebook
Please charge your Notebook fully before using it for the first time.
Connect the DC plug on the supplied power adapter to the charging socket (DC IN)
on the Notebook.
Then plug the power adapter into a socket.
The charging LED lights up while the device is charging.
Advertisement
Table of Contents
Related Manuals for Evolve III MZB1164G64GW10
Summary of Contents for Evolve III MZB1164G64GW10
- Page 1 Package contents Product name: Notebook Product Model numbers: MZB1164G64GW10 Brand name: Evolve III Power adapter (100V-240V) Quick guide Important safety and legal information Remove all components from the packaging and remove the packaging material, including the protective film. Check to ensure that the delivery is complete.
- Page 2 Only leave the power adapter connected to the socket until the battery of the Notebook is fully charged. In addition, always disconnect the power adapter from the Notebook when you are not charging the Notebook. Turning on the Notebook for the first time Bring the screen upwards until it is standing at a minimum angle of 90 to the °...
- Page 3 slider.The Notebook searches for all available for all available wireless networks nearby and then displays them as a list (“Show available networks”). e Click the network that you wish to connect to. f Enter the network key (password) if necessary. g .
- Page 4 Do not short out the device and/or charger. Fire hazard andor risk of burns from damaged or leaking batteries Do not use or charge the device if the battery if damaged or leaking. Do not use or charge the device if the battery is damaged or leaking. Avoid skin contact with the device and/or battery if the battery is leaking.
- Page 5 RSS-Gen Issue 4 December 2014"&"CNR-Gen 4e Dé cembre 2014: - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
