Evolve III Maestro Ebook 11V2 User Manual

Evolve III Maestro Ebook 11V2 User Manual

Advertisement

Quick Links

Package contents

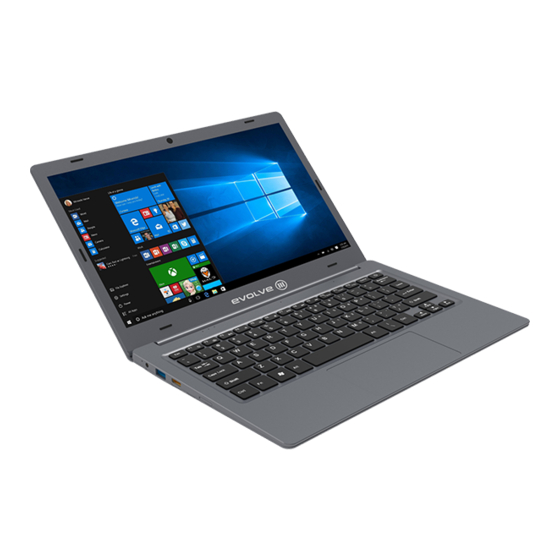

Product name: Maestro EBook
Product Model numbers: Maestro-EBook11V2
Brand name: Evolve III
TM
Power adapter (100V-240V)
X
Quick guide
Important safety and legal information
Remove all components from the packaging and remove the packaging material,
including the protective film. Check to ensure that the delivery is complete.
If you find that there are missing or damaged components, contact customer service
immediately.

Technical specifications

Processor (CPU): Intel® Celeron® N3450Processor (up to 2.2GHz) quad core*
Operating system: Windows 10 Pro
RAM/Internal storage: 4GB/64GB
Graphics unit (GPU): Intel® HD Graphics 500 (C)*
Screen size: 11.6"
Display: TN display (1366*768; 16:9)
Camera: Front: 2MP
Interfaces: 1x Mini-HDMI®, audio out/MIC in (3.5mm), 1x USB2.0, 1x USB3.0,
Card slot: 1x TF card slot , 1x SIM card slot.
Network: WIFI 802.11 b/g/n, Bluetooth 4.0
More: Hall-Sensor, Analogue-microphone, Stereo speaker
Size: 277mm x190.3 mm x17.8mm
Weight: approx.1000g
Material/Color: PC + ABS︱Cool Grey
Battery: Li-polymer (charging via DC IN)

Operation and storage

Temperatures: between
5℃ to 30℃
Relative humidity: of 30% to 70%
Quick guide

Charging the Notebook

Please charge your Notebook fully before using it for the first time.
Connect the DC plug on the supplied power adapter to the charging socket (DC IN)
on the Notebook.
Then plug the power adapter into a socket.
The charging LED lights up while the device is charging.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Maestro Ebook 11V2 and is the answer not in the manual?

Questions and answers

Thoweko neckyon
April 13, 2025

How do I log to password

1 comments:
Mr. Anderson
April 13, 2025

To log in to the Evolve III Maestro Ebook 11V2:

1. Turn on the Notebook.
2. Wait for the lock screen to appear.
3. Press any key on the keyboard to unlock the screen.
4. If the Notebook is password-protected, enter the password when prompted.

This answer is automatically generated

Gary Stevens
April 12, 2025

What adapter is specific to the Maestr-Ebook11V2, I have lost the original

1 comments:
Mr. Anderson
April 12, 2025

The Evolve III Maestro Ebook 11V2 is compatible with a power adapter rated at 100V–240V and charges via DC IN.

This answer is automatically generated

C Murray
May 8, 2025

How to contact customer service for repair if service web form is not responded to? Is there an actual phone number (not email)? Need to speak to a person.

Summary of Contents for Evolve III Maestro Ebook 11V2

  • Page 1 Package contents Product name: Maestro EBook Product Model numbers: Maestro-EBook11V2 Brand name: Evolve III Power adapter (100V-240V) Quick guide Important safety and legal information Remove all components from the packaging and remove the packaging material, including the protective film. Check to ensure that the delivery is complete.
  • Page 2 Only leave the power adapter connected to the socket until the battery of the Notebook is fully charged. In addition, always disconnect the power adapter from the Notebook when you are not charging the Notebook. Turning on the Notebook for the first time Bring the screen upwards until it is standing at a minimum angle of 90 to the °...
  • Page 3 slider.The Notebook searches for all available for all available wireless networks nearby and then displays them as a list (“Show available networks”). e Click the network that you wish to connect to. f Enter the network key (password) if necessary. g .
  • Page 4 Do not short out the device and/or charger. Fire hazard andor risk of burns from damaged or leaking batteries Do not use or charge the device if the battery if damaged or leaking. Do not use or charge the device if the battery is damaged or leaking. Avoid skin contact with the device and/or battery if the battery is leaking.
  • Page 5 IC Caution: - English: This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
