H
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.

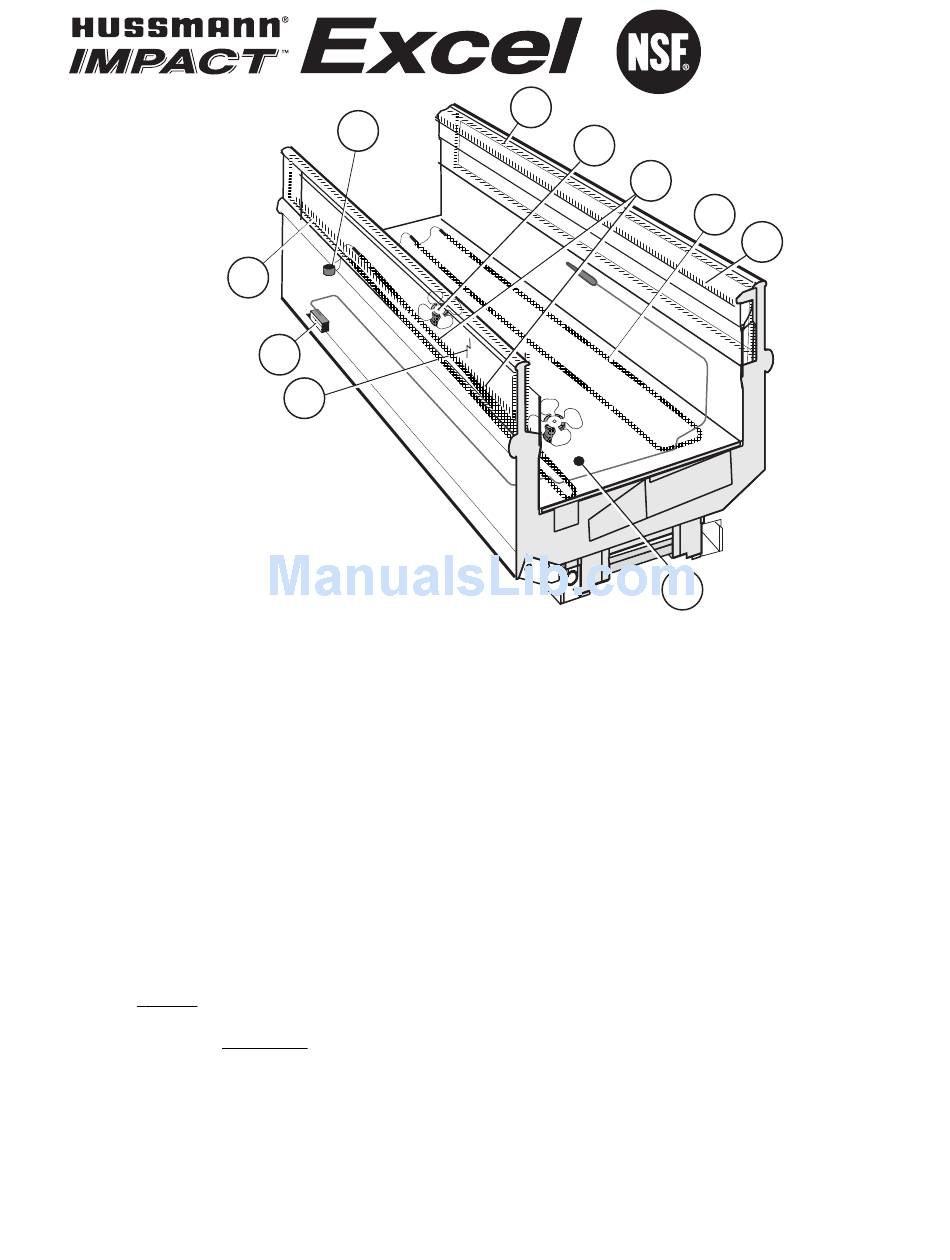

Item
Part #
Description
F
A
,
T
AN
SSEMBLIES
AND
HERMOSTATS
A.
4W Standard Fan Assembly
0392457
Fan Motor, Evaporator
(MO.4410101)
0382383
Fan Blade (FB.4780617)
4W Energy Efficient Fan Assembly
0477653
Fan Motor, Evaporator
(MO.4410544)
0382383
Fan Blade (FB.4780617)
B.
Optional Adjustable Refrigeration Thermostat (2)
C.
0398557
Defrost Termination Thermostat
(Electric Defrost only)
(CT.4440611)
D.
0481370
Heater Switch
(Koolgas Defrost only)
(CT.4440738)
H
EATERS
E.
208V Evaporator Defrost Heaters
0465916
8 ft case (HE.4850630)
0465915
12 ft case (HE.4850631)
Note: Revision D updates the Heater Switch part number on Page 1 and adds capacity and weight (
©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
C
B
I
Wiring Item #
J
A
F
Item
Part #
H
(
EATERS
CONTINUED
(1)
F.
208V Drip Pan Defrost Heaters, Electric
0462160
0444296
(1)
120V Drip Pan Defrost Heaters, Koolgas
0465907
0465908
G.
Nosing Anti-sweat Heaters
0495007
0495008
(3)
H.
Return Grille Anti-sweat Heaters
0495011
0495012
(4)
I.
Return Glass Anti-sweat Heaters
0474778
0474779
(5)
J.
Discharge Glass Anti-sweat Heaters
0465421
0465422
Technical Data Sheet
P/N 0465897_D
NSF
®
March 2008
E
G
D
Description
Wiring Item #
)
8 ft case (HE.4850636)
12 ft case (HE.4850572)
8 ft case (HE.4850622)
12 ft case (HE.4850623)
8 ft case (HE.4850685)
12 ft case (HE.4850686)
8 ft case (HE.4850689)
12 ft case (HE.4850690)
8 ft case (GL.4987838)
12 ft case (GL.4987839)
8 ft case (GL.4978595)
12 ft case (GL.4978596)
).
Page 5
P/N 0465897_D
FIG
Certified
(6)
(7)
(8)
(9)
(10)
(11)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hussmann FIG

  • Page 1 12 ft case (HE.4850631) Note: Revision D updates the Heater Switch part number on Page 1 and adds capacity and weight ( ©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM Wiring Item # Item...
  • Page 2: Frozen Food

    Refrigeration Outlet Back of case to center of refrigeration outlet RH end of case to center of refrigeration outlet 2 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. PHYSICAL DATA Merchandiser Drip Pipe (in.) Merchandiser Liquid Line (in.) Merchandiser Suction Line (in.)
  • Page 3 58 (1471) NSF Certification This merchandiser model is manufactured to meet ANSI/NSF (National Sanitation Foundation) Standard #7 requirements for construction, materials & cleanability. P/N 0465897_D HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM (1218) COIL (140) (1071) (873) (1175)
  • Page 4 Standard 230V 50/60Hz Export 208V Electric Defrost 230V Export Electric Defrost 120V Koolgas Defrost Standard Lighting None 4 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. 8 ft 12 ft Amperes 8 ft 12 ft 0.62 0.93 0.76 1.14 0.30 0.45...
  • Page 5 ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft Computed using ARI 1200 standard methodology: Total Display Area, ft Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product Reference Guide. The standard shelf complement for this model is...
  • Page 6 Return Glass Anti-sweat Heater Purple 120V POWER All components must have mechanical ground, and the merchandiser must be grounded. 6 of 7 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A. Electric Defrost – Standard Nosing Anti-sweat Heater Defrost Termination Thermostat 208 V Power from...
  • Page 7 Heater Switch 120V POWER 120V NEUTRAL WARNING All components must have mechanical ground, and the merchandiser must be grounded. Circled Numbers = Parts List Item Numbers. P/N 0465897_D 7 of 7 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM...
