Qudelix 5K User Manual page 12

UNBALANCED (Single-Ended) 3.5mm
Works with Single ES9218p
•
Max. 2V RMS output
•

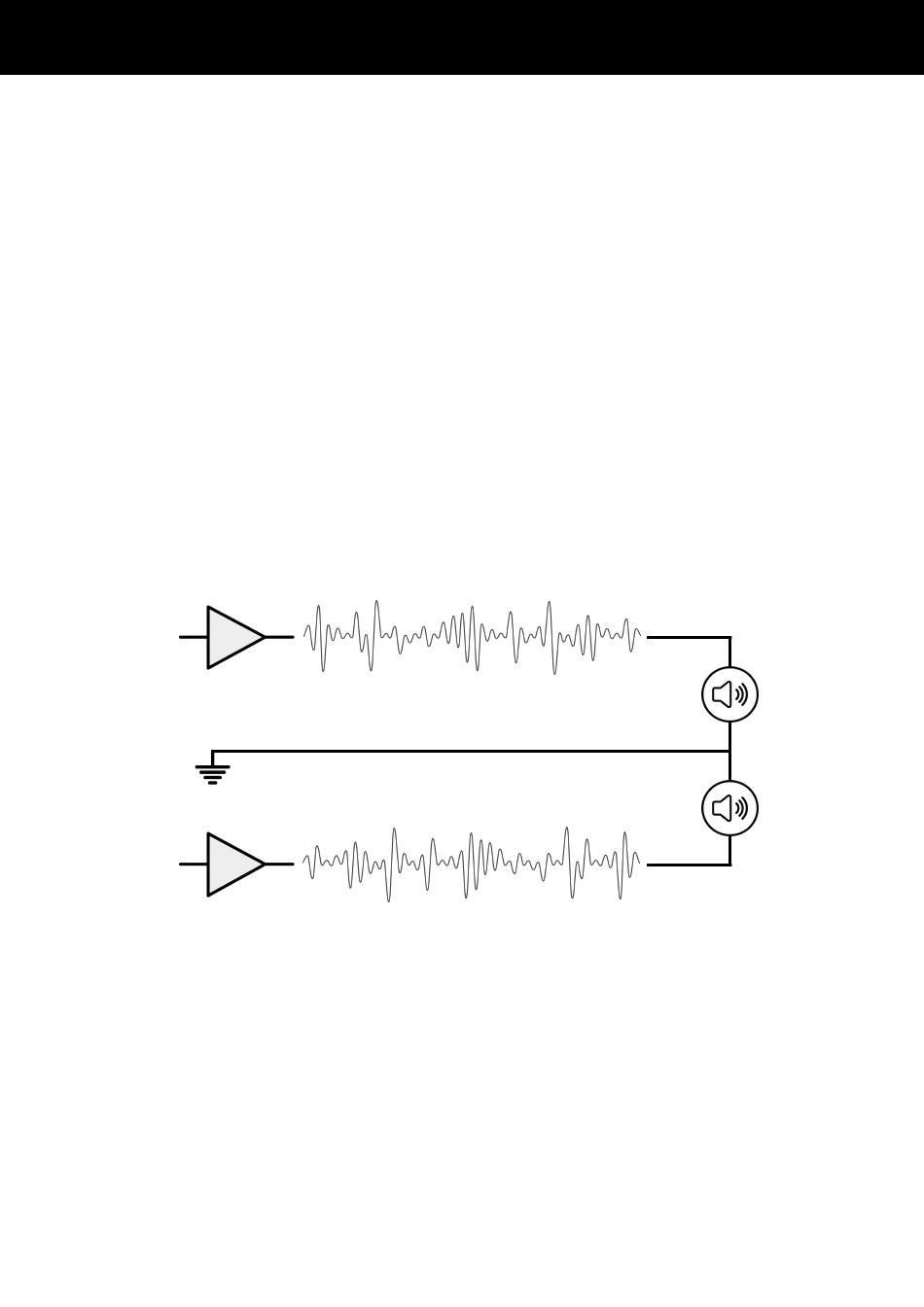

3-Wire Output from Source Device
•
2 ch DAC/AMP for Stereo Audio
•
1-pin Ground
•
Common Ground
•
Ground Pin goes to both Speaker-L and Speaker-R
•
Ground ripple(noise) affects both L & R channel
•
Both AMP_NOISE and GROUND_NOISE affects the Sound Quality
•
VL = L + AMP_NOISE + GROUND_NOISE
•
VR = R + AMP_NOISE + GROUND_NOISE
•
L
Ground
R
VL
VR
