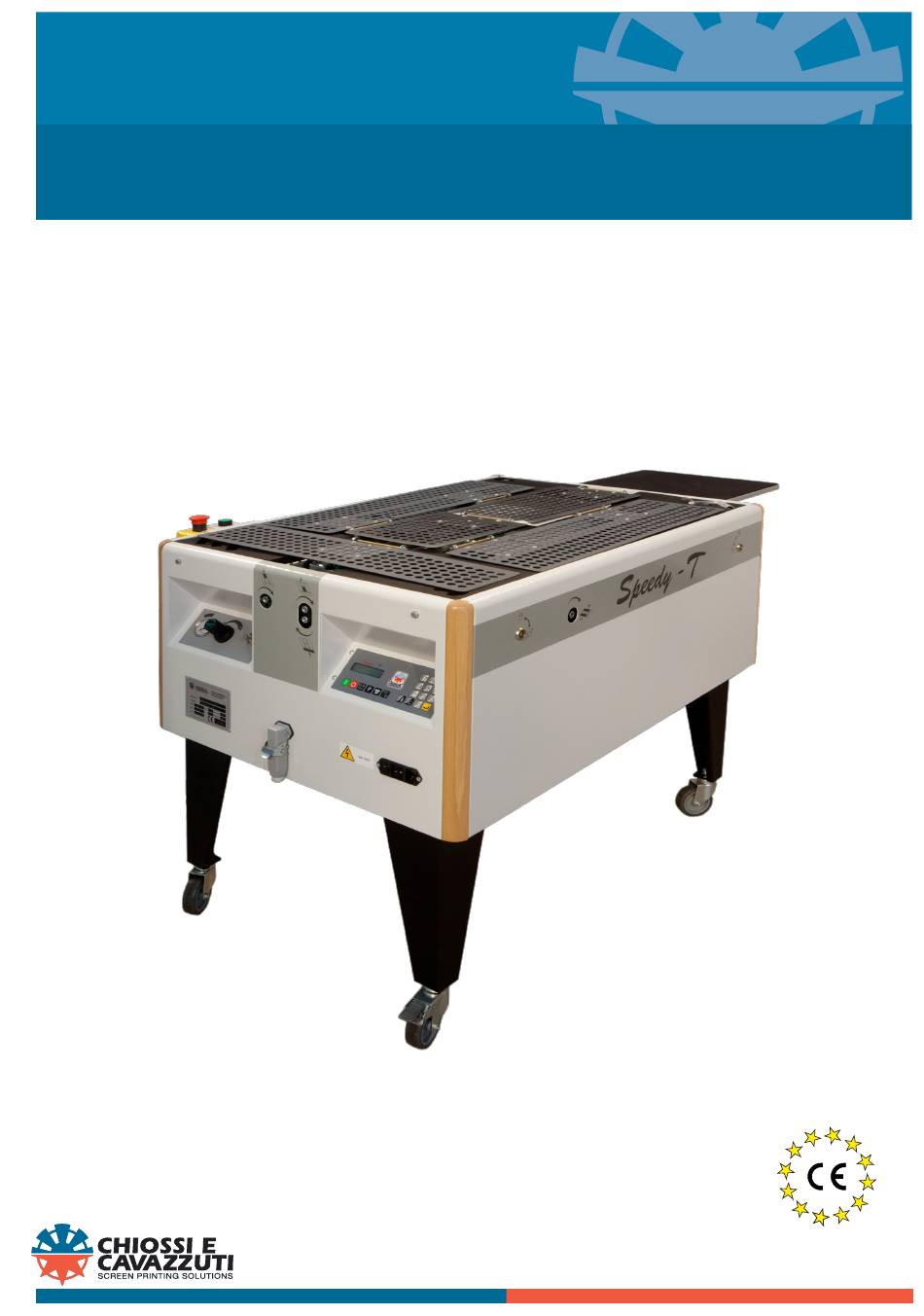

- Page 1 INSTRUCTION MANUAL Speedy T - Automatic Folding Machine TRANSLATION OF ORIGINAL INSTRUCTION Version Nr 002 Date 01 /07/201 6 via Costituzione 50/D 4201 5 Correggio RE) Italy - Tel. + 39 0522 637224 Fax. + 39 0522 631 1 80 cc@chiossiecavazzuti.com...
-
Page 3: Table Of Contents
SUMMARY 4 INTRODUCTION 5 SAFETY 6 CE CERTIFICATION 7 WARRANTY 8 FEATURES 9 PARTS DESCRIPTION 1 1 DIMENSIONS AND HANDLING 1 2 INSTALLATION 1 4 START UP AND ADJUSTMENTS 1 6 PROGRAMS 21 USAGE 24 MAINTENANCE 26 ELECTRIC SCHEMATIC 28 PNEUMATIC SCHEMATIC via Costituzione 50/D 4201 5 Correggio RE) Italy - Tel. -
Page 4: Introduction
Congratulations on your choice. Selecting this product you join the large number of users of Chiossi e Cavazzuti products. With this equipment you can achieve excellent quality results. To that end, we ask that you read carefully this instruction manual before using the machine. -
Page 5: Safety
SAFETY GENERAL NOTICES The Operator must read carefully and understand fully all the information given in this Manual and especially all the safety precautions given in this section. Keep the machine and its work area clean and tidy. Do not remove or alter the plates and stickers attached to the machine by Manufacturer. DO NOT REMOVE OR BY-PASS THE SAFETY SYSTEMS INSTALLED ON THE MACHINE. -
Page 6: Ce Certification
CE CERTIFICATION The manufacturer: Chiossi e Cavazzuti s.r.l Via Costituzione 50/D 4201 5 Correggio (RE) ITALY DECLARES THAT THE MACHINE: Serial Number ............Manufacturing year: ............Trade name: Speedy-T 2005 Description: Automatic folding machine Intended use: Folding and bagging garmints made from fabric. -
Page 7: Warranty
CUSTOMER ADDRESS: COMPANY ......................ADDRESS ......................TEL......................Address where the Warranty Certificate is to be sent: Chiossi e Cavazzuti s.r.l. Via Costituzione 50/D 4201 5 Correggio (RE) ITALY Tel: +39 0522 637224 Fax: +39 0522 631 1 80 Email cc@chiossiecavazzuti.com... -
Page 8: Features
Speedy T 2005 can operate in two ways: – with stacker: the folded T-shirt is placed neatly on a stacker which descends thanks to a photocell making it possible to form a stack;... -
Page 9: Parts Description

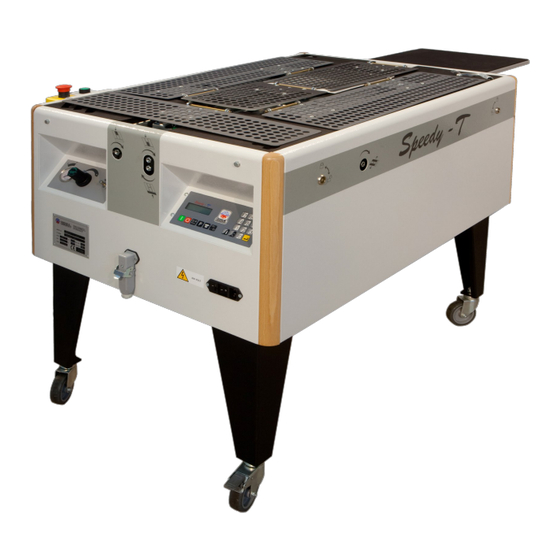

- Weight HOW THE MACHINE WORKS The Speedy t 2005 folding machine comprises a work top with mobile air-operated blades used to fold and prepare fabric garments (as such T-shirts) for packing. The article will be spread by hand on the work table. The stacker (optional as detailed in the price list) will hold a 200 mm high stack of folded T-shirts. - Page 10 ENVIRONMENTAL CONDITIONS The machine does not need any special environmental conditions. It should be installed in a well lighted and ventilated factory building with a level floor designed to handle the weight of the machine. Working area temperature range: 5°- 40° C, with humidity not above 50% at 40°C or not above 90% at 20°...
-
Page 11: 1 Dimensions And Handling
DIMENSIONS AND HANDLING PACKING AND SHIPPING Transport must be done by professionally qualified personnel. The machine must be transported in such a way as to prevent any damage to its parts. Depending on the type of transport vehicle, the machine must be protected against any type of impact or strain. The machine is delivered on a pallet and can then be moved with a forklift truck or transpallet. -
Page 12: 2 Installation
INSTALLATION ASSEMBLY When the volume of the transport box has considerable incidence on the cost of the transport (paid by the customer), it can be delivered with the feet and the stacker cylinder (if ordered) disassembled to reduce the shipping volume by about 30%. In this case, the assembly instructions will be enclosed. - Page 13 ELECTRIC HOOK UP To eliminate problems when the machine is commissioned, follow the instruction given below: The electric hook up is customer's responsibility. The machine must be connected to the electric mains using the cable supplied in the installation kit. Voltage SINGLE-PHASE 230 V.ac +/- 1 0% or 1 1 5 V.ac +/- 1 0% .
-
Page 14: 4 Start Up And Adjustments
START UP AND ADJUSTMENTS REGULATING THE MACHINE The machine is fully factory tested before being shipped and therefore no regulations need be made. When the machine is started for the first time, the compressed air pressure should be adjusted as follows: Pull the air pressure regulating knob up to release it. - Page 15 OPERATING THE MACHINE The garment to be folded is spread on the work table with the back up and the neck towards the stacker. Press the pedal (or key 1 ) and the machine will execute the active folding cycle (from now on called program) and will then stop.
-
Page 16: 6 Programs
PROGRAMS Black rectangle = blade making the movement Dashed line = next folding line FOLD SEQUENCE N°0 Name: SHORT BAGGING Used for small or sleeveless garments or medium weight articles (fleece sweaters or pullovers) using large bags and where sleeves, if any, are hand folded. It is the fastest program. FOLD SEQUENCE N°1 Name: WIDE BAGGING In addition to the fold program 0 , it adds a second side fold. - Page 17 FOLD SEQUENCE N°2 Name: NARROW BAGGING In addition to the folds in program 0 , it adds a bottom fold. Used for long garments or short bags. FOLD SEQUENCE N°3 Name: NORMAL BAGGING Combine programs 1 and 1 . The most commonly used program to pack short-sleeved T-shirts and Polo shirts (or long-sleeved version with hand sleeved folding).
- Page 18 FOLD SEQUENCE N°4 Name: LONG SLEEVE BAGGING In addition to the folds in program 3 , this adds a third fold on the left side. Used with a long- sleeved garment if you only want to fold one sleeve by hand. Handles only light-weight fabrics and when you want speed rather than fold quality.
- Page 19 FOLD SEQUENCE N°6 Name: WIDE STACKER In addition to the fold in program 5 , this adds a second fold on the side. Used if a sleeve protudes beyond the fold line. It cannot slways be used because, if the bottom is not folded, the garment can come apart when tipped over.
- Page 20 FOLD SEQUENCE N°8 Name: NORMAL STACKER This combine programs 6 and 7 . This is the program most used to fold short-sleeved T-shirts and Polo shirts (or long-sleeved ones with manual sleeve folding). FOLD SEQUENCE N°9 Contains a copy of program 8. USE THIS PROGRAM TO CHECK OUT YOUR CUSTOMISED FOLDING PROGRAMS via Costituzione 50/D 4201 5 Correggio RE) Italy - Tel.
-
Page 21: Usage
USAGE OTHER PROGRAMS To handle special folding needs, each program can be modified by the user following the instructions given in the specific Electronic Instrument manual. The name of the program can also be changed. These operations should only be done by expert personnel. We recommend using program N°... - Page 22 POSITIONING THE GARMENT TO BE FOLDED Some basic rules for placing the garment on the work table must be followed to guarantee good folding results. To simply matters, let's use a sleeveless article such as a T-shirt to illustrate these rules. - Place the T-shirt with the front against the folding table.
- Page 23 REGULATING BLADE POSITION • Always switch the machine off to prevent it from being started by accident. • Do not force the screws. If, when you turn them in one direction you encounter resistance, try turning them in the opposite direction (the screw is probably all the way in or out). Let's presume that our machine is configured with medium type blades (220 x 300 bag).
-
Page 24: Maintenance
The air filter condensation collecting jar automatically drains when the circuit is depressurised. Weekly: depressurise the speedy t 2005 . Clean the stacker photocell with compressed air. EXTRAORDINARY MAINTENANCE The operations for which reference should be made to Authorised Technical Assistance Centres are listed below. - Page 25 MAINTENANCE DESCRIPTION MACHINE STATUS Change a solenoid Remove the two screws retaining the control Unplug the machine from valve panel and open the panel. Find the defective the power socket and solenoid by means of the wire it is connected to. disconnec the compressed Detach the air hoses and the electric connector air hose.
-
Page 26: Electric Schematic
ELECTRIC SCHEMATIC via Costituzione 50/D 4201 5 Correggio RE) Italy - Tel. + 39 0522 637224 Fax. + 39 0522 631 1 80 cc@chiossiecavazzuti.com... - Page 27 LEGENDA INT 1 POWER SUPPLY SWITCH. GLASS FUSE 5 X 20 2 A. CHANGING VOLTAGE DEVICE. TRASFORMER 30 VA PRIMARY 1 1 5/230 V SECONDARY 20/24. V Speedy-t = MICROCOMPUTER. CN1 F CONNECTOR 4 POLES TONGUE. CN1 M CONNECTOR 4 POLES GROOVE. ELECTROVALVE MAIN.
-
Page 28: Pneumatic Schematic
PNEUMATIC SCHEMATIC via Costituzione 50/D 4201 5 Correggio RE) Italy - Tel. + 39 0522 637224 Fax. + 39 0522 631 1 80 cc@chiossiecavazzuti.com... - Page 29 via Costituzione 50/D 4201 5 Correggio RE) Italy - Tel. + 39 0522 637224 Fax. + 39 0522 631 1 80 cc@chiossiecavazzuti.com...
