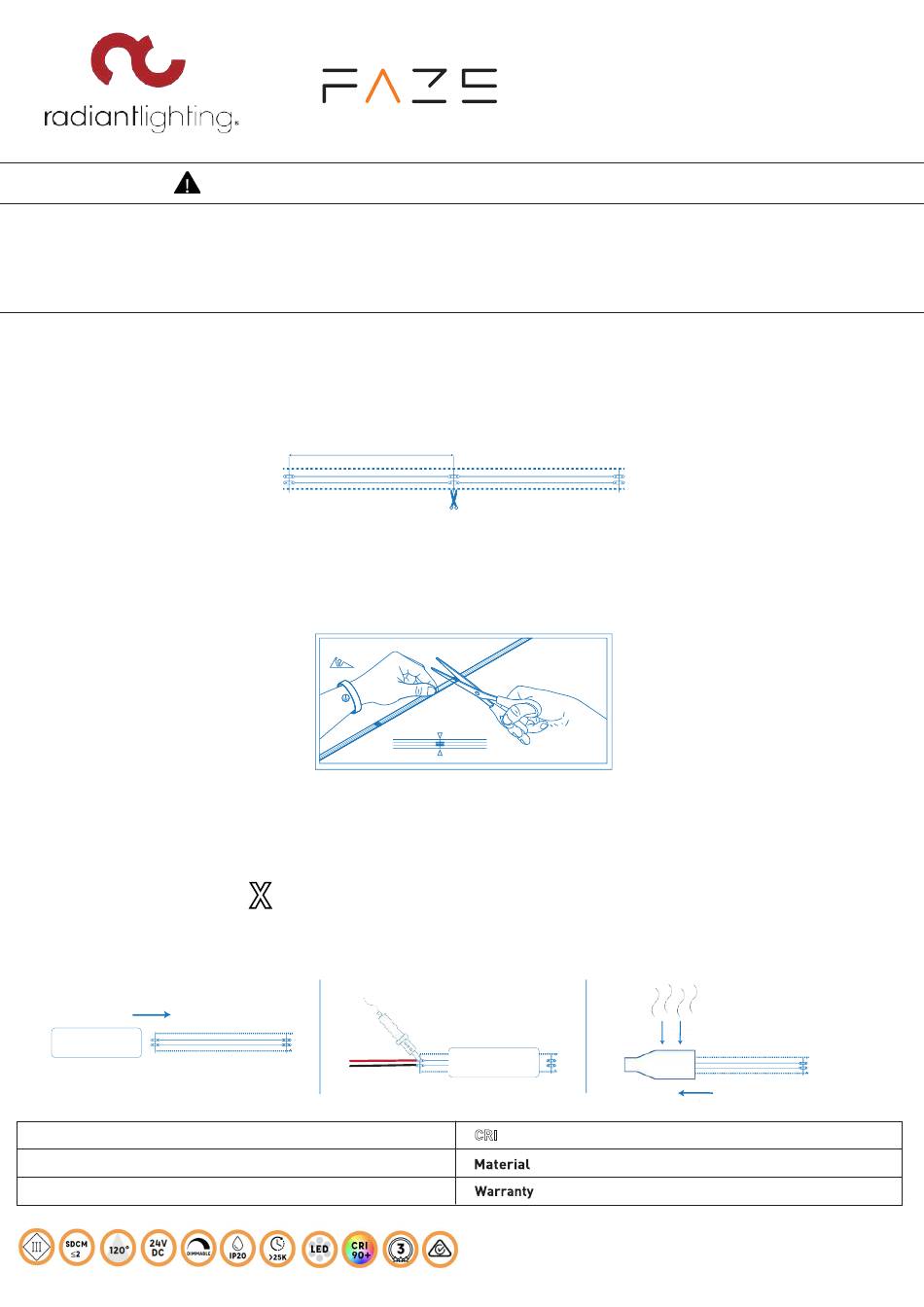

Radiant Lighting FAZE LED STRIP COB Installation

• Please ensure to read instructions correctly for the installation of the fitting provided. Failure to do so will result in a void of warranty and
compromises the safety of luminaire.
• Radiant Lighting are not liable for warranties when luminaire is damaged by incorrect installation. The installation of the luminaires must be
in accordance with the national safety regulations.
Please refer to Radiant Lighting's General Terms & Conditions for more information concerning the installation and warranty of our products.

INSTALLATION

1.
Check the required lengths of strip, and round measurements down to the nearest cutting point; in this case: 50mm
2.
Cut the strip between connection points to pre-measured lengths. Do not cut strip in any other spot (inbetween LEDs) as it will damage
the circuit and render that section unusable. Each section of the strip is made up of a separate circuit and can work independently
(each 25mm / 50mm / 100mm can be lit on it's own when cut and wired.)
3.
Choosing Drivers: Decide how many drivers you will need to complete your installation. If pre-cut lengths of strip are being
installed in different locations, you will need several drivers. If feasible, multiple cuts of strip can be linked back to one
driver.
STRIP LENGTH
4.
Cut heat shrink to required size then slide over the LED strip. Solder cable to the soldering pads and then slide heat shrink
back over and heat.
Heat Shrink
Category LED Strip lighting
Power
14W p/m
IP Rating 20
CAUTION - light fitting must be installed by a licensed electrician.
50mm
Calculate driver size required by using this simple equation:
X
WATTAGE PER METER
LED STRIP COB
+
=
10%
CRI
90+
PCB
3 Years
For warranty information please visit radiantlighting.com.au/warranty
For all other queries, please call us on 1300 438 609
TOTAL WATTAGE
