Seymour Z-500 Product Information Sheet

Paint Crank Filling Directions:

1. Wear safety glasses!

With some of these actions, there is a
risk of paint splattering, especially to
those unfamiliar with the apparatus.
2. Detach crank mechanism from
apparatus.
Unwind the crank completely, then grip
the
base support firmly and turn it
counterclockwise to
unlock it. Then pull the crank mechanism
out of the tube. Since this mechanism fits
so snug due to the rubber gasket that
seals it airtight, strong but controlled
pressure must be exerted to extract it.
Once it is free, set it aside. You can also
lubricate with water (if using water based
paint) or mineral spirits (if using solvent
based paint) to ease insertion back into
the tube.

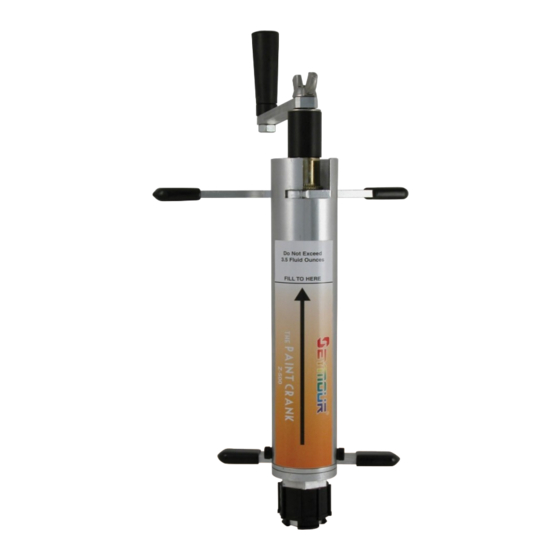

Z-500 Paint Crank
The Paint Crank is a professional paint injection tool.
Use it to easily aerosolize almost any custom water or
solvent-based paint or stain color in minutes.
The Paint Crank is perfect for do it yourselfers,
contractors or decorators.
This manually operated aerosol can filling tool is the
first of its kind to allow you to fill cans at a job site.
It's easy to operate and cleans up in a snap.
