Summary of Contents for Malide MLD-B06

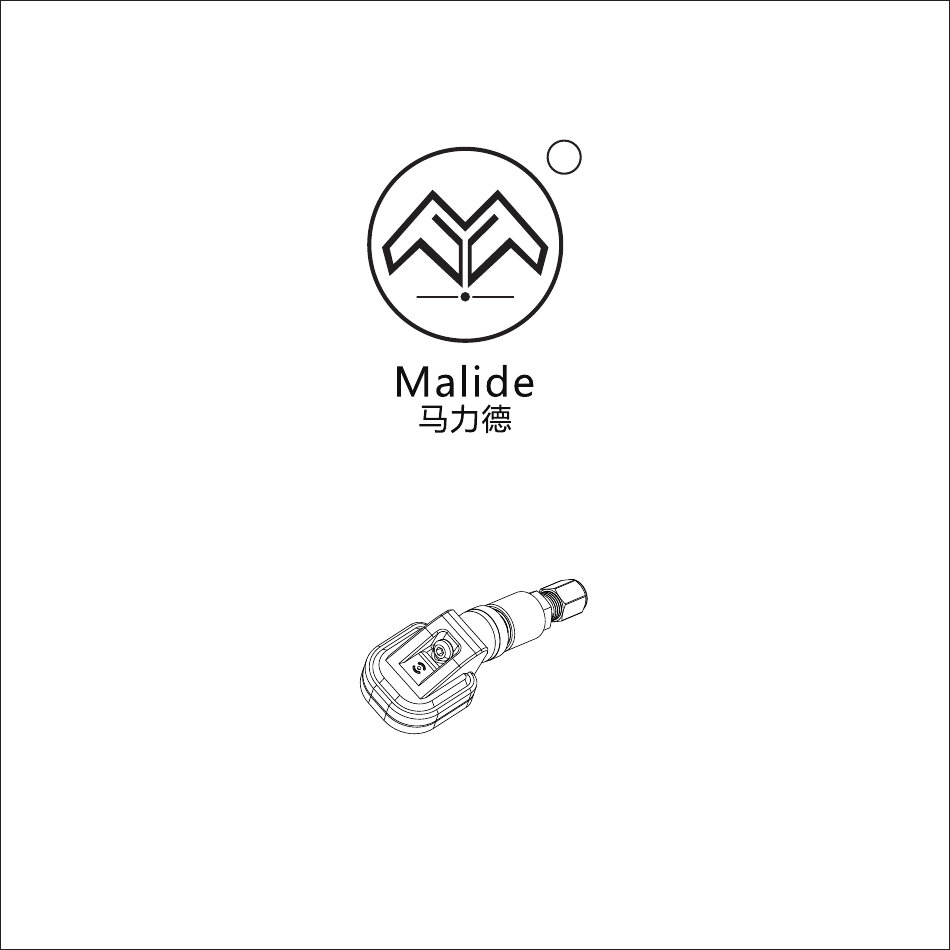

- Page 1 MLD-B06 & MLD-R01 使用说明书 User's Manual...
-
Page 2: Table Of Contents
目录 Contents 产品介绍 Product Introduction 注意事项 Precautions 配件清单 List of Accessories 装车说明 Instruction for Installation 安装步骤 Procedures of Installation 更换电池 Battary Repalcement 传感器配对步骤 Matching Procedures for Sensors 太阳能语音显示屏绑定 Binding of Solar Voice Display 太阳能语音显示屏说明 Instruction of Solar Voice Display App更多功能介绍 Introduction for More App Function 规格参数... -
Page 3: 产品介绍
与胎温,并可通过App 精确显示数值。若胎温胎压发生异常，App会通过语音及警示图标及时向您发出警报。 Malide BLE Tire Pressure Monitoring System (hereinafter referred to as Malide TPMS) can monitor the pressure and temperature of car’s tire,and the value can be correctly displayed through App.If the abnormalities occurs on the tire’s pressure and temperature,the App will send the alarm to you through the voice and warning icon. -
Page 4: 配件清单
配件清单 List of Accessories 充电线×1 传感器×4 太阳能语音显示屏×1 Solar Voice Display×1 Charging Cable×1 Sensor ×4 装车说明 Instruction for Installation on the Car 左后 左前 右后 右前 产品出厂时，已经配置好四个轮胎的传感器及ID码（每套传感器都有独立ID码），只需先将传感器安装至相应的位置轮胎上，即可使用； 若想用手机App查看数据，需先把传感器与手机App配对好（配对方法详看“传感器配对步骤”）。 When the product leaves the factory, the sensors and ID codes of four tires have been configured (each sensor has an independent ID code), just need to install the sensor to the corresponding positions of tires, and use it.You need to match the App with sensors first when you want to watch the datas(See the "... -
Page 5: 安装步骤
安装步骤 Procedures of Installation 螺丝钉 Screw 传感器 Sensor 阀杆、橡胶环 阀芯组件 Valve stem、Rubber ting、Valve core components 螺母 气嘴盖 Air nozzle cover A、内置传感器外观 、内置传感器分解图 、松开轮胎 、从车轮上拆下轮胎 Outer image of built-in sensor Loosen the tire Decomposition diagram Remove the tire from of built-in sensor car wheel 、用钳子拆下原轮胎... -
Page 6: 传感器配对步骤
传感器配对步骤 Matching Procedures for Sensors 系统设置 车辆1 1、点击图A主界面右上角设置符号，进行系统设置界面，如图B所示 语音提醒 Click the symbol in the upper right corner of the main interface of Figure A to enter the system setting interface, as shown in Figure B. 语言 简体中文 2、点击“绑定新设备”，进入图C所示界面 Click "Binding new device" to enter the interface shown in Figure C. -
Page 7: 太阳能语音显示屏绑定
太阳能语音显示屏绑定 Binding of Solar Voice Display 系统设置 语音提醒 1、绑定好所有轮胎的ID码后，点击这界面右上角设置符号进入图A界面; After binding the ID codes of all the tires, click the upper right corner of the main interface to set the symbol 语言 简体中文 to enter the interface A. 2、进入图B界面后，点击“配套设备绑定”; 车辆设定 After entering the interface of Figure B, click on “Supporting Device Binding”. -
Page 8: 太阳能语音显示屏说明
太阳能语音显示屏说明 Instruction of Solar Voice Display 1、按键说明 Button Description 开机：短按“ ”按键 Turn on:Short press button“ ” 关机：短按“ ”按键约一秒 太阳能板 Turn off:Press the button “ ” for about a second Solar panels 进入配对模式：长按按键“ ”约五秒并等显示屏信号“ ”标志闪烁 Enter pairing mode:Press the button “ ”for about five seconds and wait for “ ” in the display to flicker. -
Page 9: App更多功能介绍
App更多功能介绍 Introduction for more APP functions 1、在系统设置界面中，点击“车辆设定”进入到车辆设定界面，如图A所示，您可以对车辆图片、车辆名称、车辆型号和车牌号码进行设定。 In the setting interface of system, click the vehicle setting to enter the setting interface of vehicle as shown in Figure A, you can set the picture, name and type of vehicle as well as license numbers. 2、在系统设置界面中，点击“系统参数设置”进入到系统设置界面，如图B所示，您可以根据实际情况对前后轮的胎温胎压范围进行定义，... -
Page 10: 规格参数
规格参数 Specifications 参数 项目 Item Parameter 工作电压 2.4V-3.3V Working Voltage 睡眠电流 ＜3.0uA Sleeping Current 存放温度 -40℃-85℃ Storage Temperature 工作温度 -40℃-85℃ Working Temperature 工作湿度 95%(MAX) Working Humidity 工作频率 434Mhz Working Frequency 胎压监测范围 0-640kpa(0-6.4Bar) Monitoring range of tire pressure 胎温监测范围 -40℃-80℃ Monitoring range of tire temperature 电池容量... -
Page 11: 常见问题及解决方法
常见问题及解决方法 Common Problems And Solutions 1、刚配对好传感器或者打开App后，主界面无数据显示。 首先确定是否绑定好显示屏。传感器只有在刚装电池的20分钟内、行车速度超过20码、停车10分钟内、轮胎气压瞬间变化超过30kPa 或者轮胎转动超过20秒时， 才会发送数据，其他时间处于睡眠状态，睡眠状态不发送数据，因此接收端也不会接收到数据。 After the sensor is just matched or the App is opened, there is no data display on the main interface. First determine if the display is bound.And the sensor will only send data in the following situation: ①Within 20 minutes after the battery is installed;... - Page 12 FCC Statement -This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 13 苹果App下载 安卓App下载 IOS App Download Android App Download 制造商：深圳市马力德科技有限公司 Manufacturer：Shenzhen Malide Technology Co. Ltd. 地址：深圳市龙岗区平湖街道鹅公岭社区信鹅工业区26号A栋 Address: Building A, No. 26, Xin'e Industrial Zone, Egongling Community, Pinghu Street, Longgang District, Shenzhen, China 公司网址( )： Company Website http://malide.com.cn/ 邮箱( )： Email Malide@malide-sz.com...
