ATOM
Instruction manual

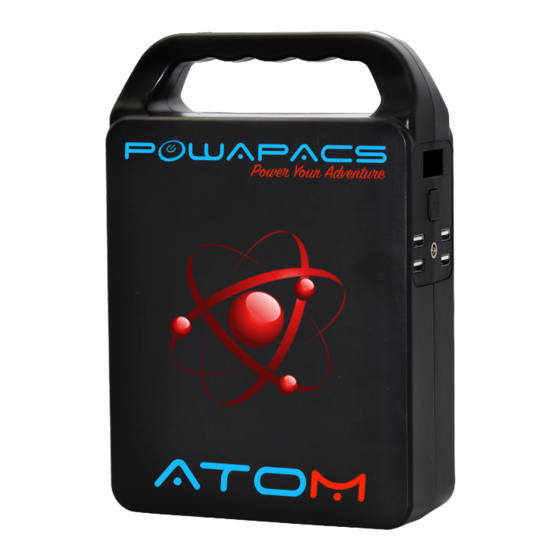

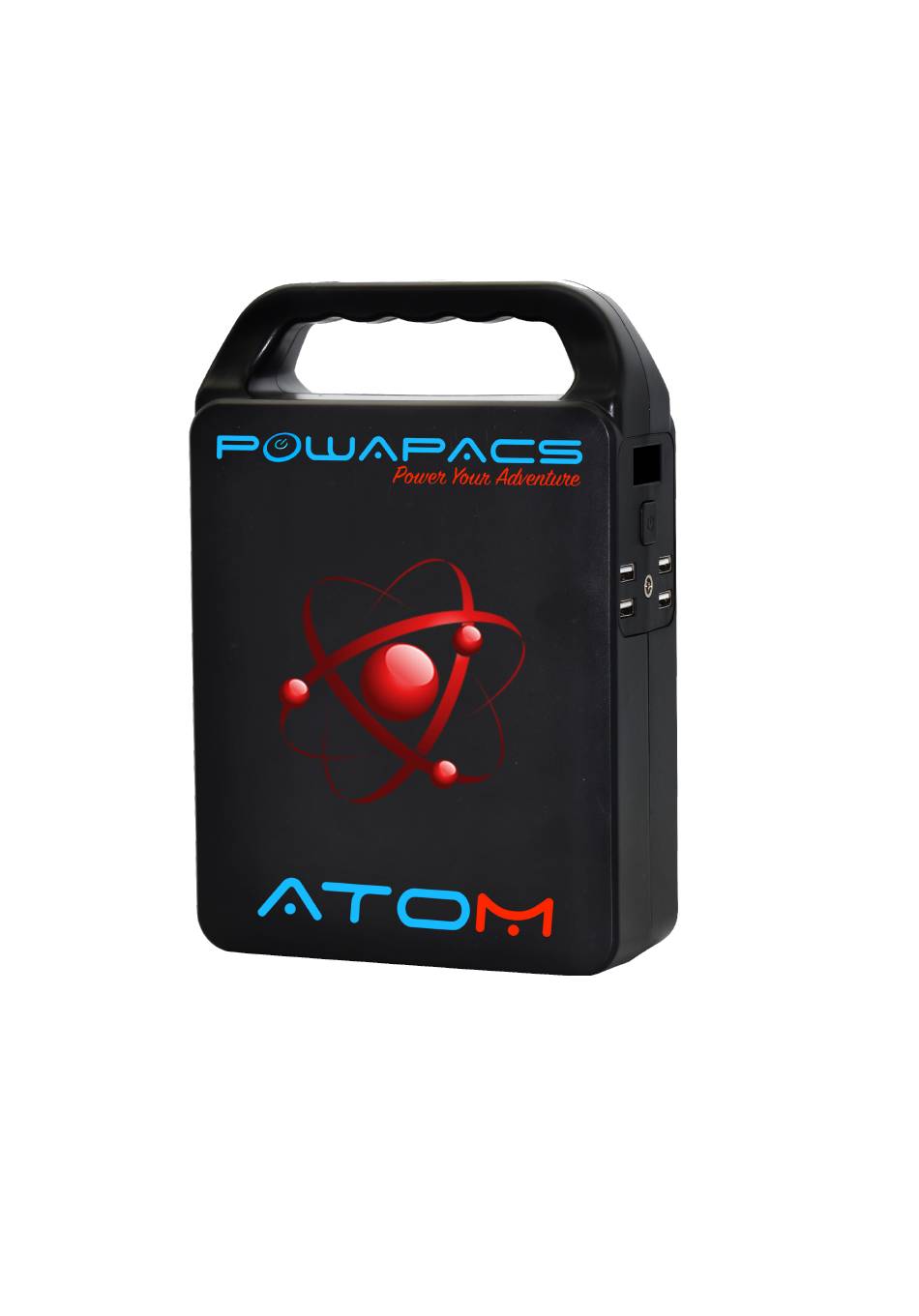

ABOUT THE UNIT
Thank you for using our Atom portable power bank. This device can provide
USB 5V, DC 12V and AC power to your appliance and portable electronic. For
safety Atom has built in protection battery system and auto protection circuit.
Before using this unit, please read the user manual carefully and retain for
reference.
Advertisement
Table of Contents
Related Manuals for Powapacs ATOM
Summary of Contents for Powapacs ATOM
- Page 1 Instruction manual ABOUT THE UNIT Thank you for using our Atom portable power bank. This device can provide USB 5V, DC 12V and AC power to your appliance and portable electronic. For safety Atom has built in protection battery system and auto protection circuit.
- Page 2 CHARGE ME NOW Before using or storing, plug your ATOM into the wall until it is fully charged. Keep your ATOM charged when not in use. For more tips and tricks on keeping your battery healthy, see the BATTERIES 101 section.
-
Page 3: Product Parameters
PRODUCT PARAMETERS 60,000mAh - 78,000mAh Capacity 200x65x165mm (LWH)Dimension Weight Approx 2-2.1KG Built-in battery cell 100% High quality lithium batter cells DC15V/4A Charging power DC 15V: 4-5 Charging time hours USB1+USB2 5V-3.1A(Max), USB output USB3+USB4 5V-3.1A(Max) DC 9~12.6V/10A (Max) DC power AC100V/60H or 220V/50Hz. -
Page 4: Product Description
PRODUCT DESCRIPTION User Information Display. AC/DC power indicator Error indicator Battery fuel gauge Charging status ON/OFF USB output x4 DC/Solar input Charge input Torch On/Off LED Torch AC Output 12V DC Output... -
Page 5: Product Instruction
The UID will display battery level % when the display read out is 100% the battery full, please remove the charger in time. Solar charging (if applicable). Connect the DC cable from the solar panel direct to the DC input on Atom. (IN) will flash on the UID indicating charging. -
Page 6: Product Application
Vehicle Charging. ATOM can be charged using a12v-24v vehicle input using a suitable vehicle cable (sold separately). User Information Display (UID) Display Status ## % Current remaining battery level Charging IN - Flashing Atom Power to USB & 12V 2.1A USB Device Connected @ 2.1A... - Page 7 ● Damage caused from misuse is not covered under the warranty. ● Powapacs are not responsible for return of the device for warranty repairs. ote the following damage is out of after service repair: 1, When the device is defective through misuse but not limited to, Damage to the appearance.
- Page 8 BATTERIES 101: ATOM utilises the latest and greatest in battery technology to accompany you on all life’s adventures. The versatile and lightweight Lithium Ion, is robust and powerful, we’ve compiled some helpful tips to keep your ATOM batteries working their best.
- Page 9 The best thing for any battery is to use it. Don’t leave the battery sitting without being charged for extended periods of time. If you will be storing the ATOM, make sure it’s fully charged before you put it away.
-
Page 10: Storage And Downtime Maintenance
Having your ATOM connected to a power source, like a solar panel or wall plug, between adventures or while in storage keeps its battery healthy and topped up. This prolongs battery life and will ensure your ATOM is charged and ready to go all day, every day. - Page 11 So when do I need to angle my solar panel? The angle of the sun in the sky depends on both the season and your location on the earth: In winter the sun is lower in the sky. In summer the sun is higher in the sky. And the closer you live to the equator (i.e.
- Page 12 The solution in this example is of course, to tilt the panel by 60° so that it captures all the sunlight: Solar Panel Top Tips • If you use a crystalline panel, don’t forget that even the shadow of a thin wire can make a difference to the power output.
