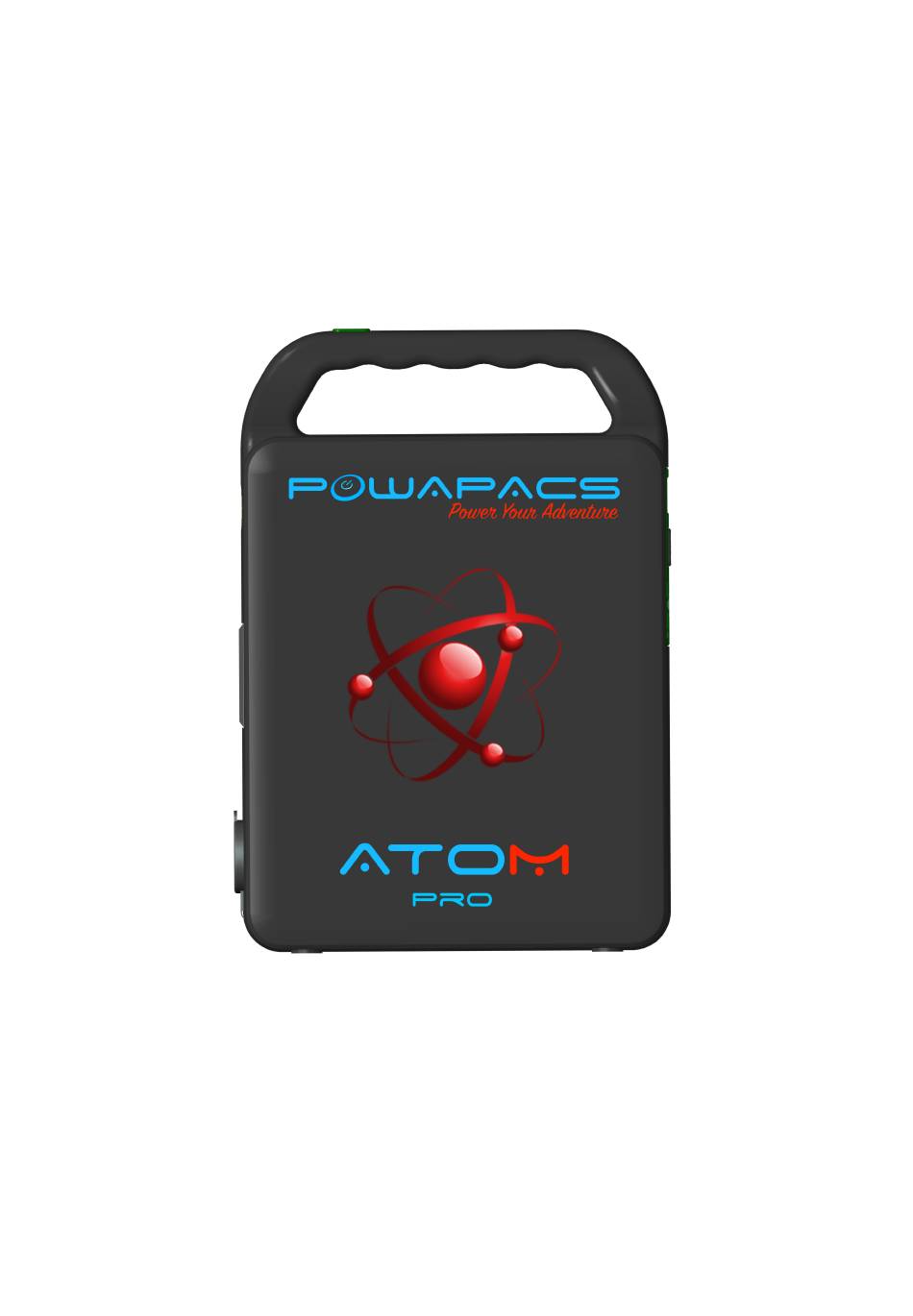

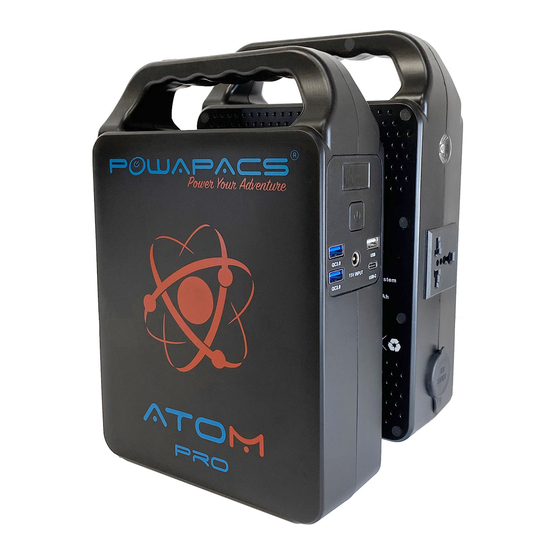

- Page 1 Instruction manual ABOUT THE UNIT Thank you for buying our Atom Pro portable power bank. This device can provide USB QC,Type-C, DC 12V and AC power to your appliances and portable electronic devices. For safety Atom has a built-in protection battery system and...
- Page 2 Before using or storing, plug your ATOM into a mains supply until it is fully charged. Keep your ATOM pro charged when not in use. For more tips and tricks on keeping your battery healthy, see the BATTERIES 101 section.
-
Page 3: Product Parameters
1.Product Parameters 78,000mAh Capacity 200x65x165mm (LWH)Dimension Weight Approx 2 KG Built-in battery cell 100% High quality lithium battery cells DC15V/4A Charging power DC 15V: 4-5 Charging time hours 2 x USB QC 3 9V-2A(Max) USB output 1 x USB A 5V-1A(Max) 1 x Type C 9V-2A(Max) - Page 4 1 x Portable power bank Contents 1 x Home charger 1 x Instruction manual 1 x Vehicle DC charger cable...
-
Page 5: Product Description
2. Product Description User Information Display. (UID) AC/DC power indicator Error indicator Battery fuel gauge Charging status ON/OFF USB QC X 2 USB A X 1 Type C X 1... - Page 6 DC/Solar input Charge input 12V DC Output 3. Product Instruction 1. Provide power for DC12V and 5V USB appli- ances. Press the power ON/OFF switch for short Dme, the UID will become acDve. The device is now power- ing 12v and USB outputs. Auto power detecDon, if no device is connected to the USBs aSer 30 sec ATOM will auto power “off”...
- Page 7 3. Recharging Atom. Charge using the AC Adapter provided. Connect the AC plug of standard charging adapter to the household AC socket, connect the DC plug of standard charging adapter with the DC input. Atom will now start to charge. IN will flash on the UID will display baXery level %.
-
Page 8: Product Application
5. PRODUCT APPLICATION This product is built using high quality original lithium ion batteries, meaning it is dur Display Status ## % Current remaining ba+ery level Charging IN - Flashing Atom USB QC Power to USB’s & 12V AC On AC output active able with no memory effect but high-capacity. -
Page 9: Battery Information
After service range: Defective performance when in normal use. e. Damage caused from misuse is not covered under the warranty. Powapacs are not responsible for return of the device for warranty repairs. ote the following damage is not covered by service repair: •... - Page 10 In no event will POWAPACS LTD be liable for any consequential or incidental damages arising from any use or malfunction of any POWAPACS LTD product, or from any breach of warranty, including damage to other devices. In no event will POWAPACS LTD...
-
Page 11: Storage And Downtime Maintenance
12. Storage and Downtime Maintenance ATOM Pro we recommend storing the Atom Pro at 75% charge. This prolongs battery life and will ensure your ATOM Pro can be charged and ready for use all day, every day. 13. Solar Panel ( If Applicable ) - Page 12 The best angle for your solar panels will depend upon your location and when you want your solar panels to be most efficient. At solar noon, which is exactly halfway between sunrise and sunset, the energy from the sun is at its greatest so the solar panels should be positioned to take advantage of this time.
- Page 13 When the sun is high in the sky (e.g. at midday in summer), then a 1m wide shaft of sunlight will be completely captured by that solar panel: Now, if the sun is at an angle of 30° from horizontal, that same 1m wide shaft of light actually is spread out over 2m when it hits the ground: The flat solar panel, in this example, will only get half the sunlight, and therefore...
- Page 14 • Solar panels will work behind glass, but with limitations. They are designed for direct sunlight, so if you put a panel behind glass or a plastic window its efficiency will be reduced. It may take up to three times as long to provide the same charge to a battery if you put the panel behind a window, even if it’s in full sun.
