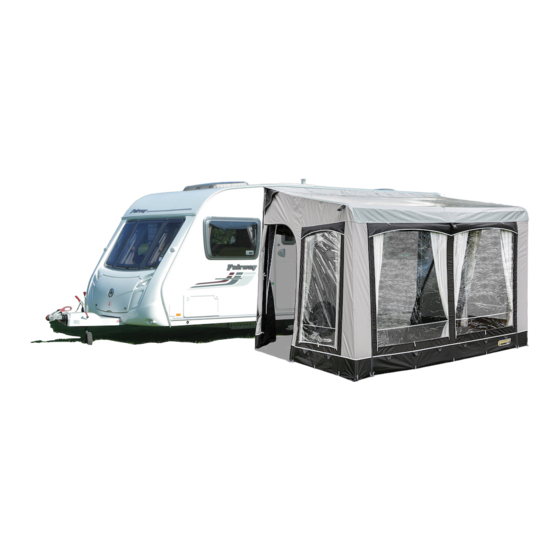

- Page 1 Snowdon Snowdon Porch Awning • Full item instructions and extended details •...
- Page 2 Page: 2 Snowdon Porch Awning instructions Thank you for purchasing this product. At Quest we take every care to ensure that the product fulfils your expectations. We hope you enjoy using this product General Information There are many different ways to erect your awing. We recommend using the method listed on the next page, but if you find a different way that works better for you, then that is perfectly fine as well.
- Page 3 Page: 3 Snowdon Porch Awning instructions Storage , Care and Cleaning Details on how to look after your awning. Canvas Seams • The main seams of this awning are taped to ensure water protection. These can become damaged over time but can be repaired and re-sealed by using seam sealer.
- Page 4 Page: 4 Snowdon Porch Awning instructions Storage , Care and Cleaning Details on how to look after your product. Storage To help keep your product looking newer for longer and prolong the life and use of the product, we recommend that the product is always kept inside its bag when stored away. If the product is not going to be used for an extended period (such as a winter period) we recommend that it is carefully folded away and stored in a clean, dry and free from damp location.
- Page 5 Before You Pitch your Awning A few extra details before you pitch your awning for the first time. IMPORTANT We always recommend pitching your awning at least once before you go away, this is to familiarize yourself with your awning and to check that there are no issues with it before you are away on your break.
- Page 6 Page: 6 Snowdon Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Use the instructions on the next few pages to help you pitch your awning. The frame diagram that came with your frame is shown below for easy reference and the main pegging points on your awning are shown on the diagram below.
- Page 7 2 rear legs (9,10,13) and the 4 roof cross poles (7,8) together ready for use. Part 2 a. The snowdon is a one piece awning and as such is very heavy, so we recommend two people doing these steps at all times.
- Page 8 Page: 8 Snowdon Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 4 a. Please note that your awning has an internal triangles at the rear (shown in the image to the right) which helps form a good seal against the...
- Page 9 Page: 9 Snowdon Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 7 a. Take the centre roof pole (11,5,12 - highlighted in blue) and attach the hook to the centre bracket pad, then locate into the front centre spider joint (2) then fit the front centre leg pole (10,11,2 - highlighted in blue) and tension the roof and leg pole loosely.
- Page 10 Page: 10 Snowdon Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 8 a. Now peg the rear triangles in place as shown in the image to the right. b. The rear triangles are pegged along the side of the vehicle at a 90 degree angle from the side of the awning.
- Page 11 Page: 11 Snowdon Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 9 b. Peg the rest of the awning starting from the rear and moving to the front. These pegging points use the pegging elastics which are shown in the image to the left.
- Page 12 (15,16) for the side brace poles and 2 x (13,14) for the front brace poles. c. The poles are fitted as shown in the diagram above. Depending upon which model of the Snowdon awning you have, you may find that you have pockets along the front and side panels for the bracing poles.
-
Page 13: Warranty
Page: 13 Snowdon Porch Awning instructions Warranty Details of the warranty on your awning. Warranty : 24 Months (2 Years) warranty. Warranty Claim • In the unlikely event of a warranty claim, you must contact your retailer. • If you have not registered your product, first fill out the registration form overleaf and take this with you when you go to your retailer. - Page 14 Page: 14 Snowdon Porch Awning instructions Warranty Details of the warranty on your awning. Warranty Information • This product comes with a full 24 month manufacturers defect warranty and covers any manufacturers defects for two (2) years from the date of the original purchase. It does not cover any damage occurred though: •...
- Page 15 Your Name* Your Email Address* Postcode* County Awning Name Quest Elite Premium Poled Snowdon Porch Awning Purchase date* Batch Number Detail Details* All fields marked with a * are required. Your batch number can be found on the label inside the awning and printed on the side of the box.
- Page 16 www.questleisure.com twitter.com/questleisure facebook.com/questleisure youtube.com/questleisure Template Version : 4 • Instruction Version : 1...
