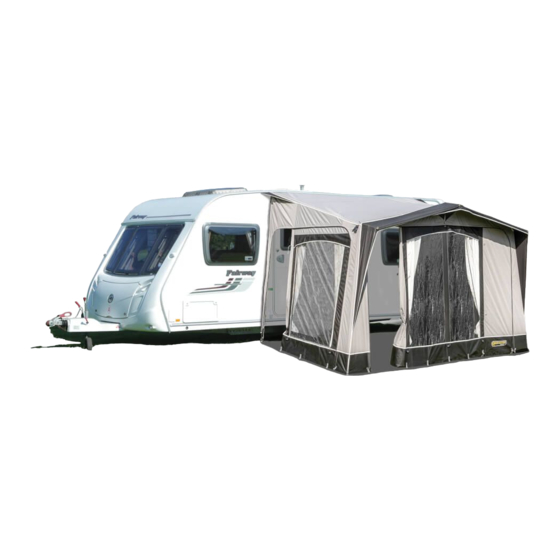

- Page 1 Kensington Kensington Porch Awning • Full item instructions and extended details •...
-
Page 2: General Information
Page: 2 Kensington Porch Awning instructions Thank you for purchasing this product. At Quest we take every care to ensure that the product fulfils your expectations. We hope you enjoy using this product General Information There are many different ways to erect your awing. We recommend using the method listed on the next page, but if you find a different way that works better for you, then that is perfectly fine as well. - Page 3 Page: 3 Kensington Porch Awning instructions Storage , Care and Cleaning Details on how to look after your awning. Canvas Seams • The main seams of this awning are taped to ensure water protection. These can become damaged over time but can be repaired and re-sealed by using seam sealer.
- Page 4 Page: 4 Kensington Porch Awning instructions Storage , Care and Cleaning Details on how to look after your product. Storage To help keep your product looking newer for longer and prolong the life and use of the product, we recommend that the product is always kept inside its bag when stored away. If the product is not going to be used for an extended period (such as a winter period) we recommend that it is carefully folded away and stored in a clean, dry and free from damp location.
- Page 5 Before You Pitch your Awning A few extra details before you pitch your awning for the first time. IMPORTANT We always recommend pitching your awning at least once before you go away, this is to familiarize yourself with your awning and to check that there are no issues with it before you are away on your break.
- Page 6 Page: 6 Kensington Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Use the instructions on the next few pages to help you pitch your awning. The frame diagram that came with your frame is shown below for easy reference and the main pegging points on your awning are shown on the diagram below.
- Page 7 Page: 7 Kensington Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 1 a. Take the awning canvas and frame and lay them on the ground next to your caravan using a protective sheet.
- Page 8 Page: 8 Kensington Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 4 a. Please note that your awning has an internal triangles at the rear (shown in the image to the right) which helps form a good seal against the...
- Page 9 Page: 9 Kensington Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 7 a. Take the centre roof pole (8,9,10 - highlighted in blue) and attach the hook to the centre bracket pad, then locate into the front centre spider joint (4) locating the spike though the eyelet in the awning roof.
- Page 10 Page: 10 Kensington Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 8 a. Zip the front and side panels into the awning as highlighted in the image to the right. Place the bottom of the front centre leg pole into...
- Page 11 Page: 11 Kensington Porch Awning instructions Pitching your Awning Details on how to erect and pitch your awning. Part 10 a. Peg the remaining two corners of the awning (as shown by number 3 on the image to the left)
-
Page 12: Warranty Claim
Page: 12 Kensington Porch Awning instructions Warranty Details of the warranty on your awning. Warranty : 24 Months (2 Years) warranty. Warranty Claim • In the unlikely event of a warranty claim, you must contact your retailer. • If you have not registered your product, first fill out the registration form overleaf and take this with you when you go to your retailer. - Page 13 Your Name* Your Email Address* Postcode* County Awning Name Quest Elite Premium Poled Kensington Porch Awning Purchase date* Batch Number Detail Details* All fields marked with a * are required. Your batch number can be found on the label inside the awning and printed on the side of the box.
- Page 14 www.questleisure.com twitter.com/questleisure facebook.com/questleisure youtube.com/questleisure Template Version : 4 • Instruction Version : 1...
