Catalog Number:
OVERVIEW

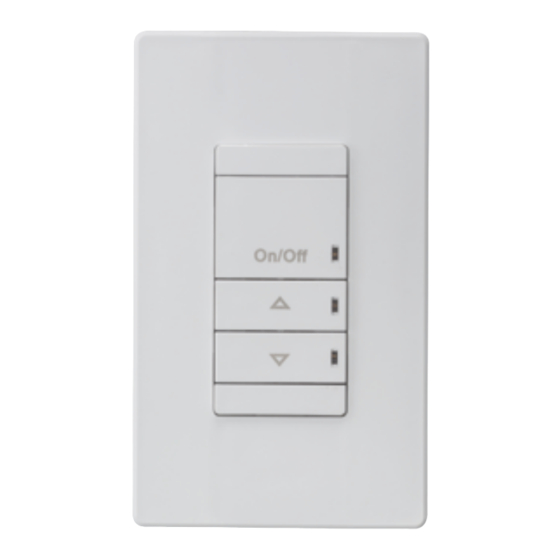

The Push-Button Wall Switch (sPODMA) Series of low voltage wall stations interface with
standard Sensor Switch occupancy sensors and power packs in order to implement a wide range
of single and bi-level switching applications. These switch devices provide an elegant and cost
effective way of deploying bi-level lighting control that meet energy and building codes without
having to source special sensors or power packs.
FEATURES
Enables Standard Occupancy Sensors to be used for Manual On Operation
Alternative Usage as Override Switch for Auto-On Applications
Single Gang Decorator Style w/ either 1 or 2 On/Off Switches
Soft-Click Push-Buttons
Programmable w/o Removing Switch Plate
Optional Dual Manual On Operation
Optional Multi-way Operation
Optional 0-10 VDC Dimming Control
Auto return to last set level - on dimmable devices, returns to last set dim level before switched off
Warranty
Five-year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/support/customer-support/terms-and-conditions
Note: Actual performance may differ as a result of end-user environment and application.
Specifications subject to change without notice
sPODMA
Series
Dimming
sPODMA Wall Switch
[blank]
D
1
Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitybrands.com/sensorswitch
© 2020 Acuity Brands Lighting, Inc. All rights reserved. Rev. 09/16/20
ORDERING INFORMATION
# of Switches/Default on Oper.
None
[blank]
1 Switch / Auto On
Dimming
SA
1 Switch/ Manual On
Operation
2P
2 Switches (Pole 1
Manual / Pole 2 Auto)
2P 2SA
2 Switches (Both Poles
Manual)
Date:
Project:
Multi-Way
[blank]
None
3X
Multi-Way
1
(e.g. 3-way)
sPODMA
Wall Swtich
sPODMA D
Example: sPODMA 347
Color
Temperature / Humidity
2
WH
White
[blank]
Standard
IV
Ivory
LT
Low Temp
GY
Gray
AL
Lt. Almond
BK
Black
RD
Red
Notes
1 Not available with 2 Pole (2P) option.
2 Matching wall plate provided for 120-277 VAC units.
SPODMA
1 of 3
